4-58
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13
14

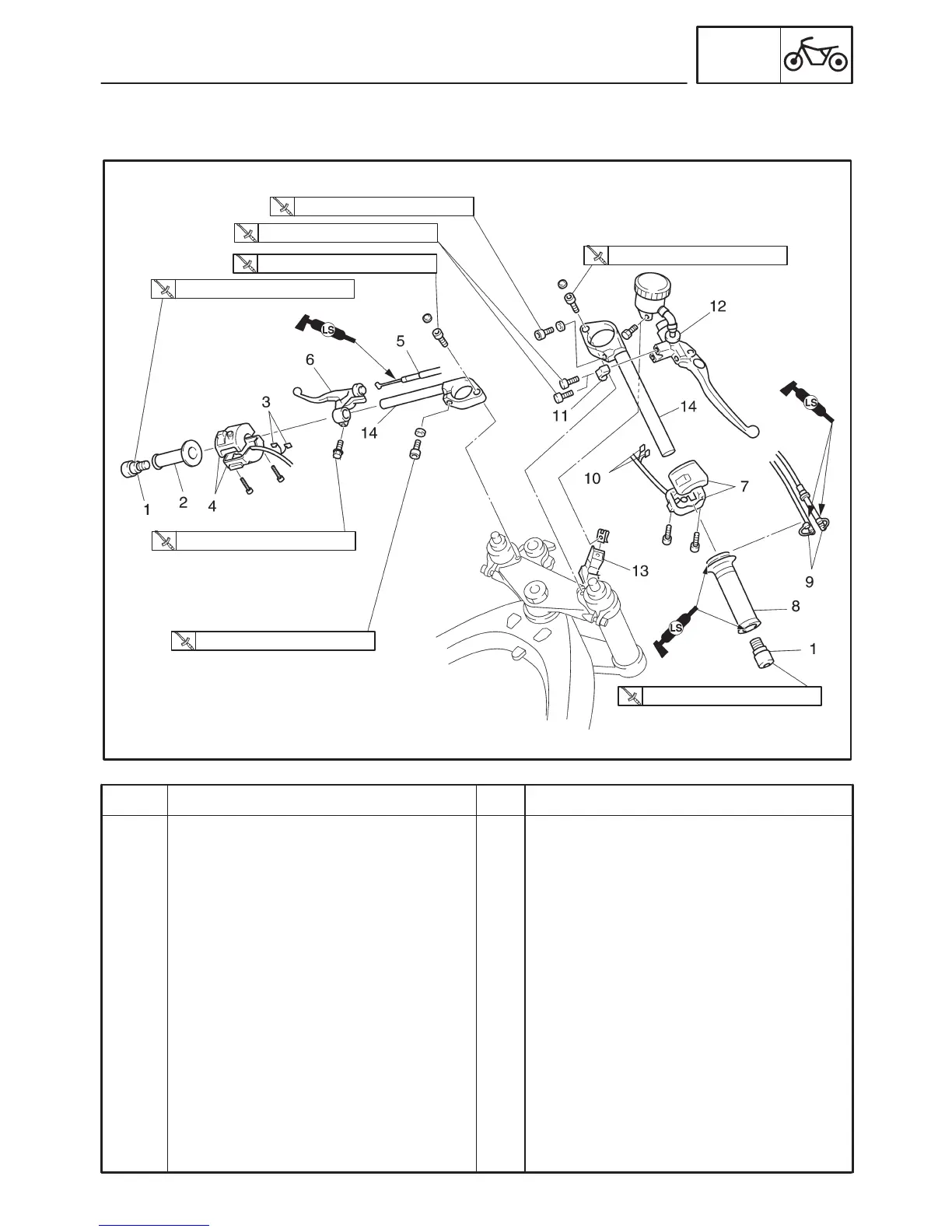

Removing the handlebars
Grip end
Handlebar grip
Clutch switch connector
Left handlebar switch
Clutch cable
Clutch lever
Right handlebar switch
Throttle grip
Throttle cables
Front brake light switch connector
Front brake master cylinder holder
Front brake master cylinder
Reservoir tank bracket
Handlebar
2
1
1
1
1
1
1
1
2
2
1
1
1
2
Remove the parts in the order listed.
Disconnect.
Disconnect.
For installation, reverse the removal
procedure.
33 Nm (3.3 mSkg, 24 ftSlb)
13 Nm (1.3 mSkg, 9.4 ftSlb)
13 Nm (1.3 mSkg, 9.4 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
11 Nm (1.1 mSkg, 8.0 ftSlb)
33 Nm (3.3 mSkg, 24 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
13 Nm (1.3 mSkg, 9.4 ftSlb)
HANDLEBARS
CHAS
EAS00665
HANDLEBARS
To Next Page
