SWINGARM AND DRIVE CHAIN
CHAS
WARNING
NOTE:
WARNING
EAS00704
REMOVING THE DRIVE CHAIN
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the rear wheel is elevated.
2. Remove:
S drive chain (with the drive chain cutter)
EAS00707

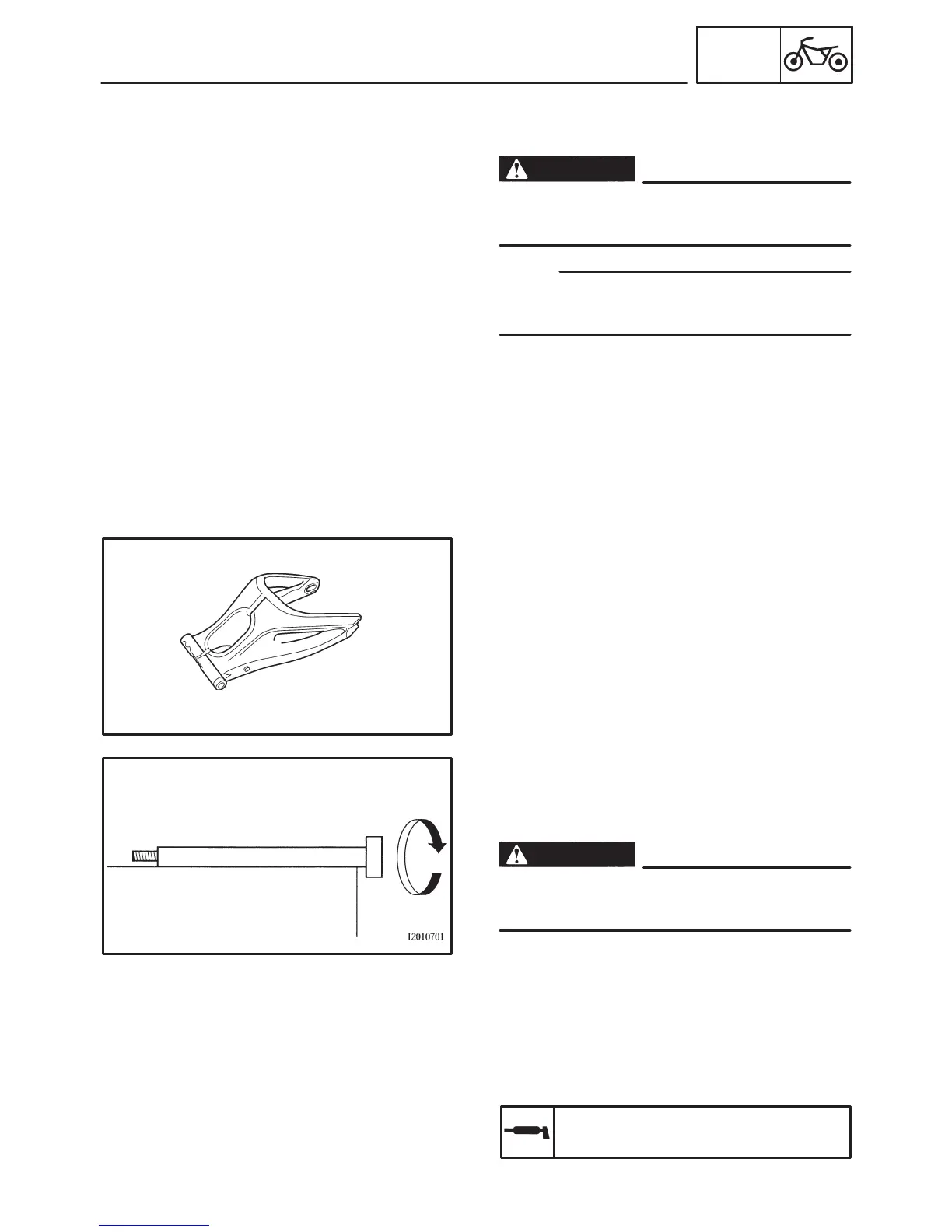

CHECKING THE SWINGARM
1. Check:
S swingarm
Bends/cracks/damage ! Replace.
2. Check:
S pivot shaft
Roll the pivot shaft on a flat surface.
Bends ! Replace.
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
S pivot shaft
S dust covers
S spacer
S washers
S bearings
Recommended cleaning solvent
Kerosene
To Next Page
