CHAS
24
EAS00514
CHASSIS

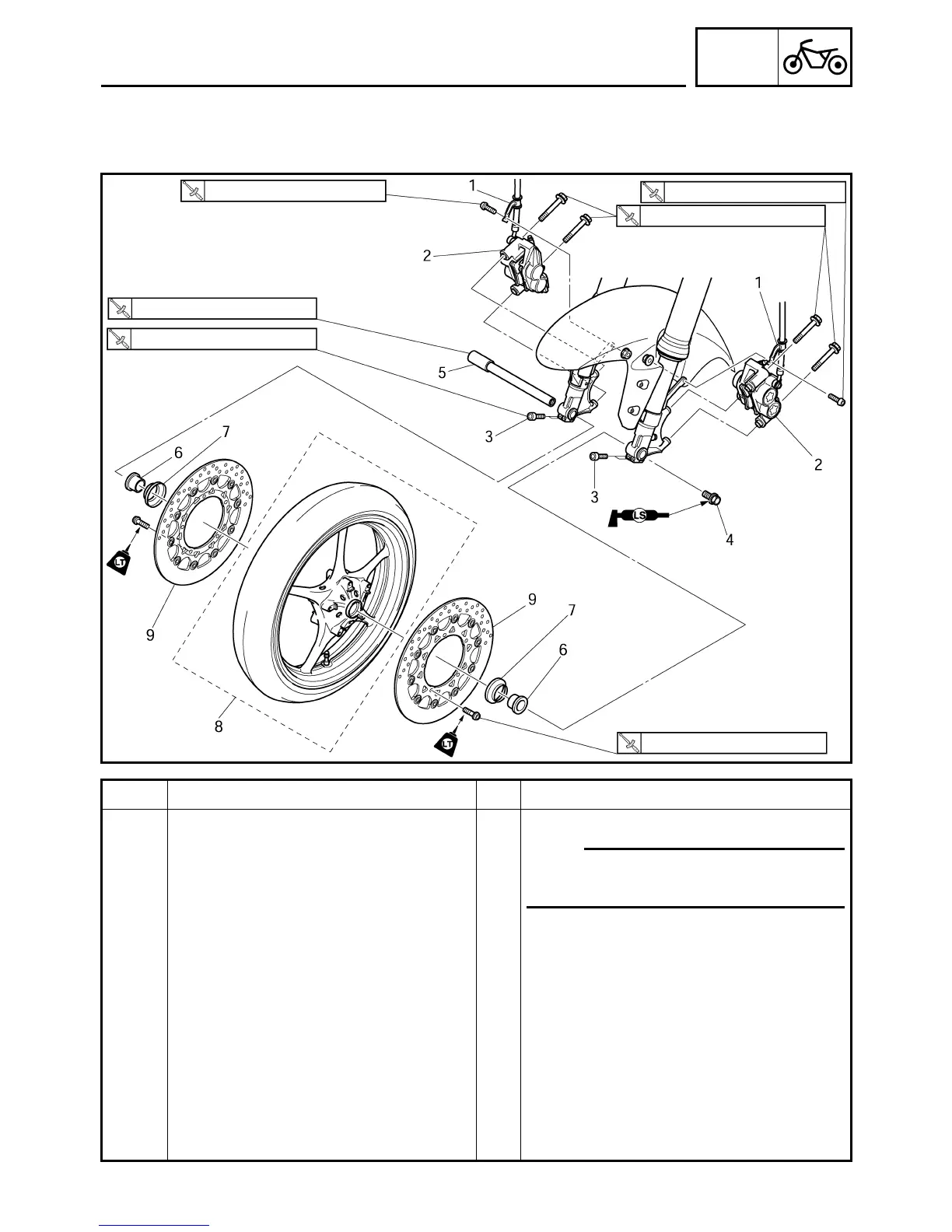

FRONT WHEEL AND BRAKE DISCS
Order Job / Part Q’ty Remarks
Removing the front wheel and brake
discs
Remove the parts in the order listed.
N
TE:
Place the motorcycle on a suitable stand
so that the front wheel is elevated.
1 Brake hose holder (left and right) 2
2 Front brake caliper (left and right) 2
3 Front wheel axle pinch bolt 4 Loosen.
4 Front wheel axle bolt 1
5 Front wheel axle 1
6 Collar (left and right) 2
7 Oil seal cover (left and right) 2
8 Front wheel 1
9 Front brake disc (left and right) 2
For installation, reverse the removal
procedure.
21 Nm (2.1 m•kg, 15 ft•lb)
6 Nm (0.6 m•kg, 4.3 ft•lb)
91 Nm (9.1 m•kg, 66 ft•lb)
35 Nm (3.5 m•kg, 25 ft•lb)
18 Nm (1.8 m•kg, 13 ft•lb)
6 Nm (0.6 m•kg, 4.3 ft•lb)
FRONT WHEEL AND BRAKE DISCS
