4-9
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10

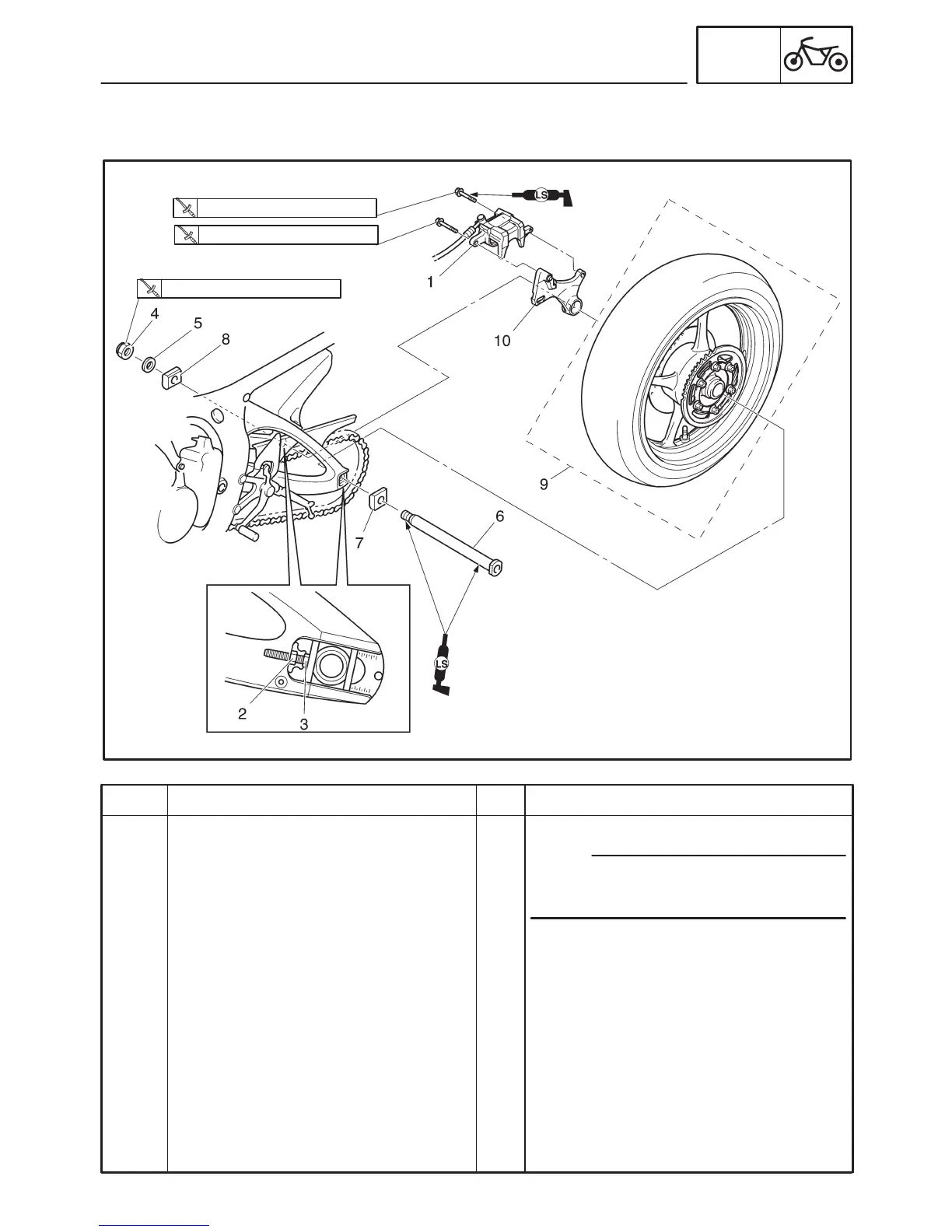

Removing the rear wheel
Rear brake caliper
Locknut (left and right)
Adjusting bolt (left and right)
Wheel axle nut
Washer
Rear wheel axle
Left adjusting block
Right adjusting block
Rear wheel
Rear brake caliper bracket
1
2
2
1
1
1
1
1
1
1
Remove the parts in the order listed.
Place the motorcycle on a suitable stand
so that the rear wheel is elevated.
Loosen.
Loosen.
For installation, reverse the removal
procedure.
NOTE:
110 Nm (11 mSkg, 80 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
28 Nm (2.8 mSkg, 20 ftSlb)
REAR WHEEL AND BRAKE DISC
CHAS
EAS00551
REAR WHEEL AND BRAKE DISC
REAR WHEEL
To Next Page
