5-8
Order Job/Part Q’ty Remarks
1
2
3
4
5
6

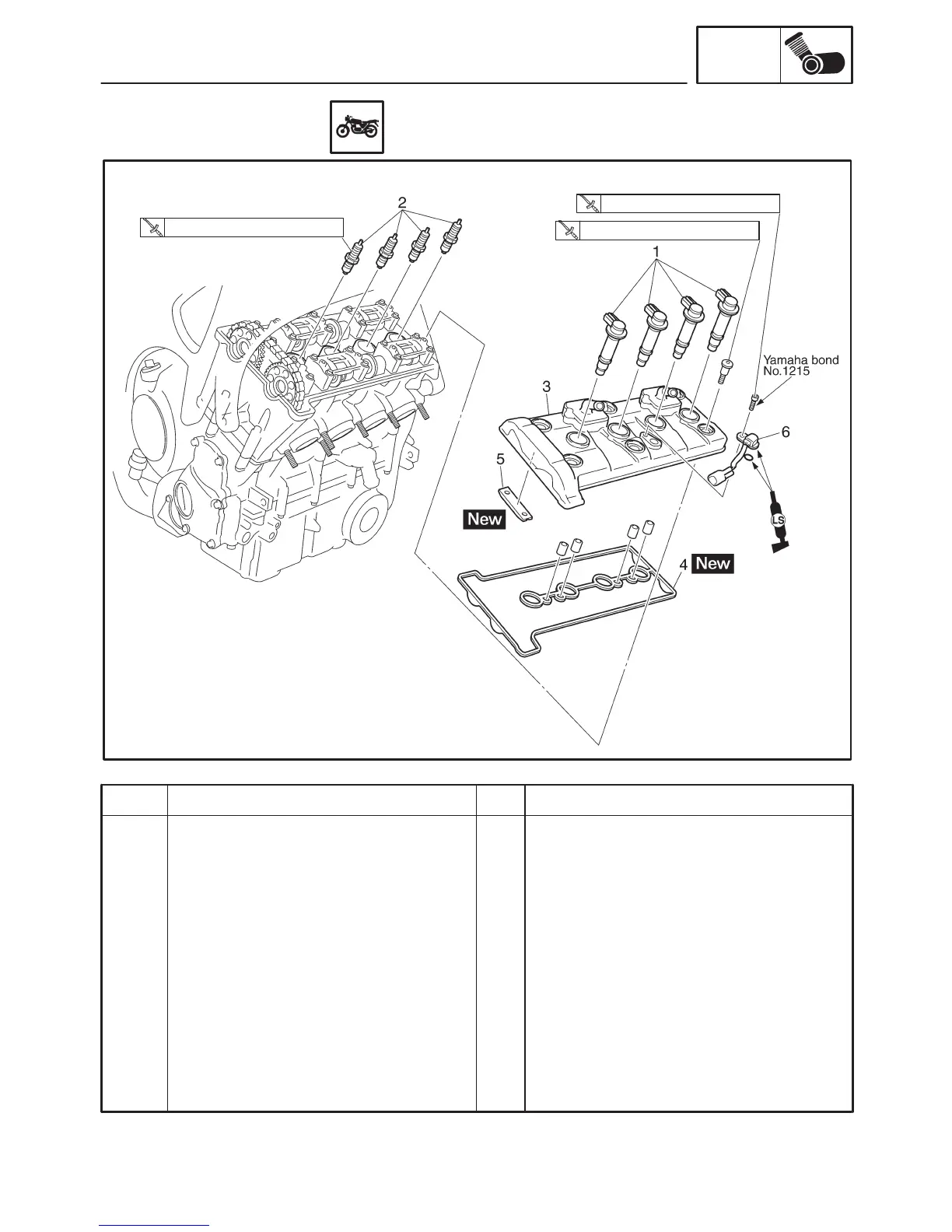

Removing the cylinder head cover
Throttle body assembly
Radiator assembly
Air cut-off valve
Ignition coil
Spark plug
Cylinder head cover
Cylinder head cover gasket
Timing chain guide (top side)
Cylinder identification sensor
4
4
1
1
1
1
Remove the parts in the order listed.
Refer to “THROTTLE BODIES” in
chapter 7.
Refer to “RADIATOR” in chapter 6.
Refer to “AIR INDUCTION SYSTEM” in
chapter 7.
For installation, reverse the removal
procedure.
13 Nm (1.3 mSkg, 9.4 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
CAMSHAFTS
ENG
EAS00194
CAMSHAFTS
CYLINDER HEAD COVER
To Next Page
