5-7
ENGINE
ENG
45 Nm (4.5 mSkg, 33 ftSlb)
NOTE:
45 Nm (4.5 mSkg, 33 ftSlb)
NOTE:
10 Nm (1.0 mSkg, 7.2 ftSlb)
NOTE:
7 Nm (0.7 mSkg, 5.1 ftSlb)
Pivot shaft wrench
90890-01471, YM-01471
Pivot shaft wrench adapter
90890-01476

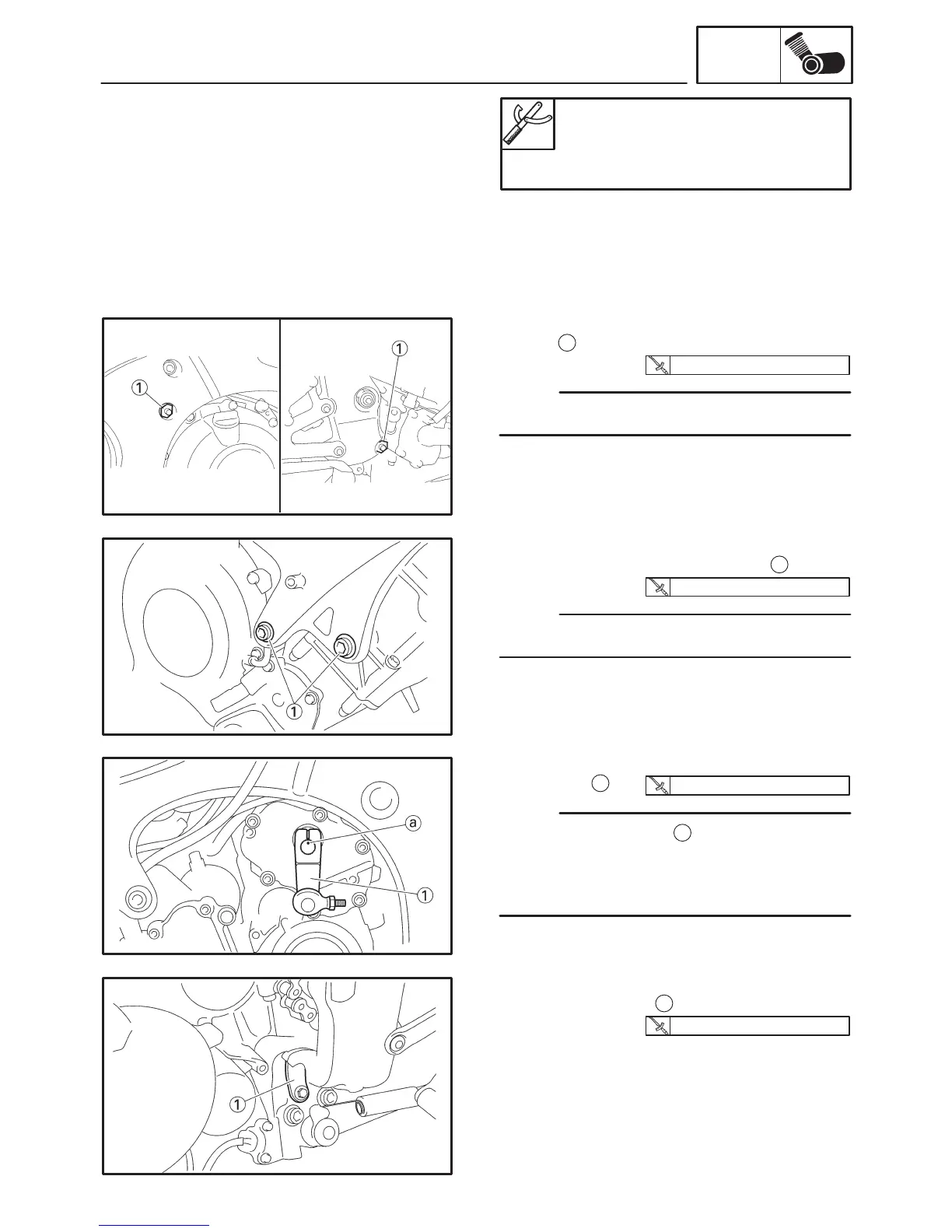

5. Tighten:
S nuts
1
(rear engine mounting bolts)
First tighten the lower self-locking nut.
6. Tighten:
S right front engine mounting bolts
1
First tighten the rear side engine mounting bolt.
7. Install:
S shift arm
1
S Align the punch mark
a
in the shift shaft with
the slot in the shift arm.
S Align the bottom edge of the shift pedal with the
mark on the frame-to-swingarm bracket.
8. Install:
S drive chain guide
1
To Next Page
