4-21
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
EAS00583

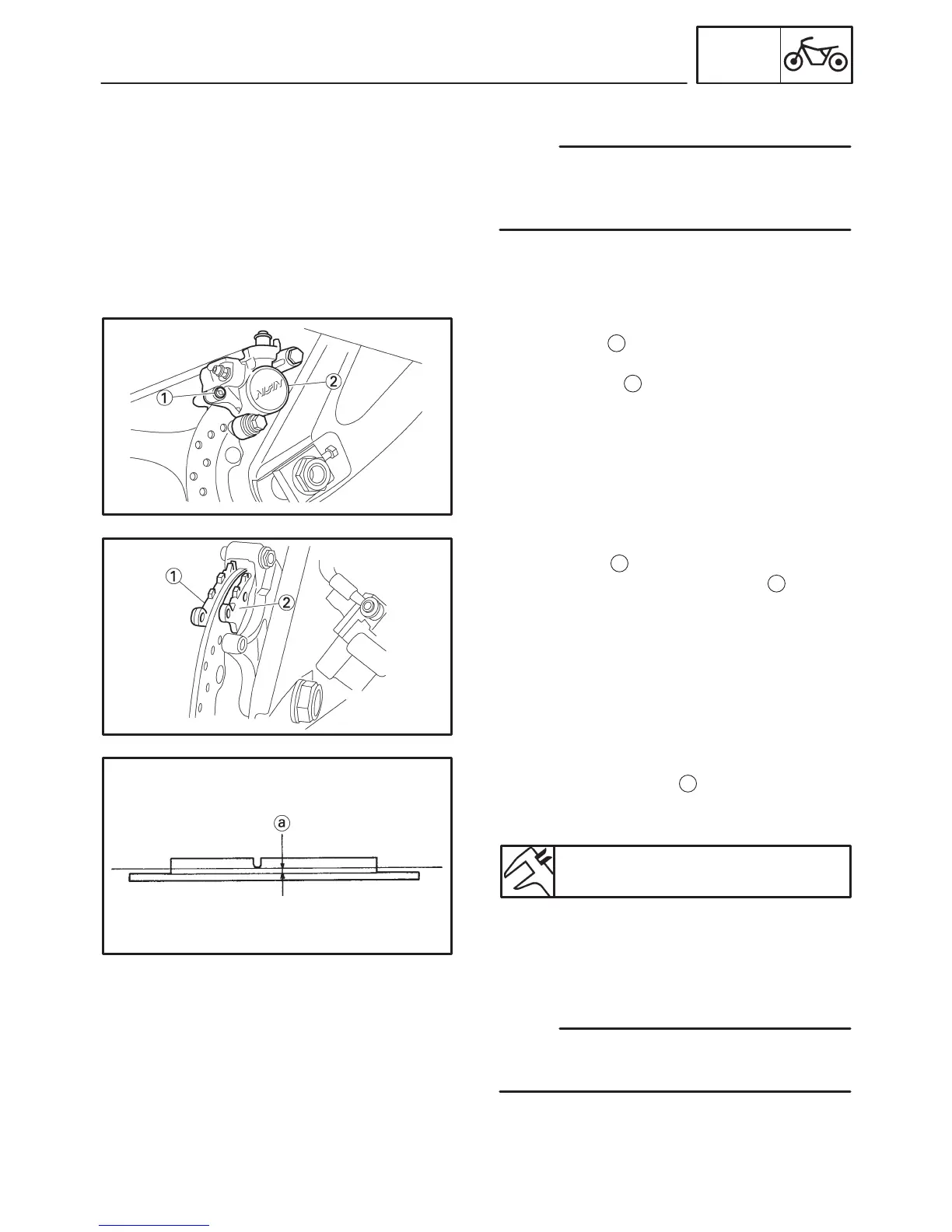

REPLACING THE REAR BRAKE PADS
When replacing the brake pads, it is not neces-
sary to disconnect the brake hose or disas-
semble the brake caliper.
1. Remove:
S screw plug
1
S brake pad pin
S brake caliper
2
2. Remove:
S brake pad spring
3. Remove:
S brake pads
1
(along with the brake pad shims
2
)
4. Measure:
S brake pad wear limit
a
Out of specification ! Replace the brake
pads as a set.
Brake pad wear limit
1.0 mm (0.04 in)
5. Install:
S brake pad shims
(onto the brake pads)
S brake pads
S brake pad spring
Always install new brake pads, brake pad
shims, and a brake pad spring as a set.
To Next Page
