CHAS
26
EAS00584

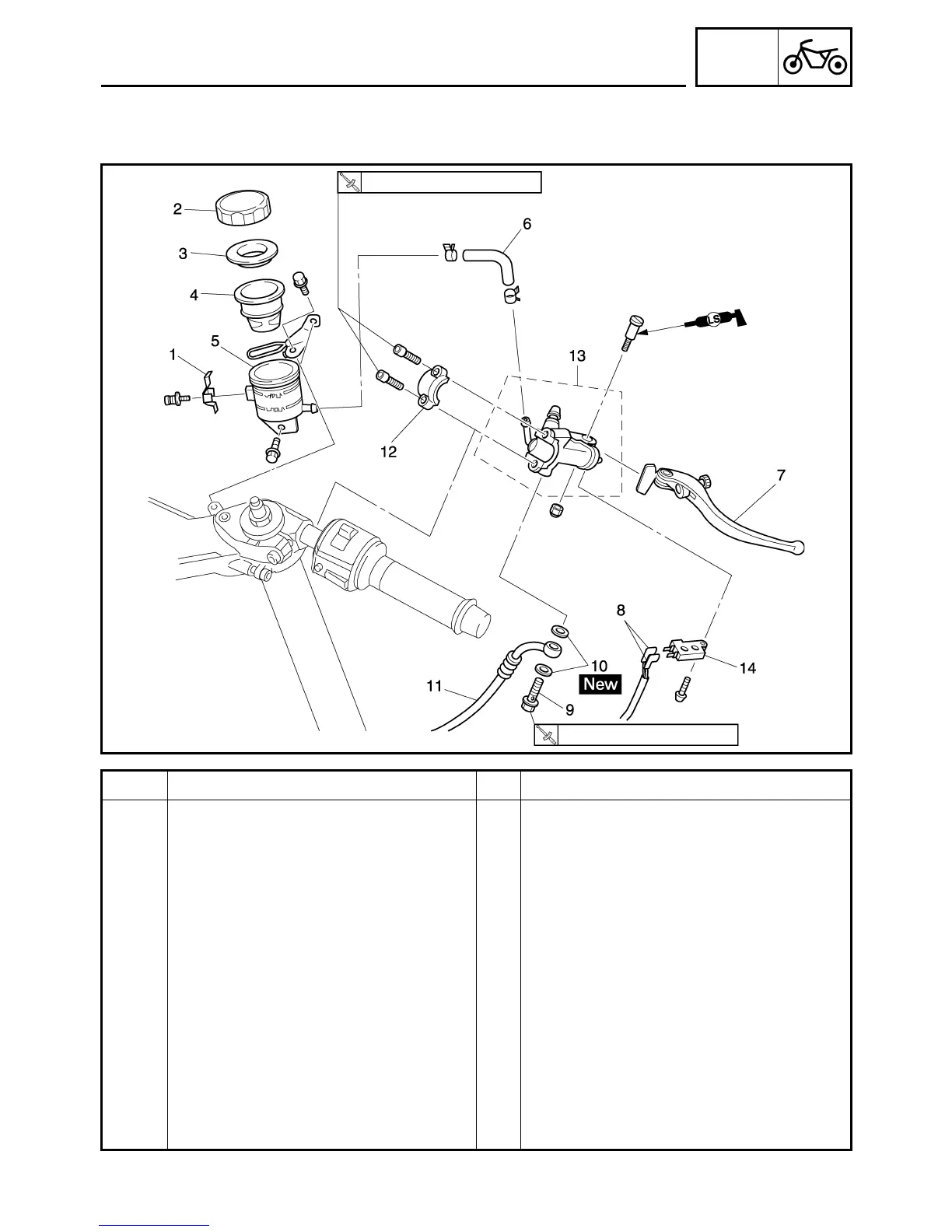

FRONT BRAKE MASTER CYLINDER
Order Job / Part Q’ty Remarks
Removin
g the front brake master
cylinder
Remove the parts in the order listed.
Drain.
Refer to “CHANGING THE BRAKE
FLUID” in chapter 3.
Brake fluid
1 Stopper 1
2 Brake fluid reservoir cap 1
3 Brake fluid reservoir diaphragm holder 1
4 Brake fluid reservoir diaphragm 1
5 Brake fluid reservoir tank 1
6 Brake fluid reservoir hose 1
7Brake lever 1
8 Front brake switch connector 2 Disconnect.
9 Union bolt 1
10 Copper washer 2
11 Brake hose 1
12 Brake master cylinder bracket 1
13 Nm (1.3 m•kg, 9.4 ft•lb)
30 Nm (3.0 m•kg, 22 ft•lb)
FRONT AND REAR BRAKES
To Next Page
