CHAS
43
EAS00709

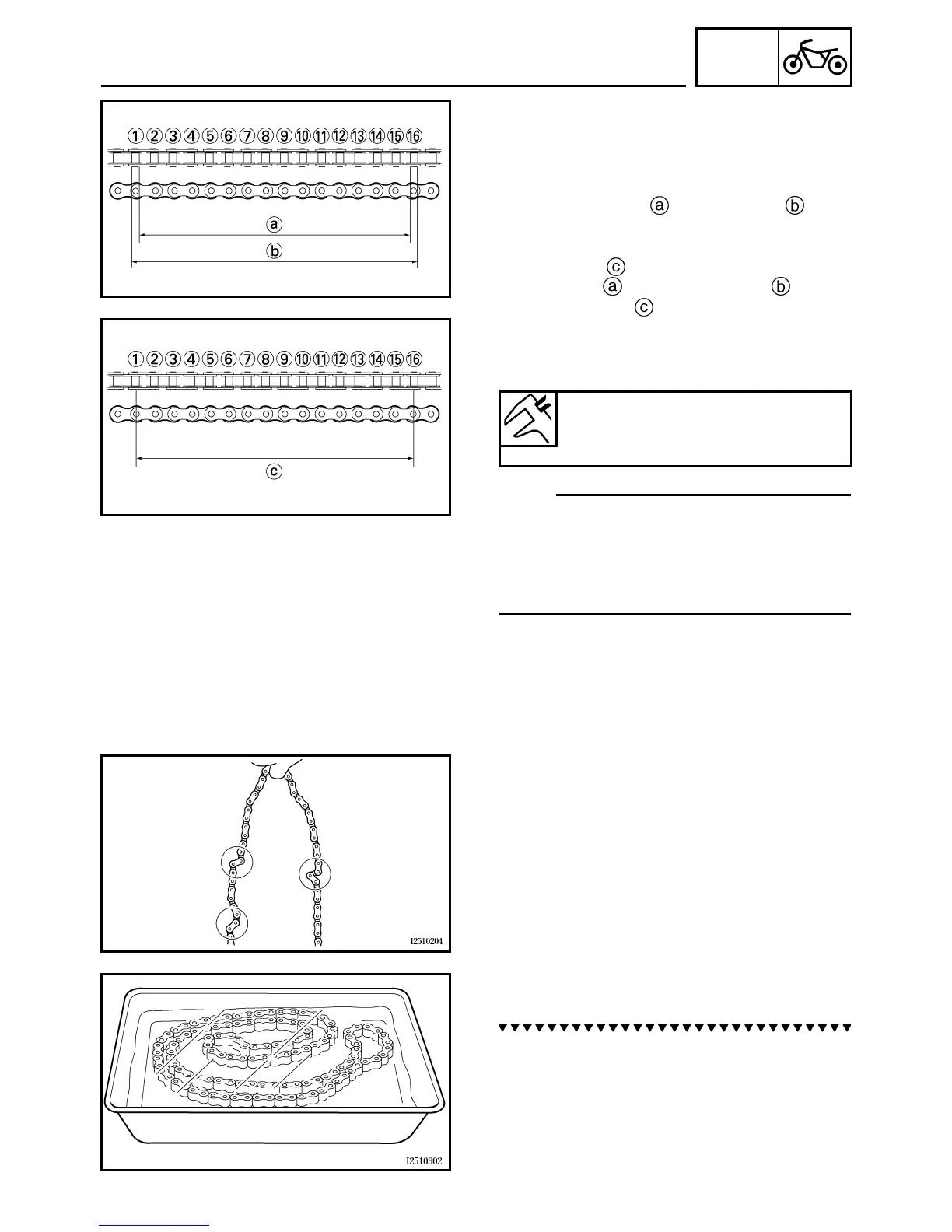

SWINGARM AND DRIVE CHAIN
CHECKING THE DRIVE CHAIN
1. Measure:
• Measure the dimension between 15-links
on the inner side and outer side of the
roller and calculate the dimension between
pin centers.
• Dimension between pin centers = (Inner
dimension + Outer dimension ) / 2
• 15-link section of the drive chain
Out of specification → Replace the drive
chain, front drive sprocket and rear drive
sprocket as a set.
N
O
TE:N
O
TE:
• While measuring the 15-link section, push
down on the drive chain to increase its ten-
sion.
• Perform this measurement at two or three dif-
ferent places.
2. Check:
• drive chain
Stiffness → Clean and lubricate or replace.
3. Clean:
• drive chain
a. Wipe the drive chain with a clean cloth.
b. Put the drive chain in kerosene and remove
any remaining dirt.
c. Remove the drive chain from the kerosene
and completely dry it.
15-link drive chain section limit
(maximum)
239.3 mm (9.42 in)
SWINGARM AND DRIVE CHAIN
