Yamaha YZF-R6T - Rear Shock Absorber Assembly

4-68
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

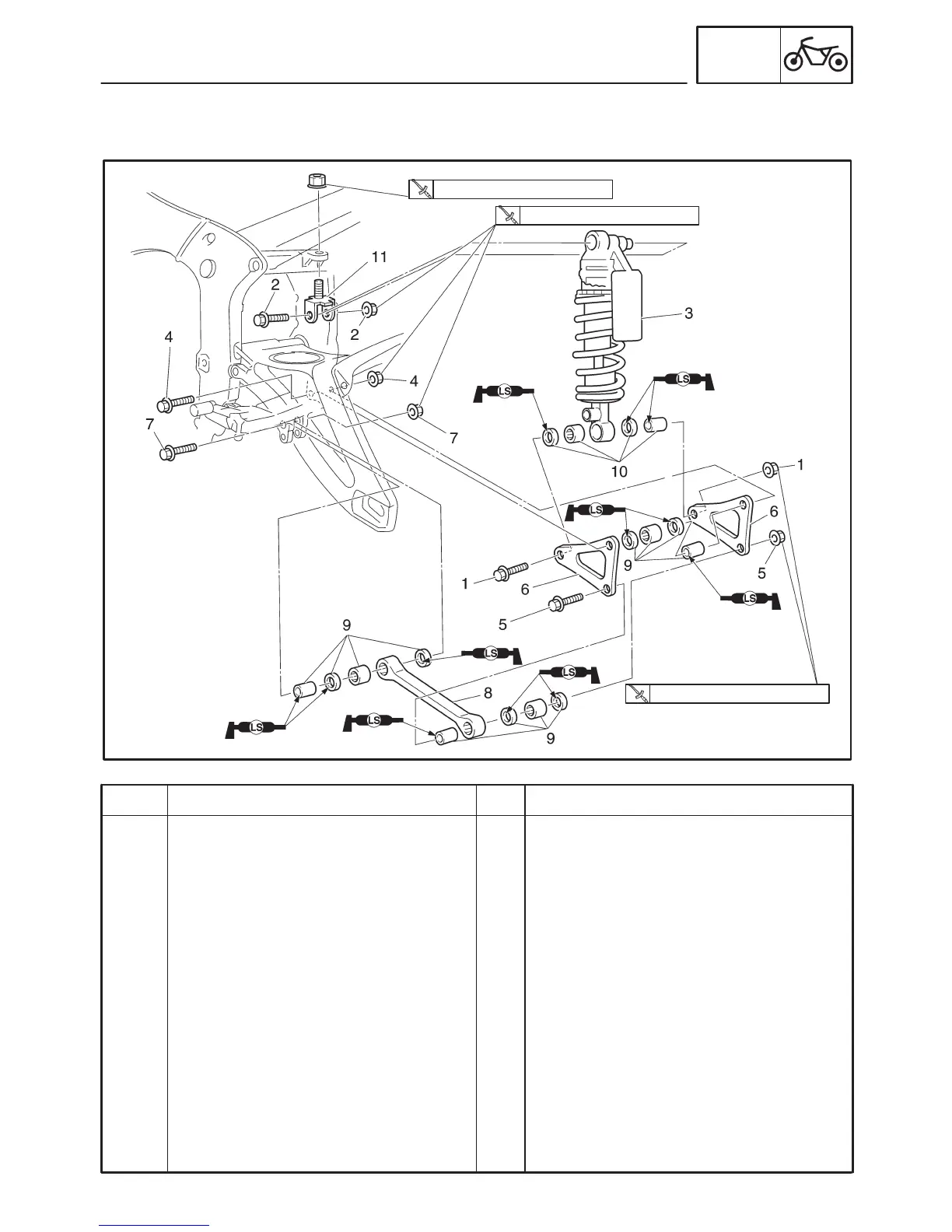

Removing the rear shock absorber
assembly
Rear wheel
Self-locking nut/bolt
(Relay arm – rear shock absorber)
Self-locking nut/bolt
(Rear shock absorber upper)
Rear shock absorber
Self-locking nut/bolt
(Relay arm – swingarm)
Self-locking nut/bolt
(Relay arm – connecting rod)
Relay arm
Self-locking nut/nut
(Connecting rod – frame)
Connecting rod
1/1
1/1
1
1/1
1/1
2
1/1
1
Remove the parts in the order listed.
Refer to “REAR WHEEL AND BRAKE
DISC”.
52 Nm (5.2 mSkg, 38 ftSlb)
44 Nm (4.4 mSkg, 32 ftSlb)
44 Nm (4.4 mSkg, 32 ftSlb)
REAR SHOCK ABSORBER ASSEMBLY
CHAS
EAS00685
REAR SHOCK ABSORBER ASSEMBLY
