Order Job/Part Q’ty Remarks
1
2
3
4
5

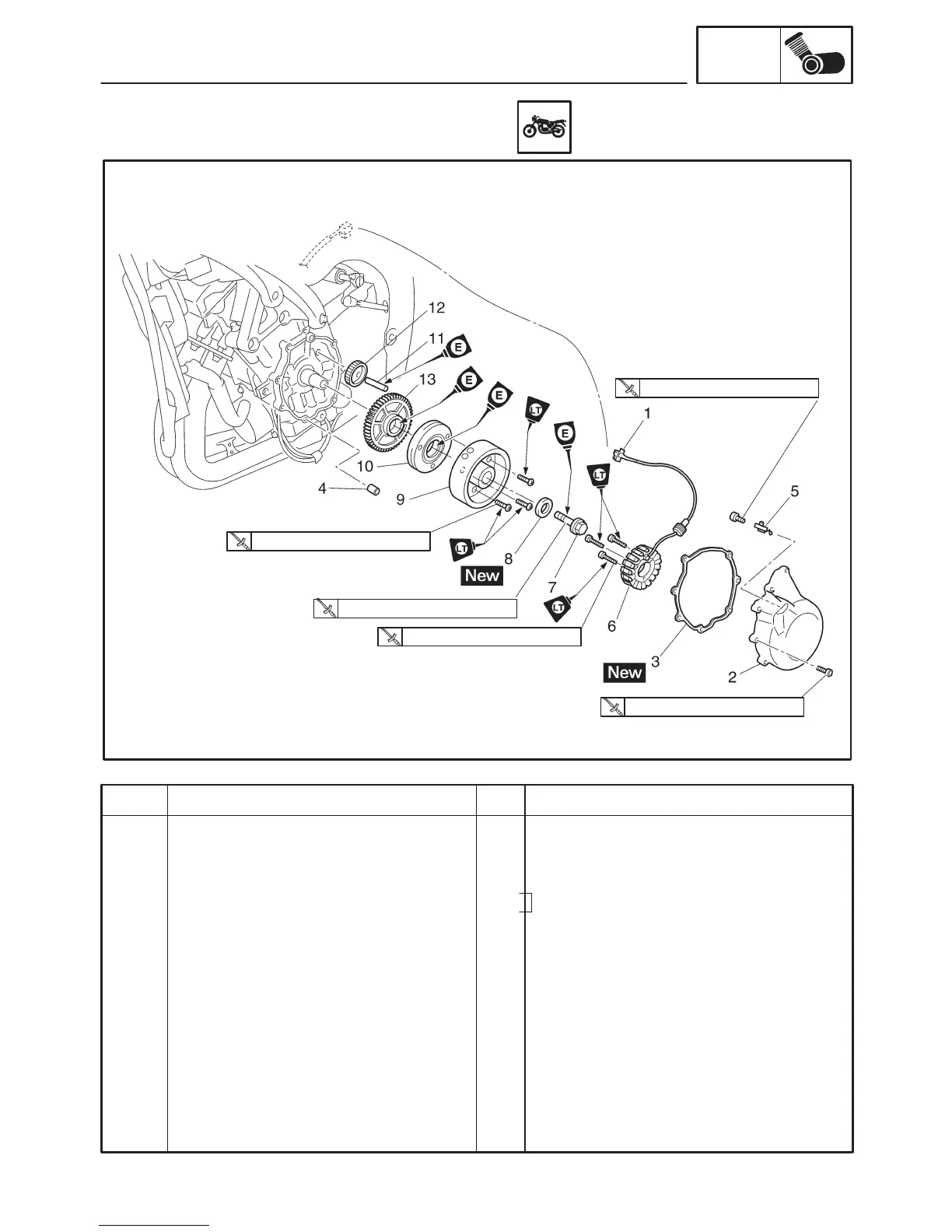

Removing the stator coil assembly
Rider seat and fuel tank
Buttom cowling
Left side cowling
Coolant
Coolant reservoir tank
Engine oil
Stator coil assembly coupler
Generator rotor cover
Generator rotor cover gasket
Dowel pin
Stator coil assembly lead holder
1
1
1
2
1
Remove the parts in the order listed.
Refer to “SEATS” and “FUEL TANK” in
chapter 3.
Drain.
Refer to “CHANGING THE COOLANT” in
chapter 3.
Drain.
Refer to “CHANGING THE ENGINE OIL”
in chapter 3.
Disconnect.
Refer to “COWLINGS” in chapter 3.
32 Nm (3.2 mSkg, 23 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
75 Nm (7.5 mSkg, 54 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
STARTER CLUTCH AND GENERATOR
ENG
EAS00341
STARTER CLUTCH AND GENERATOR
STATOR COIL ASSEMBLY
