4-32
FRONT AND REAR BRAKES
CHAS
30 Nm (3.0 mSkg, 22 ftSlb)
CAUTION:
WARNING

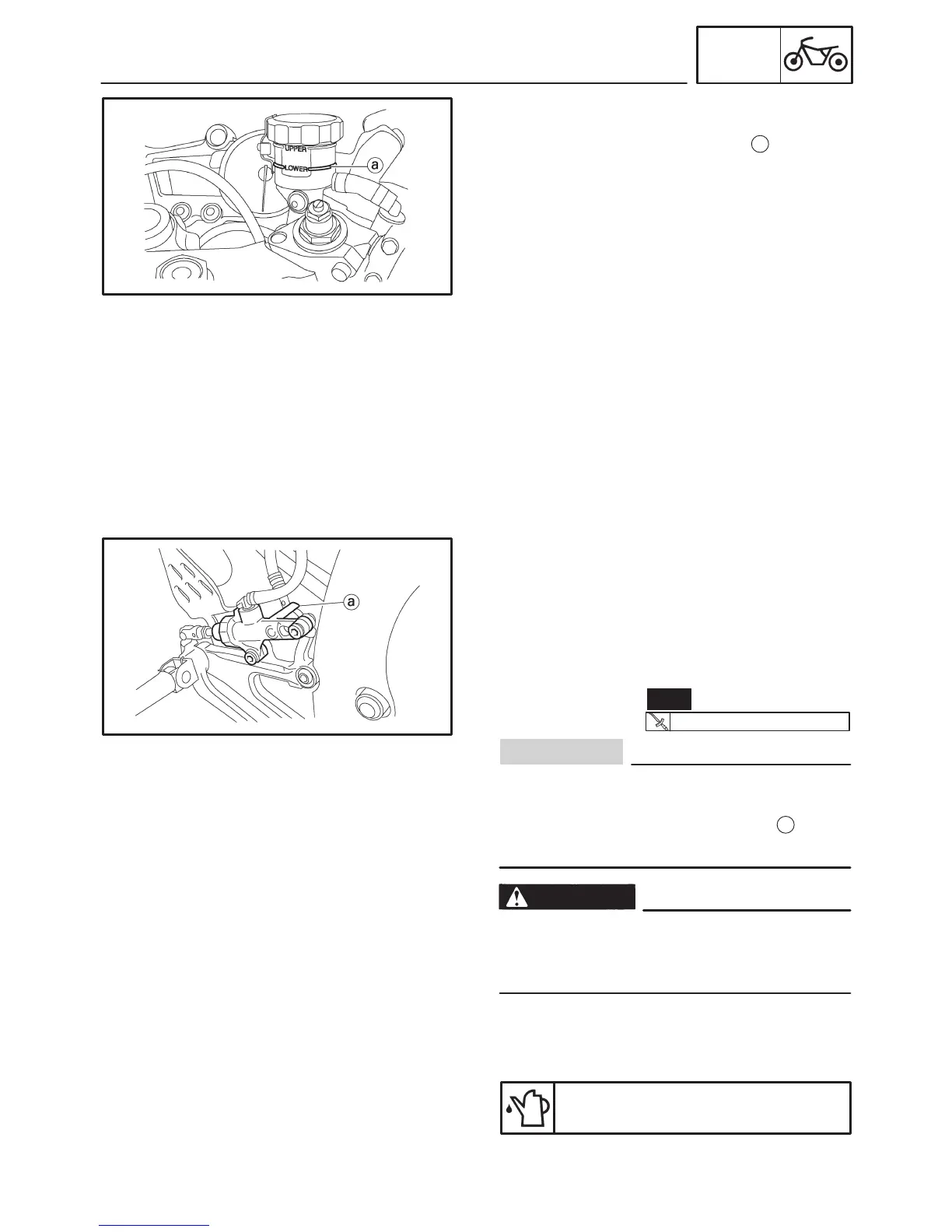

6. Check:
S brake fluid level
Below the minimum level mark
a
! Add the
recommended brake fluid to the proper level.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” in chapter 3.
7. Check:
S brake lever operation
Soft or spongy feeling ! Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” in chapter 3.
EAS00610
ASSEMBLING THE REAR BRAKE MASTER
CYLINDER
1. Install:
S brake master cylinder kit
S circlip
S dust boot
2. Install:
S copper washers
New
S brake hose
When installing the brake hose onto the
brake master cylinder, make sure that the
brake pipe touches the projection
a
on the
brake master cylinder.
Proper brake hose routing is essential to in-
sure safe motorcycle operation. Refer to
“CABLE ROUTING”.
3. Fill:
S brake fluid reservoir
(to the maximum level mark)
Recommended brake fluid
DOT 4
