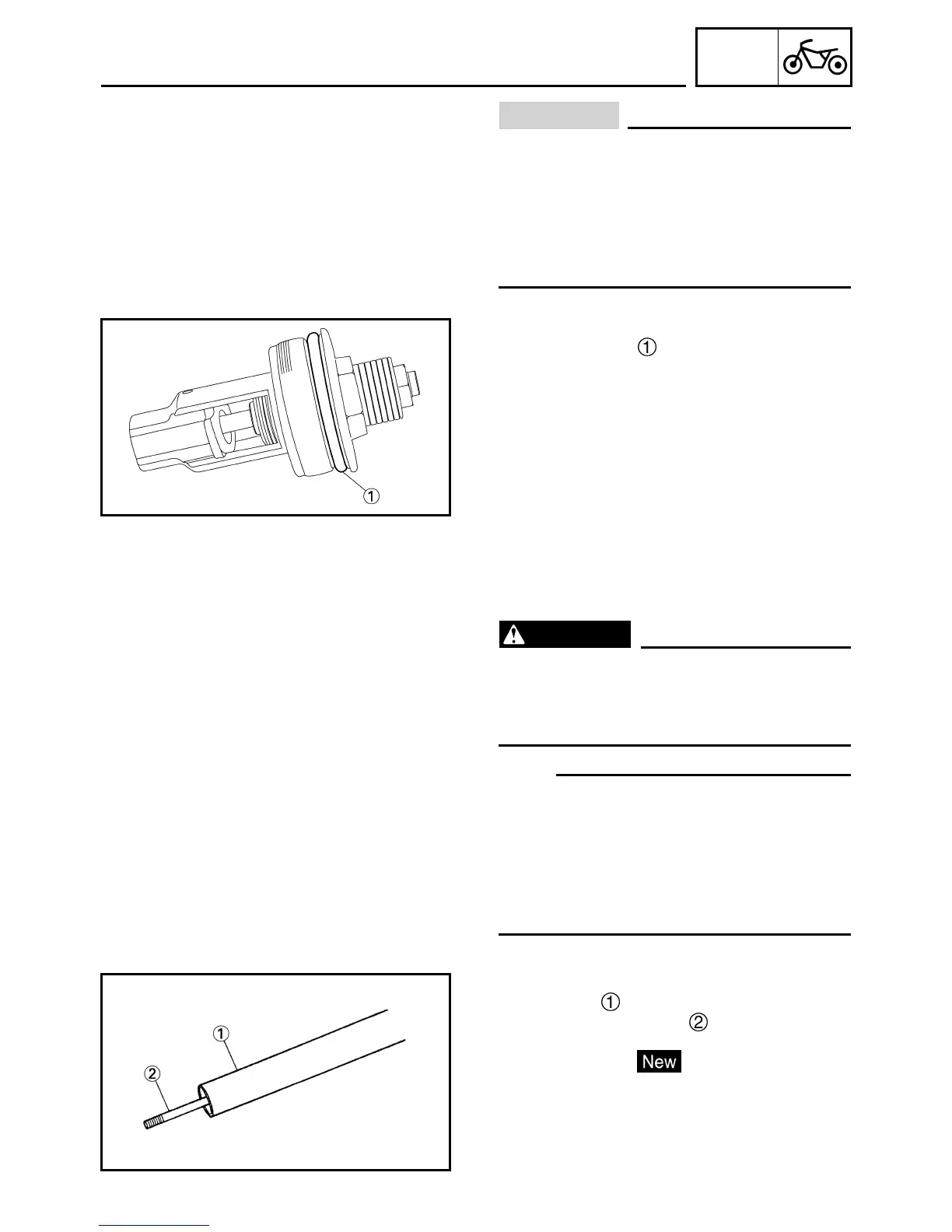

Yamaha YZF-R6T - Assembling the Front Fork Legs

CHAS
38
CAUTION:
• The front fork leg has a built-in damper
adjusting rod and a very sophisticated
internal construction, which are particu-
larly sensitive to foreign material.
• When disassembling and assembling the
front fork leg, do not allow any foreign
material to enter the front fork.
4. Check:
• cap bolt O-ring
Damage / wear → Replace.
EAS00659
ASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
WARNING
• Make sure the oil levels in both front fork
legs are equal.
• Uneven oil levels can result in poor han-
dling and a loss of stability.
N
O
TE:N
O
TE:
• When assembling the front fork leg, be sure
to replace the following parts:
– outer tube bushing
–oil seal
– dust seal
– Before assembling the front fork leg, make
sure all of the components are clean.
1. Install:
• inner tube
• damper rod assembly
• damper rod assembly bolt
• copper washer
FRONT FORK
