CHECKING THE EXHAUST SYSTEM/
CHECKING THE COOLANT LEVEL
CHK
ADJ
NOTE:
EAS00099

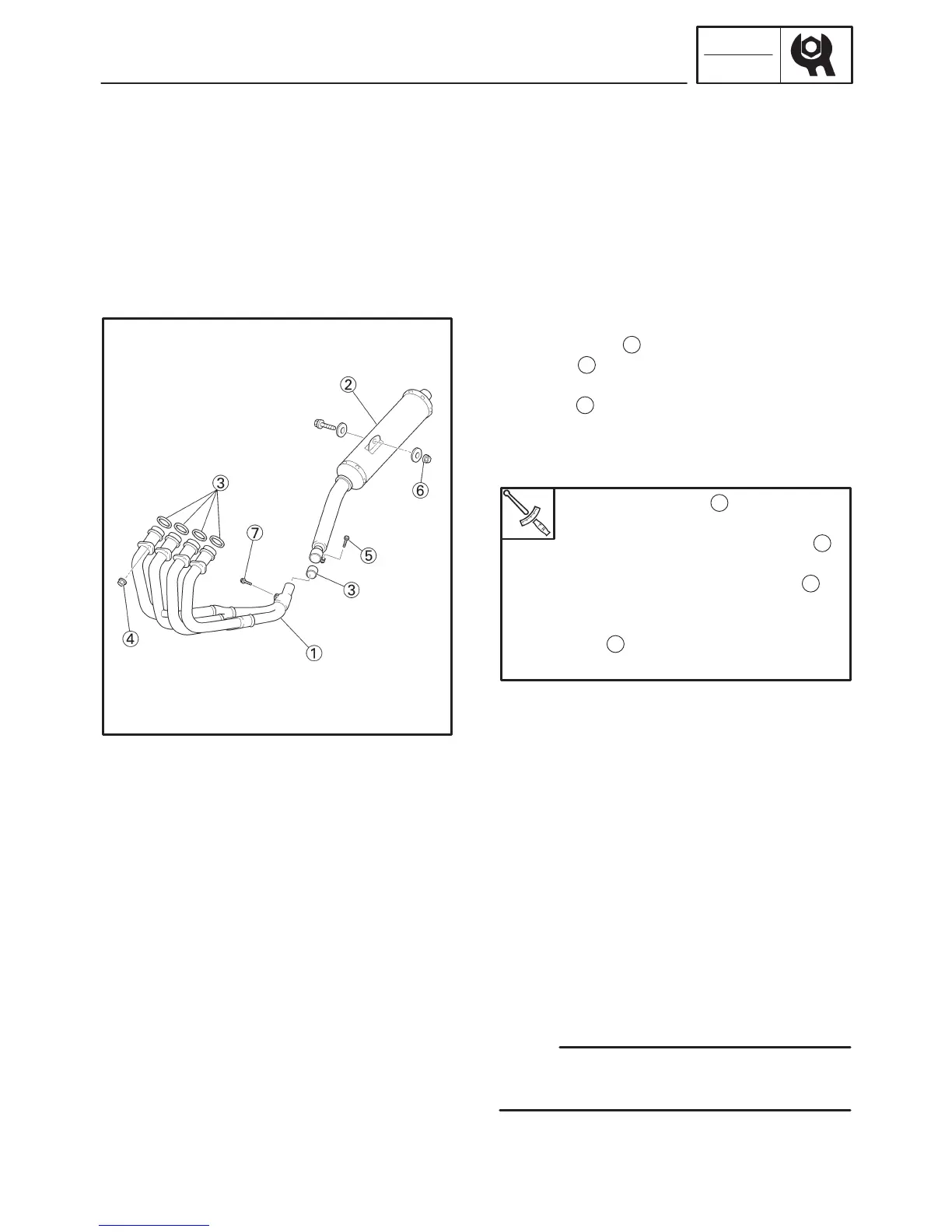

CHECKING THE EXHAUST SYSTEM
The following procedure applies to all of the ex-
haust pipes and gaskets.
1. Remove:
S bottom cowling
Refer to “COWLINGS”.
S radiator
Refer to “RADIATOR” in chapter 6.
2. Check:
S exhaust pipe
1
S muffler
2
Cracks/damage ! Replace.
S gasket
3
Exhaust gas leaks ! Replace.
3. Check:
S tightening torque
Exhaust pipe nut
4
20 Nm (2.0 mSkg, 15 ftSlb)
Exhaust pipe and muffler bolt
5
20 Nm (2.0 mSkg, 15 ftSlb)
Muffler and rear footrest nut
6
23 Nm (2.3 mSkg, 17 ftSlb)
Exhaust pipe and exhaust pipe
stay
7
20 Nm (2.0 mSkg, 15 ftSlb)
4. Install:
S radiator
Refer to “RADIATOR” in chapter 6.
S bottom cowling
Refer to “COWLINGS”.
EAS00102
CHECKING THE COOLANT LEVEL
1. Stand the motorcycle on a level surface.
S Place the motorcycle on a suitable stand.
S Make sure the motorcycle is upright.
