4-36
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4

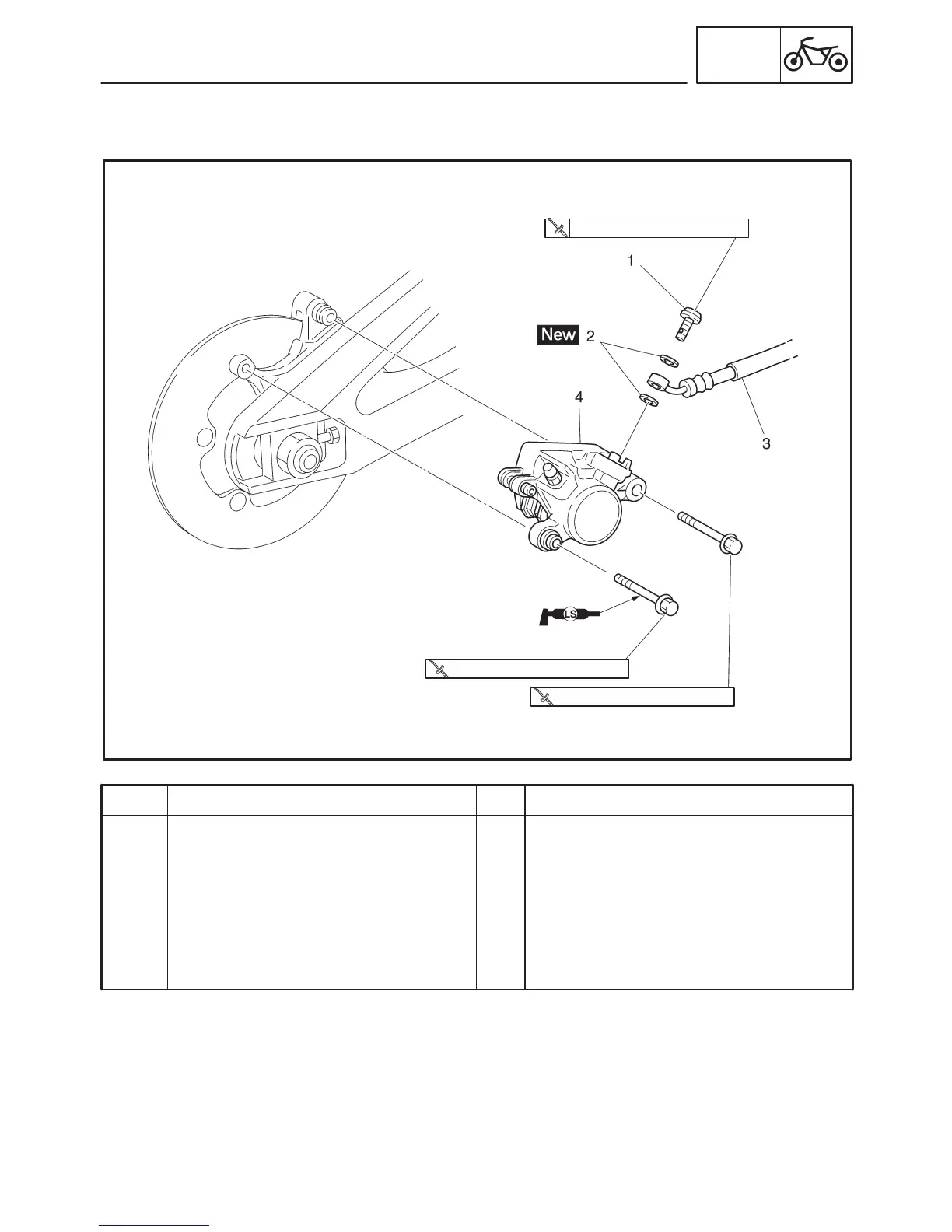

Removing the rear brake caliper
Brake fluid
Union bolt
Copper washer
Brake hose
Brake caliper
1
2
1
1
Remove the parts in the order listed.
Drain.
For installation, reverse the removal
procedure.
30 Nm (3.0 m
S
kg, 22 ft
S
lb)
23 Nm (2.3 m
S
kg, 17 ft
S
lb)
28 Nm (2.8 m
S
kg, 20 ft
S
lb)
FRONT AND REAR BRAKES
CHAS
EAS00616
REAR BRAKE CALIPER
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
285
