4-35
Order
Job
/
Part
Q’ty
Remarks

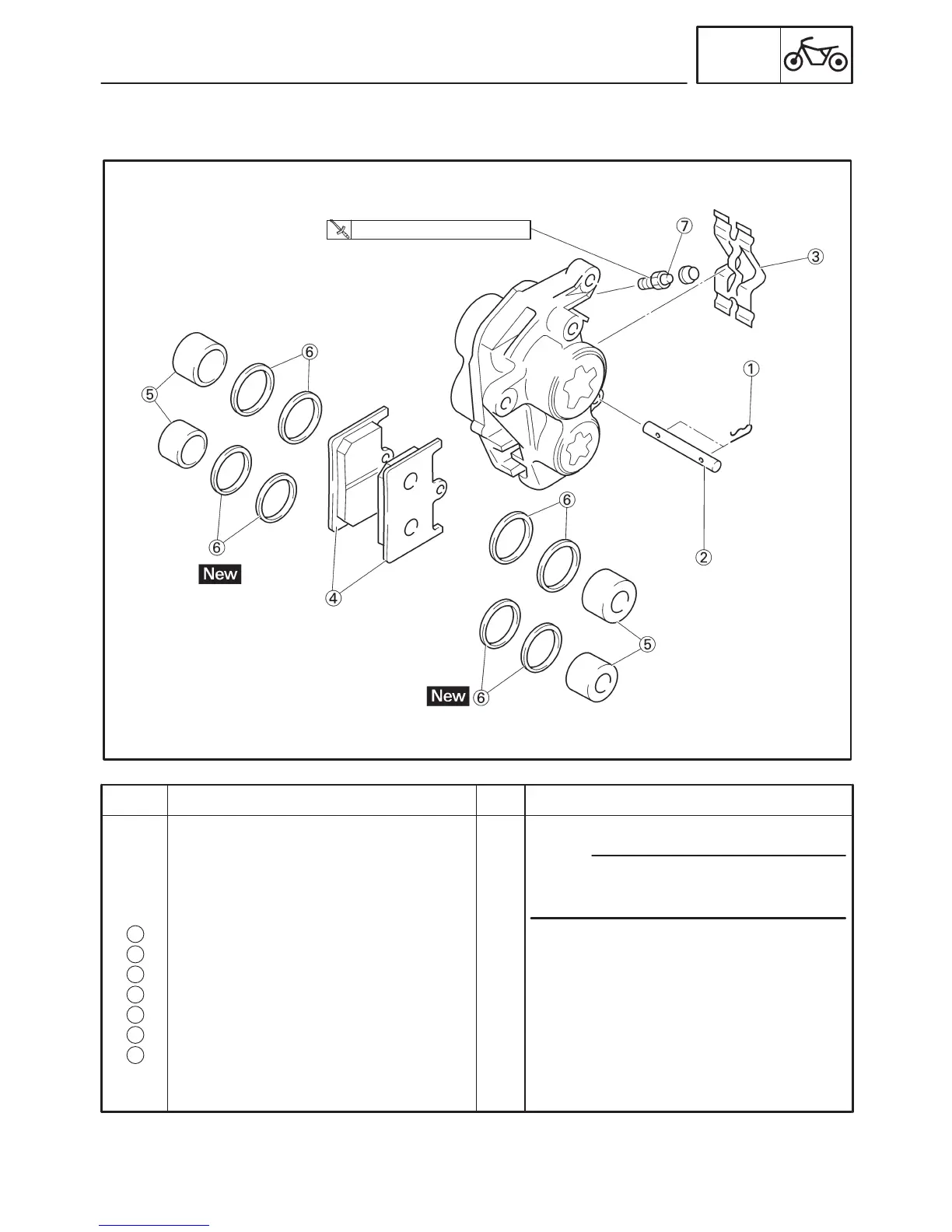

Disassembling the front brake
calipers
Brake pad clip
Brake pad pin
Brake pad spring
Brake pad
Brake caliper piston
Brake caliper piston seal
Bleed screw
2
1
1
2
4
8
1
Disassemble the parts in the order listed.
The following procedure applies to both
of the front brake calipers.
For assembly
, reverse the disassembly
procedure.
NOTE:
1
2
3
4
5
6
7
6 Nm (0.6 m
S
kg, 4.3 ft
S
lb)
FRONT AND REAR BRAKES
CHAS
EAS00615
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
284
