4-45
Order Job/Part Q’ty Remarks
1
2
3
4
5
6

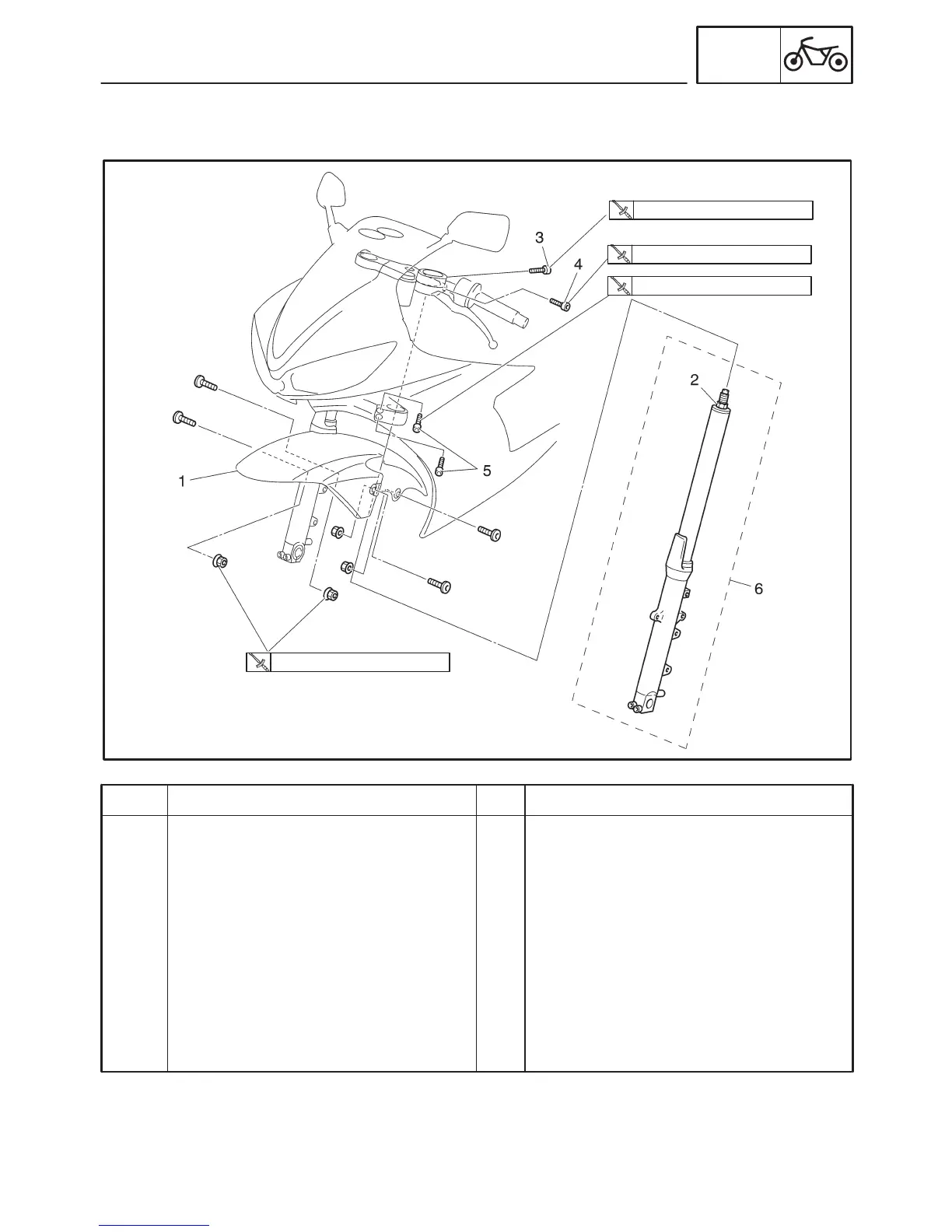

Removing the front fork legs
Front wheel
Front brake calipers
Front cowling inner panels
Front fender
Cap bolt
Handlebar pinch bolt
Upper bracket pinch bolt
Under bracket pinch bolt
Front fork leg
1
1
1
1
2
1
Remove the parts in the order listed.
Refer to “FRONT AND REAR BRAKES”.
Refer to “COWLINGS” in chapter 3.
Loosen.
Loosen.
Loosen.
Loosen.
For installation, reverse the removal
procedure.
33 Nm (3.3 mSkg, 24 ftSlb)
26 Nm (2.6 mSkg, 19 ftSlb)
23 Nm (2.3 mSkg, 17 ftSlb)
6 Nm (0.6 mSkg, 4.3 ftSlb)
FRONT FORK
CHAS
EAS00647
FRONT FORK
FRONT FORK LEGS
