3-7
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11

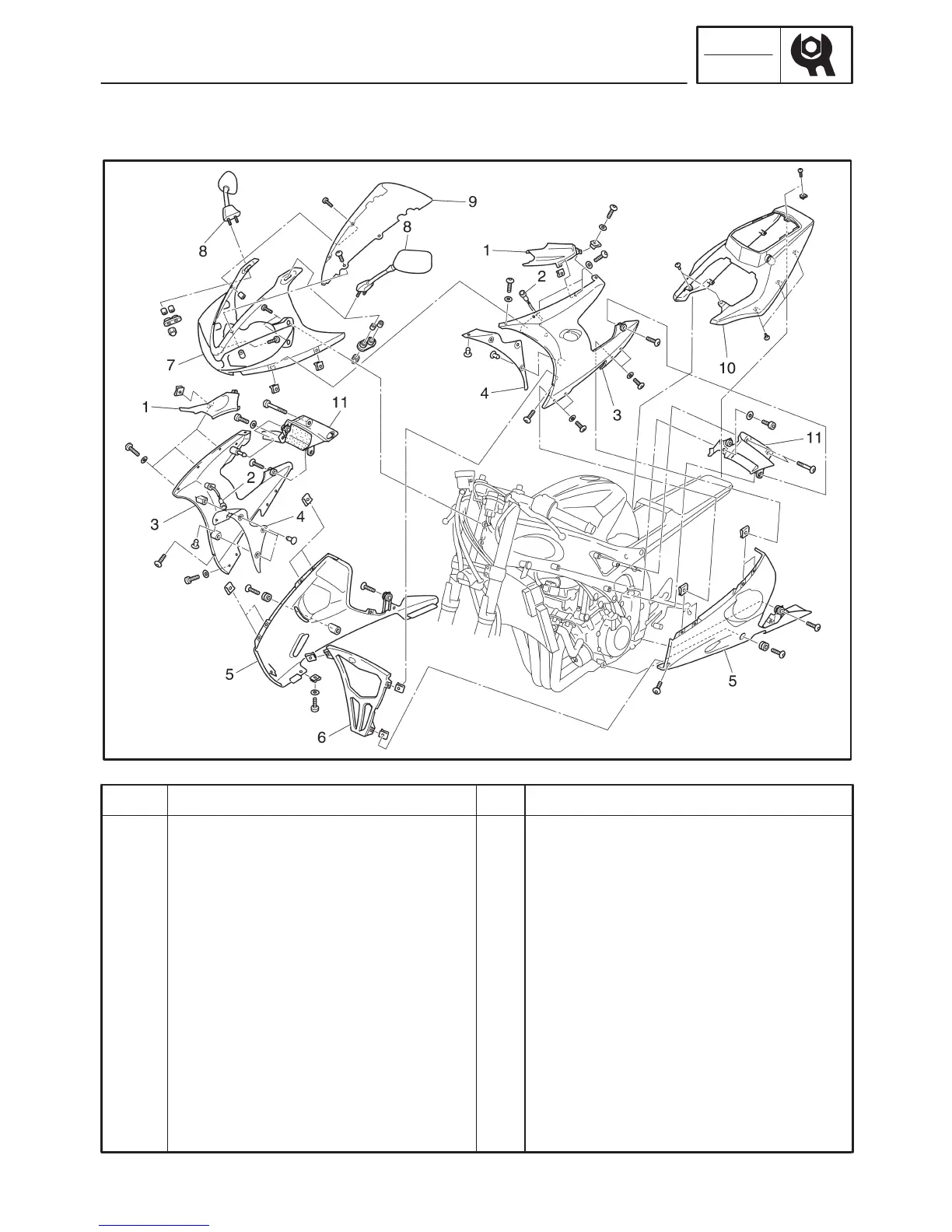

Removing the cowlings
Rider and passenger seats
Front cowling inner panel (left and right)
Front turn signal light lead couplers
Side cowlings (left and right)
Side cowlings inner panels
(left and right)
Bottom cowlings (left and right)
Bottom cowling front cover
Front cowling
Rear view mirrors (left and right)
Windshield
Rear cowling
Frame side cover
2
2
2
2
2
1
1
2
1
1
2
Remove the parts in the order listed.
Refer to “SEATS”.
Disconnect.
For installation, reverse the removal
procedure.
COWLINGS
CHK
ADJ
COWLINGS
To Next Page
