Yamaha YZF-R6T - Chapter 5 Overhauling the Engine; Engine; Drive Sprocket

5-1
5
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8

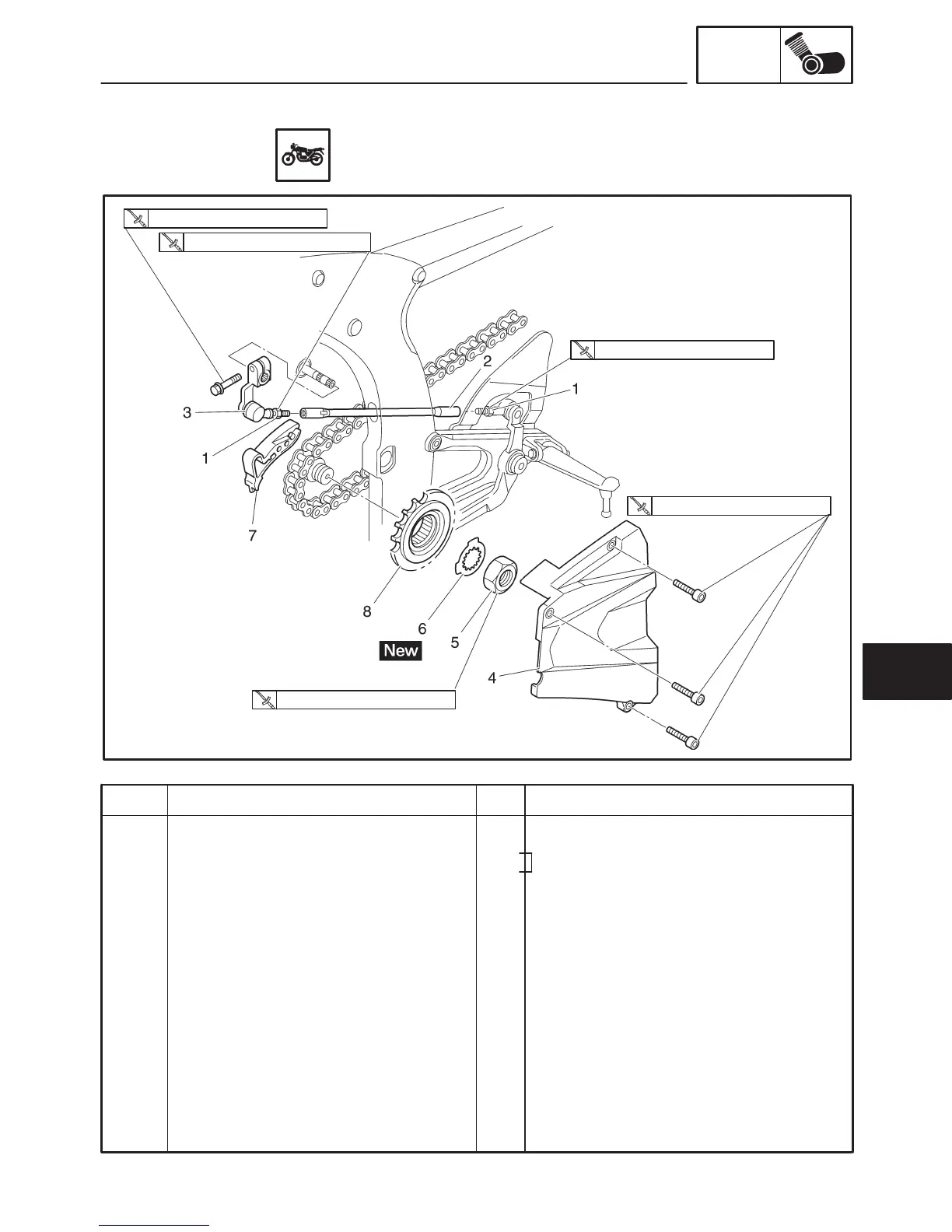

Removing the drive sprocket
Bottom cowling
Side cowlings
Drive chain
Lock nut
Shift rod
Shift arm
Drive sprocket cover
Nut
Lock washer
Chain guide
Drive sprocket
2
1
1
1
1
1
1
1
Remove the parts in the order listed.
Loosen.
Refer to “ADJUSTING THE DRIVE
CHAIN” in chapter 3.
Loosen.
For installation, reverse the removal
procedure.
Refer to “COWLINGS” in chapter 3.
10 Nm (1.0 mSkg, 7.2 ftSlb)
6.5 Nm (0.65 mSkg, 4.7 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
90 Nm (9.0 mSkg, 65 ftSlb)
ENGINE
ENG
OVERHAULING THE ENGINE
ENGINE
DRIVE SPROCKET
