4-28
FRONT AND REAR BRAKES
CHAS
NOTE:
NOTE:
NOTE:
EAS00588

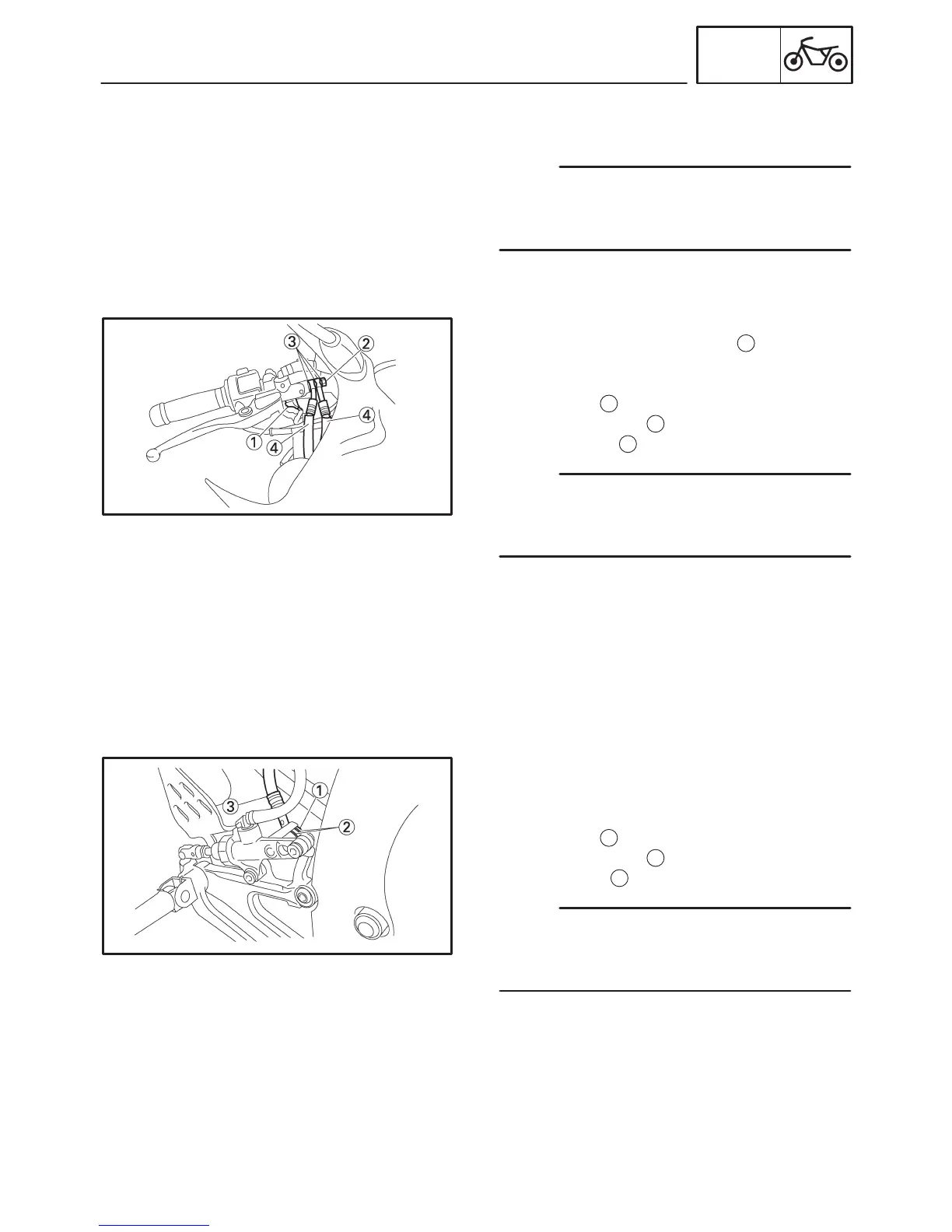

DISASSEMBLING THE FRONT BRAKE
MASTER CYLINDER
Before disassembling the front brake master
cylinder, drain the brake fluid from the entire
brake system.
1. Disconnect:
brake light switch connector
1
(from the brake light switch)
2. Remove:
S union bolt
2
S copper washers
3
S brake hoses
4
To collect any remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.
3. Remove:
S brake master cylinder bracket
S brake master cylinder assembly
4. Remove:
S dust boot
S circlip
EAS00589
DISASSEMBLING THE REAR BRAKE
MASTER CYLINDER
1. Remove:
S union bolt
1
S copper washers
2
S brake hose
3
To collect any remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.
2. Remove:
S brake master cylinder assembly
3. Remove:
S dust boot
S circlip
