3-9
Order
Job
/
Part
Q’ty
Remarks
1
2
3
4
5
6
7

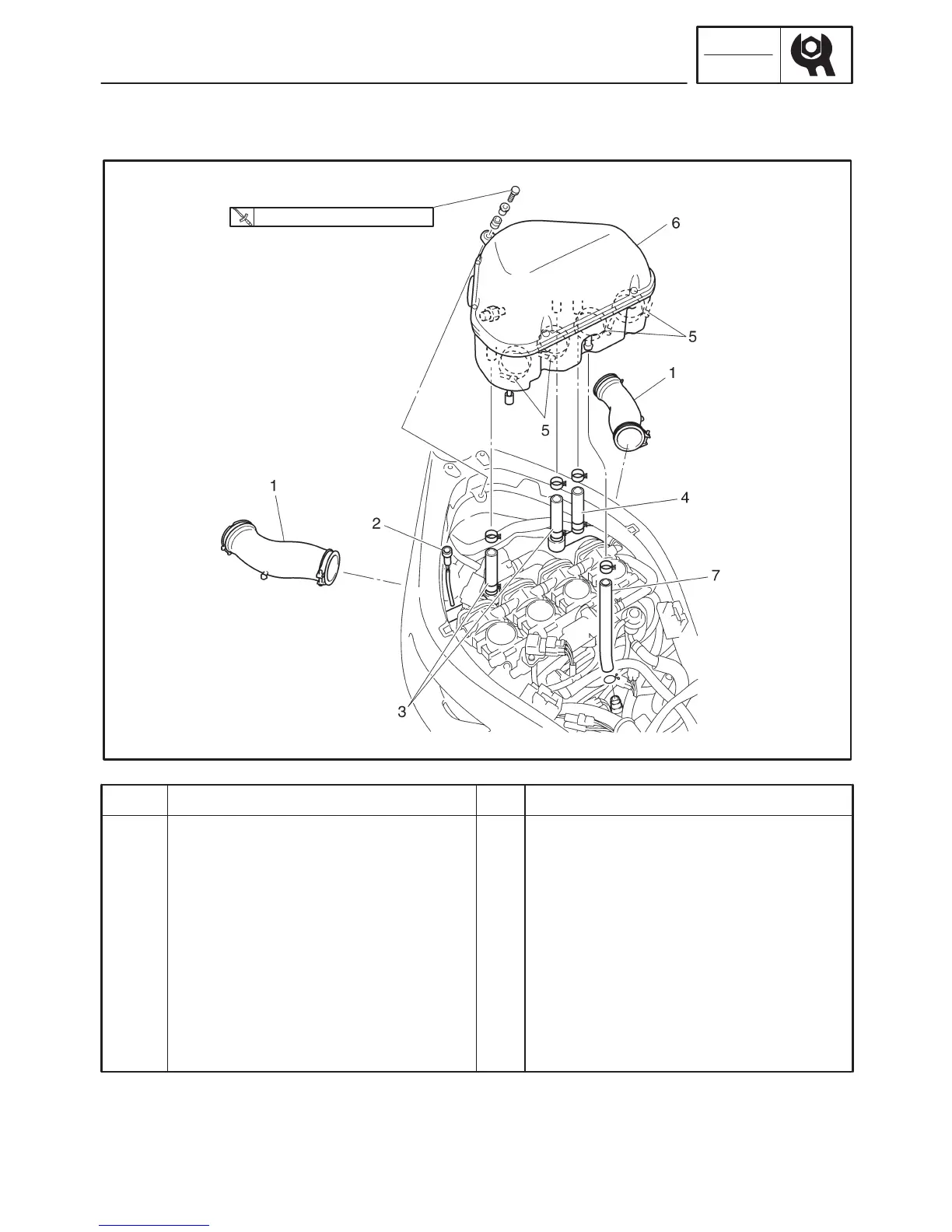

Removing the air filter case
Rider seat
Fuel tank
Air intake duct
Intake temperature sensor coupler
Throttle body hose
Air induction system hose
Clamp
Air filter case
Crankcase breather hose
2
1
2
1
4
1
1
Remove the parts in the order listed.
Refer to “SEA
TS”.
Refer to “FUEL T
ANK”.
Disconnect.
Disconnect.
Disconnect.
Loosen.
Disconnect.
For installation, reverse the removal
procedure.
10 Nm (1.0 m
S
kg, 7.2 ft
S
lb)
AIR FIL
TER CASE
CHK
ADJ
AIR FIL
TER CASE
Manuals by Motomatrix / www.motomatrix.co.uk / The Solution For Lost Motorcycle Coded Keys
email: info@motomatrix.co.uk
191
