CHAS
42

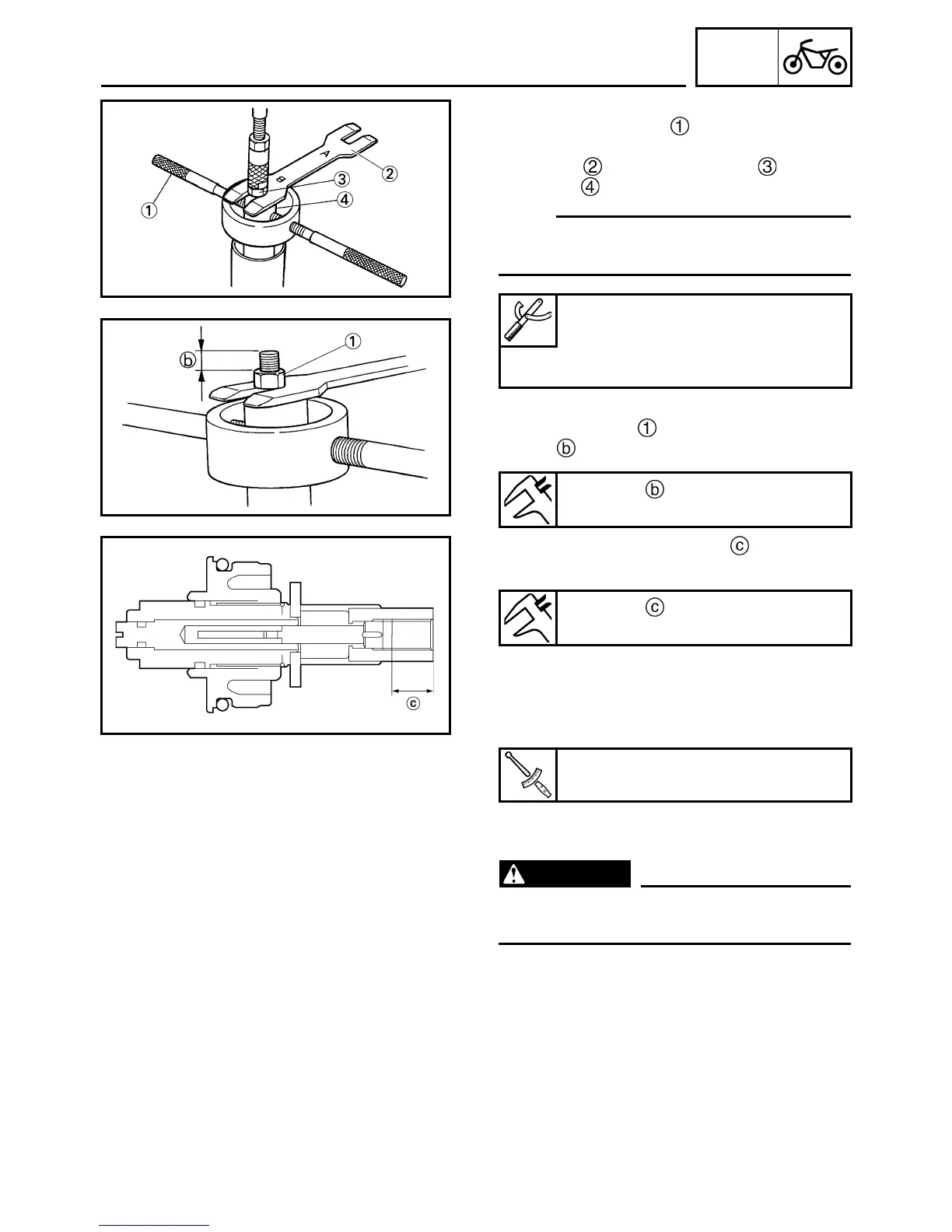

e. Press down on the spacer with the fork
spring compressor .
f. Pull up the rod puller and install the rod
holder between the nut and the
spacer .
N
TE:
Use the side of the rod holder that is marked
“B”.
g. Remove the rod puller and adapter.
h. Install the nut and position it as speci-
fied .
i. Set the cap bolt distance to specifica-
tion.
j. Install the damper adjusting rod and cap
bolt, and then finger tighten the cap bolt.
k. Hold the cap bolt and tighten the nut to
specification.
l. Remove the rod holder and fork spring
compressor.
WARNING
• The fork spring is compressed.
• Always use a new cap bolt O-ring.
Fork spring compressor
90890-01441, YM-01441
Rod holder
90890-01434, YM-01434
Distance
11 mm (0.43 in)
Distance
13 mm (0.51 in)
Nut
15 Nm (1.5 m•kg, 11 ft•lb)
FRONT FORK
To Next Page
