5-9
Order Job/Part Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12

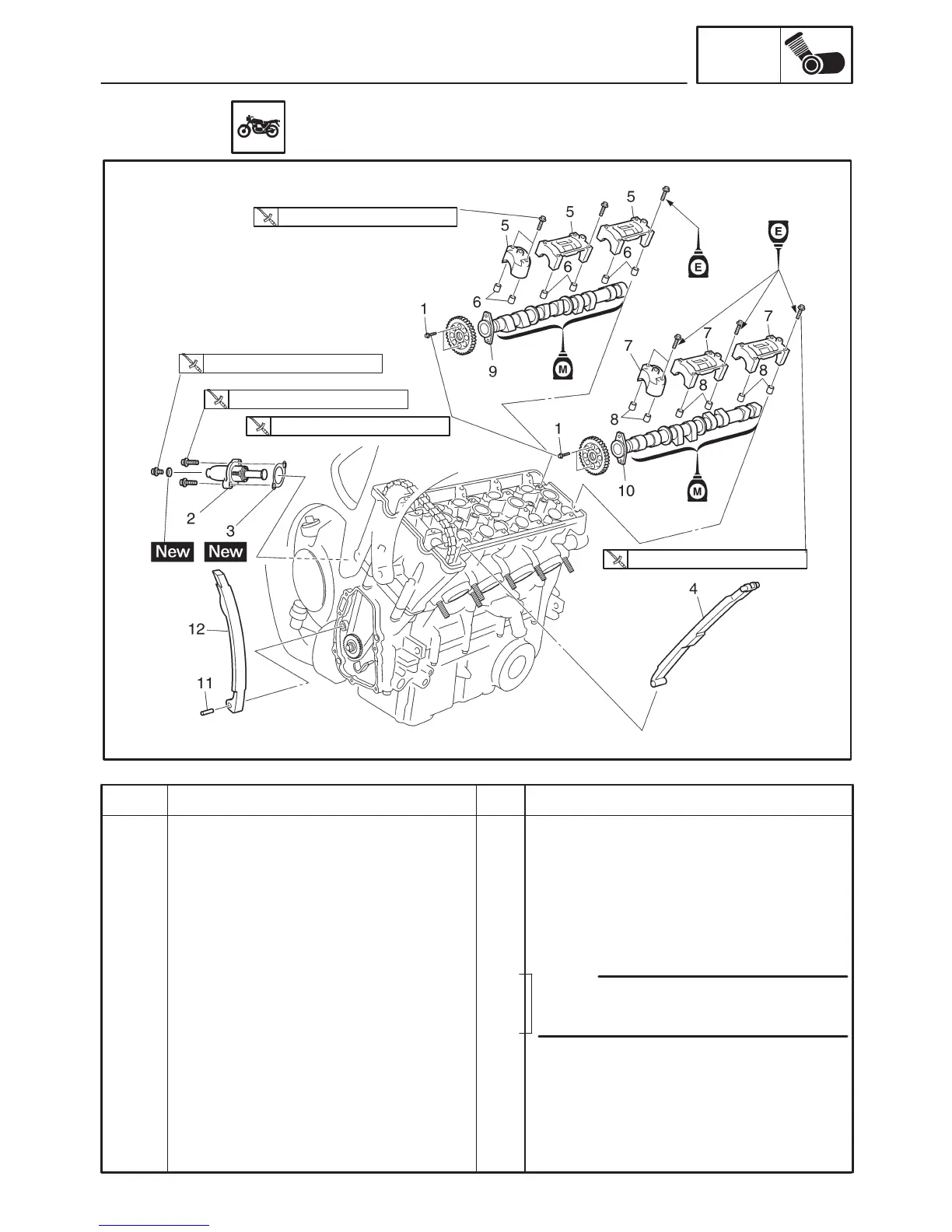

Removing the camshafts
Pickup rotor cover
Camshaft sprocket bolt
Timing chain tensioner
Timing chain tensioner gasket
Timing chain guide (exhaust side)
Intake camshaft cap
Dowel pin
Exhaust camshaft cap
Dowel pin
Intake camshaft
Exhaust camshaft
Pin
Timing chain guide (intake side)
4
1
1
1
3
6
3
6
1
1
1
1
Remove the parts in the order listed.
Refer to “CRANKSHAFT POSITION
SENSOR AND PICKUP ROTOR”.
Loosen.
For installation, reverse the removal
procedure.
During removal, the dowel pins may still
be connected to the camshaft caps.
NOTE:
10 Nm (1.0 mSkg, 7.2 ftSlb)
12 Nm (1.2 mSkg, 8.7 ftSlb)
24 Nm (2.4 mSkg, 17 ftSlb)
7 Nm (0.7 mSkg, 5.1 ftSlb)
10 Nm (1.0 mSkg, 7.2 ftSlb)
CAMSHAFTS
ENG
EAS00196
CAMSHAFTS
