3-20

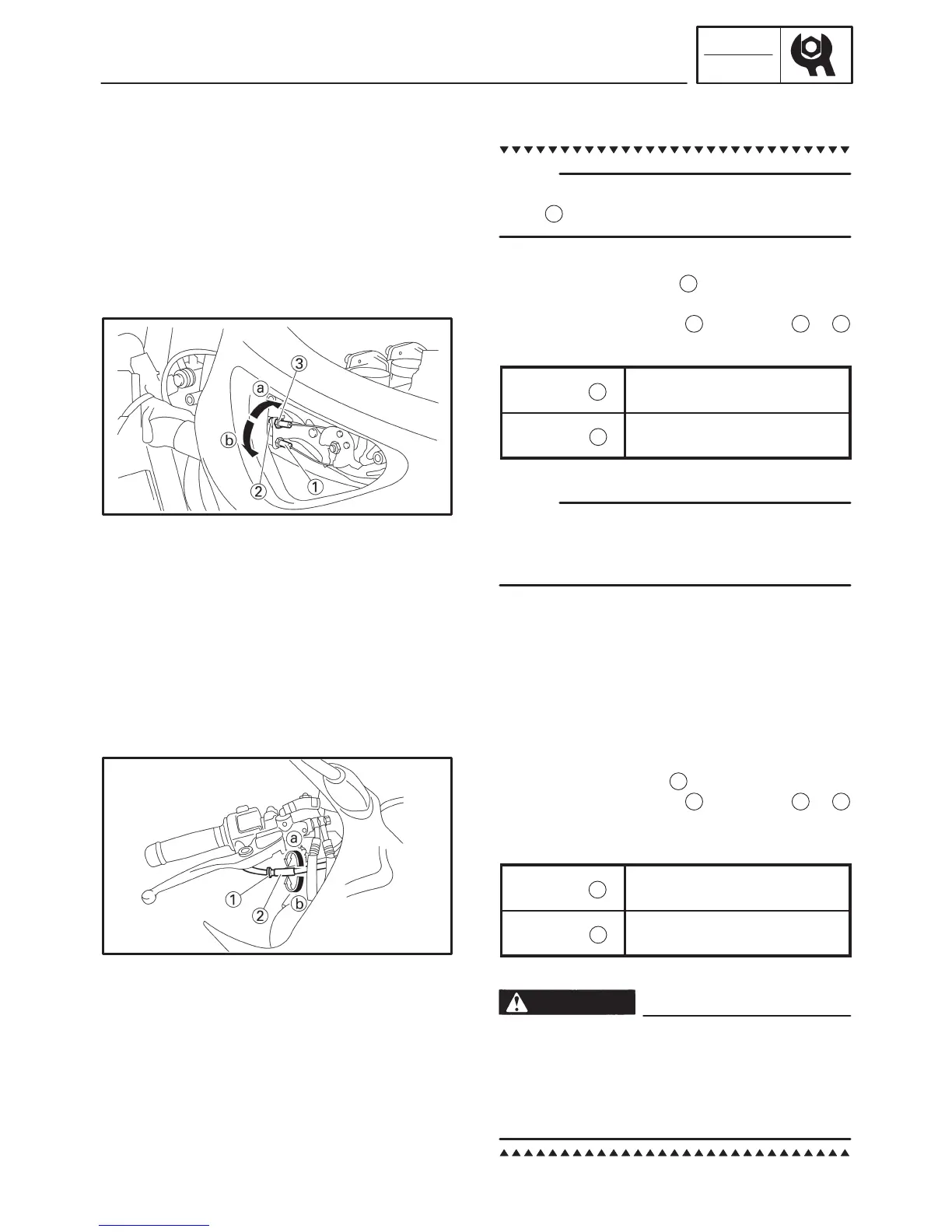

ADJUSTING THE THROTTLE CABLE FREE PLAY
CHK
ADJ
NOTE:
a
b
NOTE:
a
b
WARNING
3. Adjust:
S throttle cable free play
When the throttle is opened, the accelerator
cable
1
is pulled.
Throttle body side
a. Loosen the locknut
2
on the decelerator
cable.
b. Turn the adjusting nut
3
in direction
a
or
b
to take up any slack on the decelerator cable.
Direction
Throttle cable free play is
increased.
Direction
Throttle cable free play is
decreased.
c. Tighten the locknuts.
If the specified throttle cable free play cannot be
obtained on the throttle body side of the cable,
use the adjusting nut on the handlebar side.
Handlebar side
a. Loosen the locknut
1
.
b. Turn the adjusting nut
2
in direction
a
or
b
until the specified throttle cable free play is
obtained.
Direction
Throttle cable free play is
increased.
Direction
Throttle cable free play is
decreased.
c. Tighten the locknut.
After adjusting the throttle cable free play,
start the engine and turn the handlebars to
the right and to the left to ensure that this
does not cause the engine idling speed to
change.
