7-14
Intake air pressure sensor output
voltage
3.75 X 4.25 V
Tester positive probe ! pink/white
Tester negative probe ! black/blue
1
2
1
2
FUEL INJECTION SYSTEM
FI
Fault code No. 13 Symptom Intake air pressure sensor - open or short circuit detected.
Used diagnostic code No. 03 (intake air pressure sensor)
Inspection operation item and probable
cause
Operation item and countermeasure Reinstatement
method
Defective intake air pressure sensor Replace if defective.

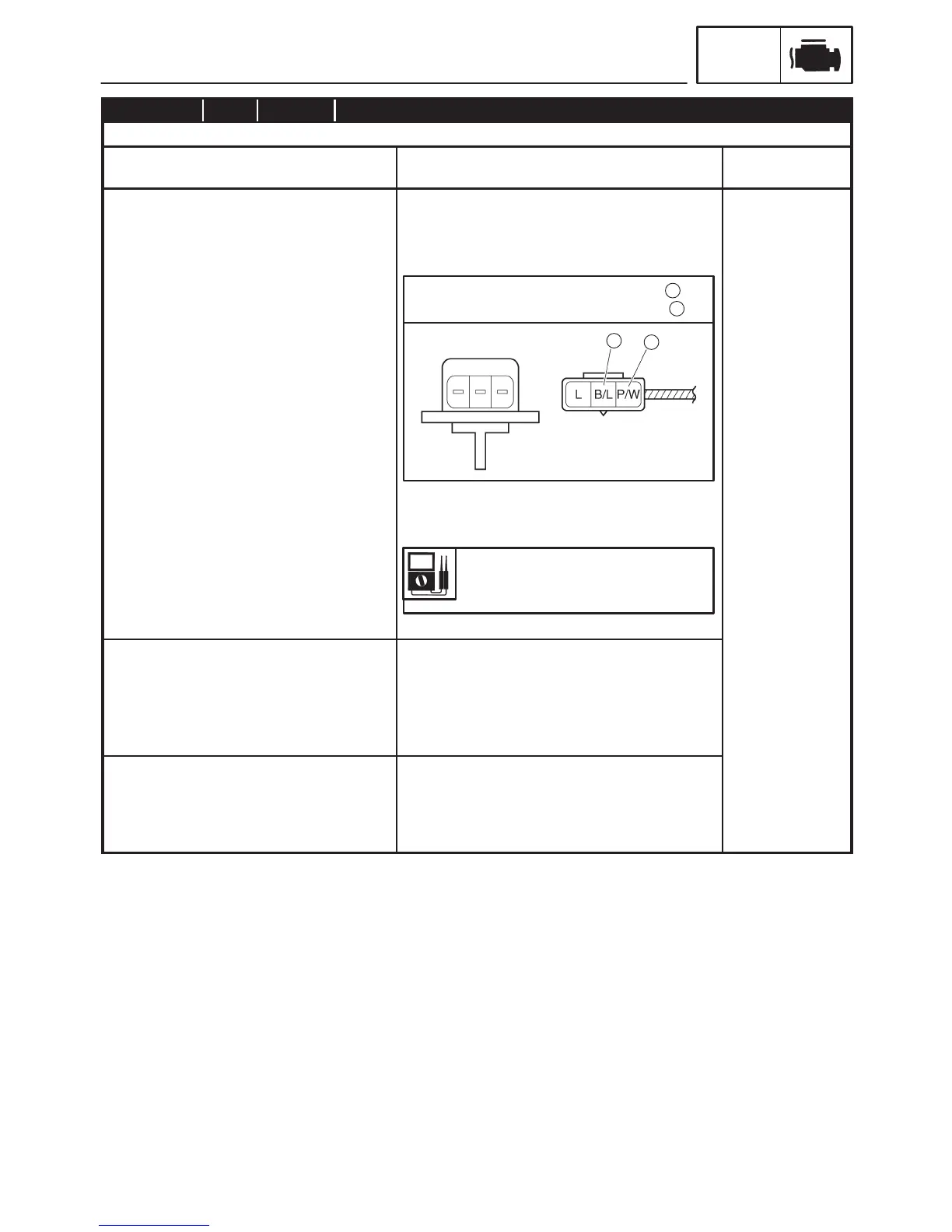

1. Connect the pocket tester (DC 20 V) to the
intake air pressure sensor coupler terminal as
shown.
2. Set the main switch to “ON”.
3. Measure the intake air pressure sensor output
voltage.
4. Is the intake air pressure sensor OK?
Reinstated by
turning the main
switch ON.
Open or short circuit in wiring harness and/or
sub lead.
Repair or replace if there is an open or short
circuit.
Between sensor coupler and ECU coupler
Black/Blue - Black/Blue
Pink/White - Pink/White
Blue - Blue
Connected condition of connector
Inspect the coupler for any pins that may
have pulled out.
Check the locking condition of the coupler.
If there is a malfunction, repair it and connect it
securely.
Intake air pressure sensor coupler
Main wiring harness ECU coupler
Sub-wire harness coupler
