YASKAWA MECHATROLINK Sigma 2 Series User Manual

6.1 Parameter Limits and Standard Settings with NS115
6-5
6
6.1.2 Standard Settings for CN1 I/O Signals
The standards settings for CN1 I/O signals when the NS115 is mounted are described below.
The parameters can be set as described for standard applications.

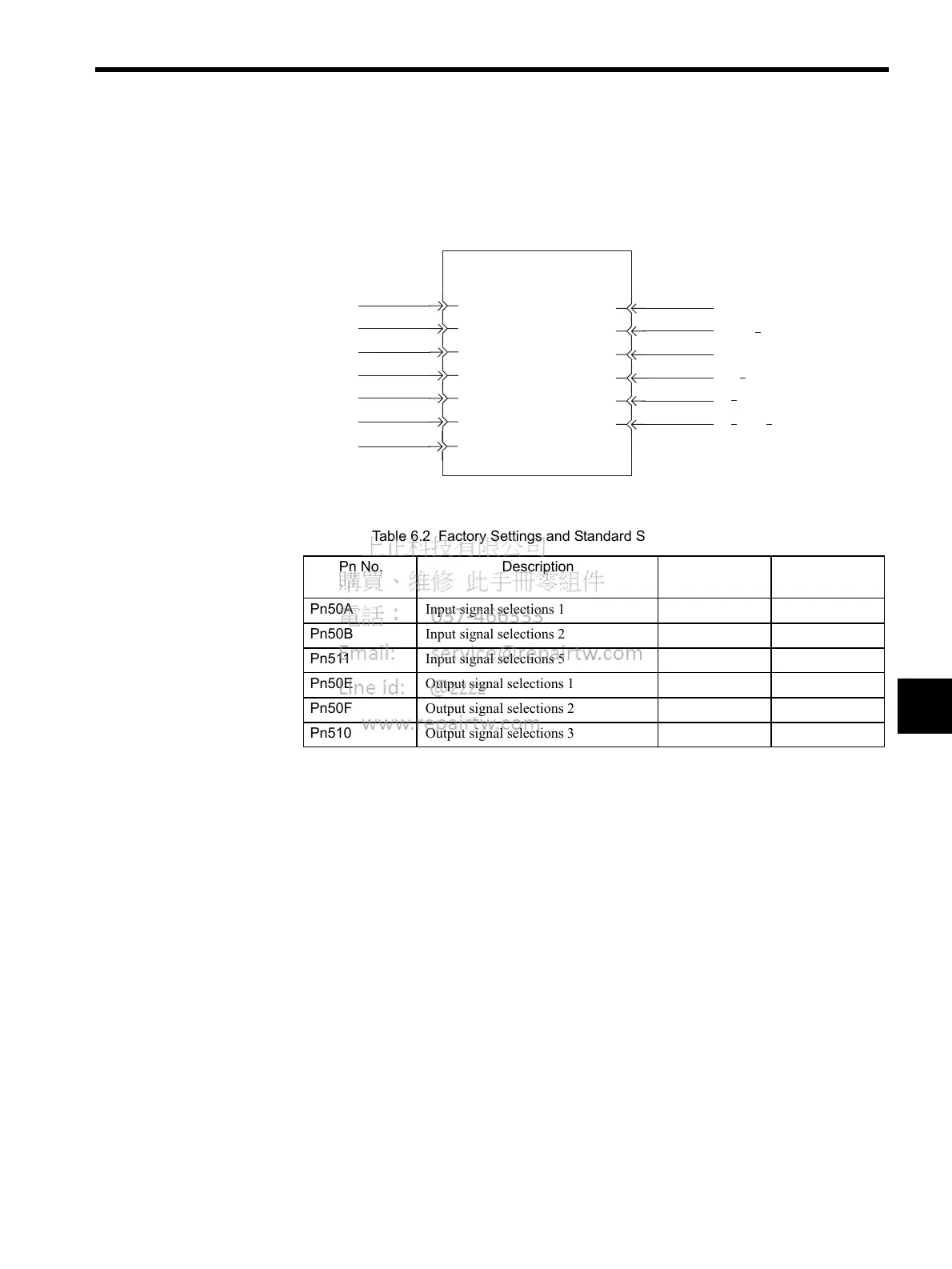

Fig. 6.1 Standard CN1 I/O Signal Settings
Table 6.2 Factory Settings and Standard Settings for CN1 I/O Signals
Pn No. Description Factory Setting Standard
Setting
Pn50A Input signal selections 1 2881 2881
Pn50B Input signal selections 2 6583 8883
Pn511 Input signal selections 5 8888 6541
Pn50E Output signal selections 1 3211 3001
Pn50F Output signal selections 2 0000 0200
Pn510 Output signal selections 3 0000 0000
SGDH SERVOPACK
CN1
Not used
/DEC
P-OT
N-OT
/EXT1
/EXT2
/EXT3
/COIN+
/COIN
/BK+
/BK
/S RDY+
/S
RDY
40 (SI0)
41 (SI1)
42 (SI2)
43 (SI3)
44 (SI4)
45 (SI5)
46 (SI6)
25
26
27
28
29
30
(SO1)
(SO2)
(SO3)
