YASKAWA MECHATROLINK Sigma 2 Series User Manual

4 MECHATROLINK-II Communications
4.2.3 Setting the Station Address
4-6
4.2.3 Setting the Station Address
The station address is set as shown in Table 4.2, using the rotary switch (SW1) and piano
switch (SW2 bit 3). Settings that have been changed are enabled when the power is turned
OFF and ON. The factory setting for the station address is 41H (SW2 bit 3 = OFF, SW1 = 1).

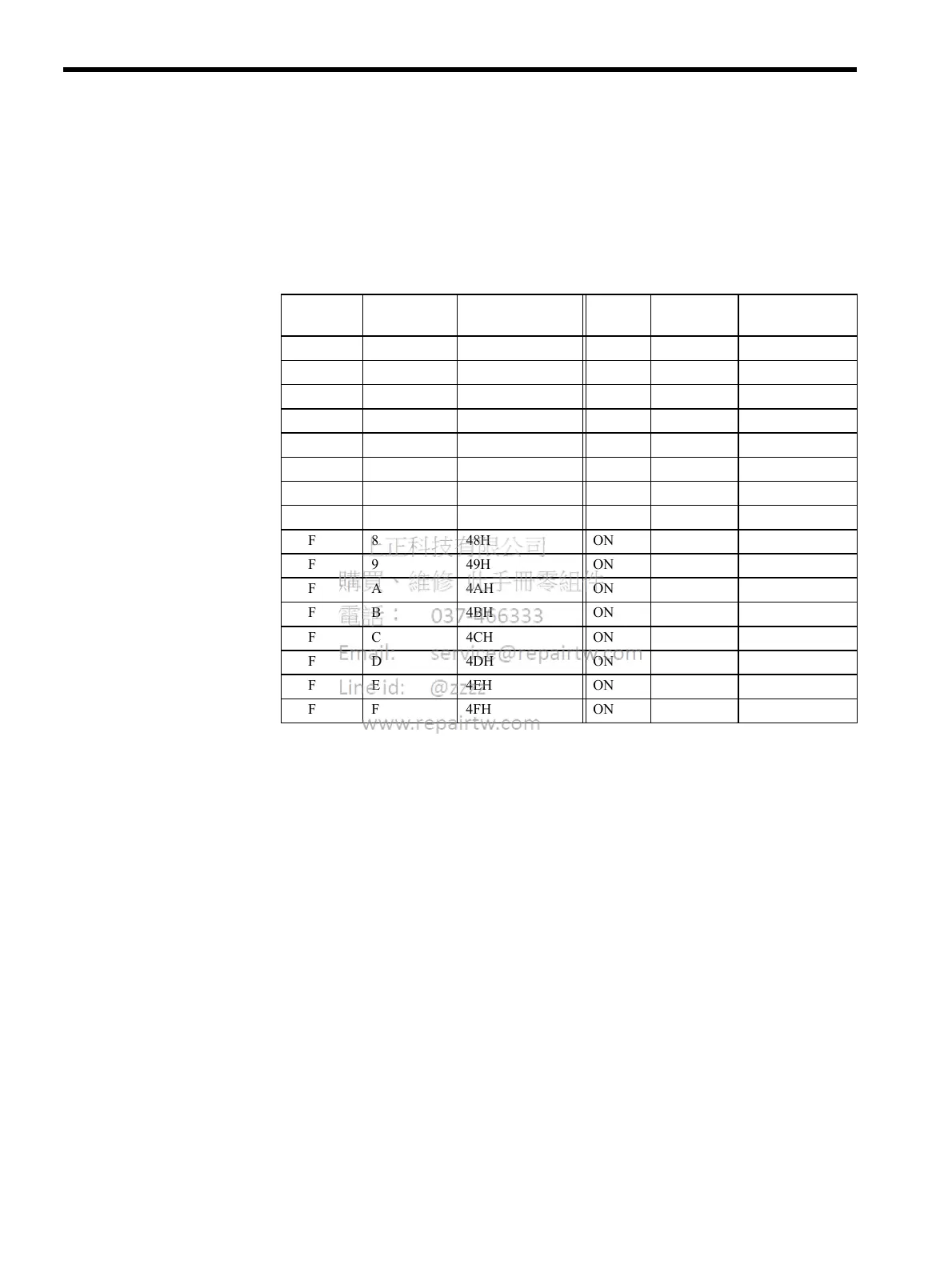

Table 4.2 Station Address Settings
Bit 3 of
SW2
SW1 Station Address Bit 3 of
SW2
SW1 Station Address
OFF 0 Disabled ON 0 50H
OFF 1 41H ON 1 51H
OFF 2 42H ON 2 52H
OFF 3 43H ON 3 53H
OFF 4 44H ON 4 54H
OFF 5 45H ON 5 55H
OFF 6 46H ON 6 56H
OFF 7 47H ON 7 57H
OFF 8 48H ON 8 58H
OFF 9 49H ON 9 59H
OFF A 4AH ON A 5AH
OFF B 4BH ON B 5BH
OFF C 4CH ON C 5CH
OFF D 4DH ON D 5DH
OFF E 4EH ON E 5EH
OFF F 4FH ON F 5FH
