2.3 Orientation

2-3

2.3 Orientation

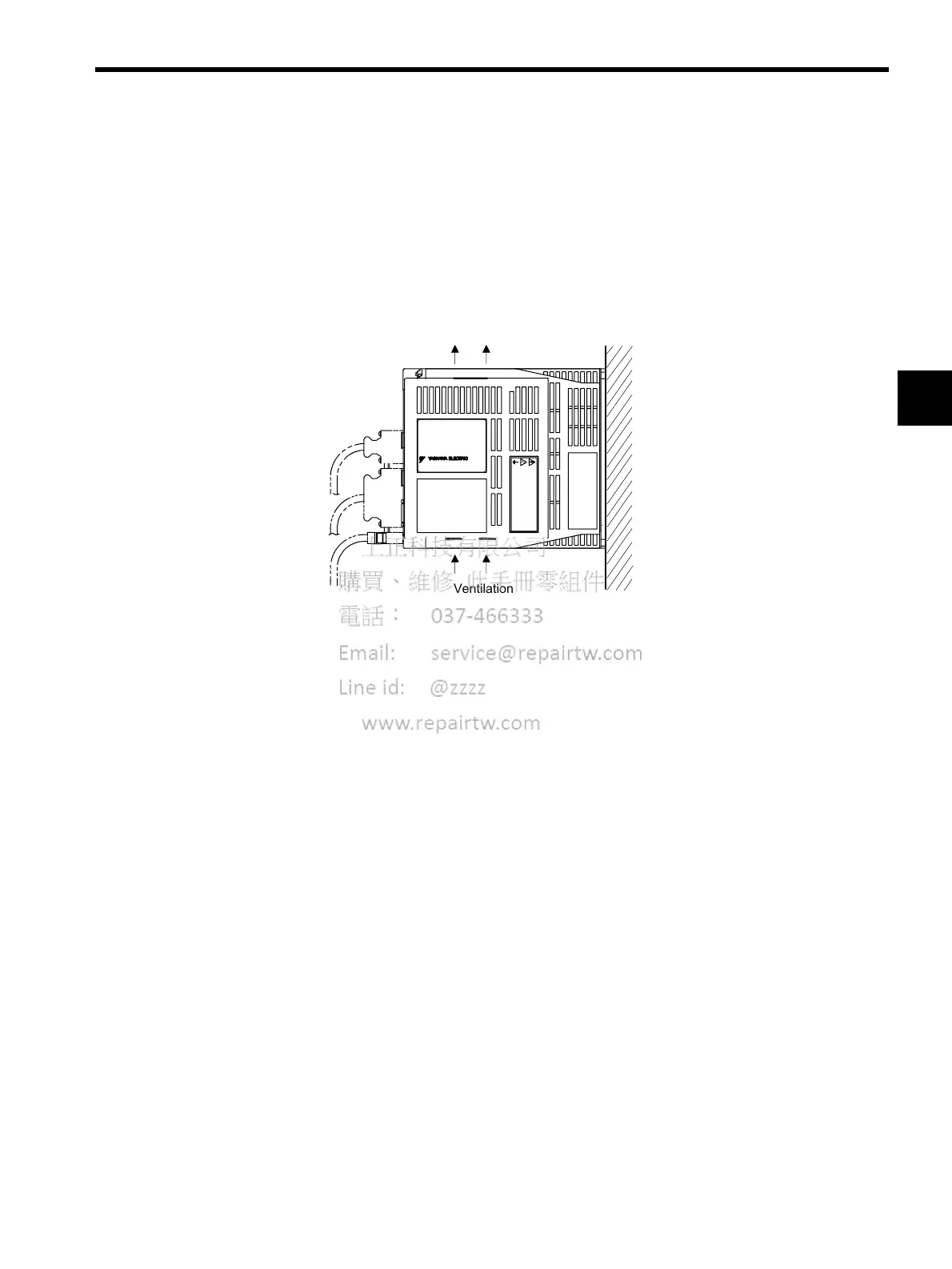

Install the SERVOPACK perpendicular to the wall as shown in the figure. The SERVOPACK

must be oriented this way because it is designed to be cooled by natural convection or cooling

fan.

Secure the SERVOPACK using 2 to 4 mounting holes. The number of holes depends on the

SERVOPACK capacity.

Ventilation

Wall
