4.3 Main Commands
4-35
4

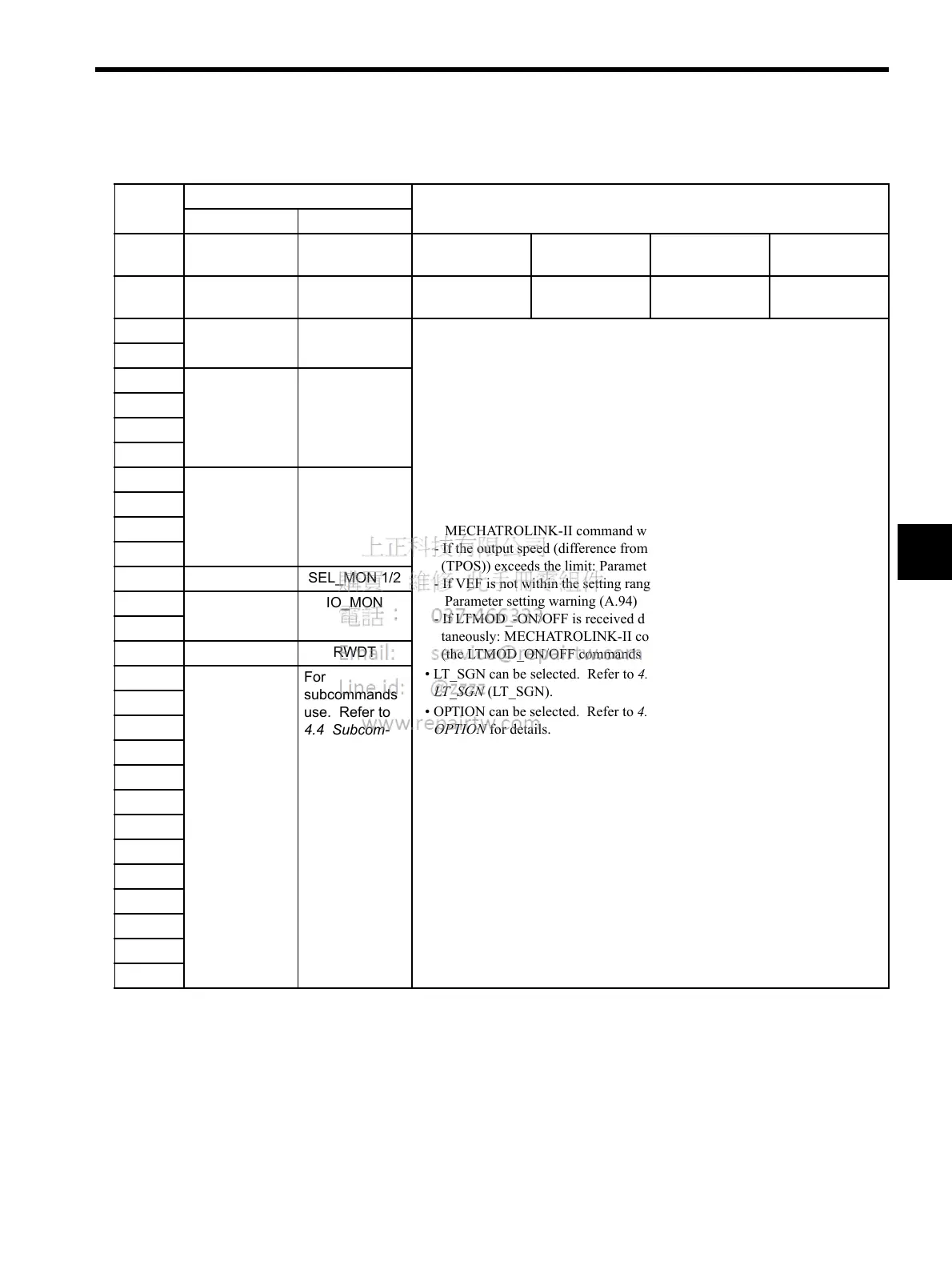

4.3.27 Interpolation Feeding with Position Detection (LATCH: 38H)
Byte LATCH Description
Command Response
1 38H 38H Processing
classifications
Motion command
group
Synchronization
classifications
Synchronous
2 LT_SGN ALARM Processing time Within communi-
cations cycle
Subcommand Can be used.
3OPTIONSTATUS• Performs interpolation feeding and latches the position using the latch signal
simultaneously. Sends speed feedforward (VFF) simultaneously, too.
• If the latch signal is input, the position when the input is received is recorded
as the counter latch position (LPOS) and LPOS will be indicated as the
MONITOR2 forcibly for one communications cycle.
• Can be used during phases 2 and 3.
• A command warning will occur and the command will be ignored in the fol-
lowing cases.
- During phases other than phase 3:
MECHATROLINK-II command warning (A.95)
- If the SERVOPACK is Servo OFF:
MECHATROLINK-II command warning (A.95)
- If the output speed (difference from the previous target position
(TPOS)) exceeds the limit: Parameter setting warning (A.94)
- If VEF is not within the setting range:
Parameter setting warning (A.94)
- If LTMOD_-ON/OFF is received during LATCH execution or simul-
taneously: MECHATROLINK-II command warning (A.95)
(the LTMOD_ON/OFF commands will be ignored.)
• LT_SGN can be selected. Refer to 4.5.1 Latch Signal Field Specifications:
LT_SGN (LT_SGN).
• OPTION can be selected. Refer to 4.5.2 Option Field Specifications:
OPTION for details.
• Use DEN (output complete) to confirm the motion completion.
• It takes 4 ms max. for the Request Latch Mode command to start.
• If LATCH command is received during modal latch mode, the LACTH com-
mand is enabled.
4
5 TPOS MONITOR1
6
7
8
9 VFF MONITOR2
10
11
12
13 SEL_MON 1/2 SEL_MON 1/2
14 IO_MON
15
16 WDT RWDT
17 For
subcommands
use. Refer to
4.4 Subcom-
mands.
For
subcommands
use. Refer to
4.4 Subcom-
mands.
18
19
20
21
22
23
24
25
26
27
28
29
To Next Page
