1 Checking Products and Part Names
1-2
1.1 Checking Products on Delivery
The following procedure is used to check products upon delivery. Check the following items
when products are delivered.
If any of the above items are faulty or incorrect, contact your Yaskawa sales representative or
the dealer from whom you purchased the products.

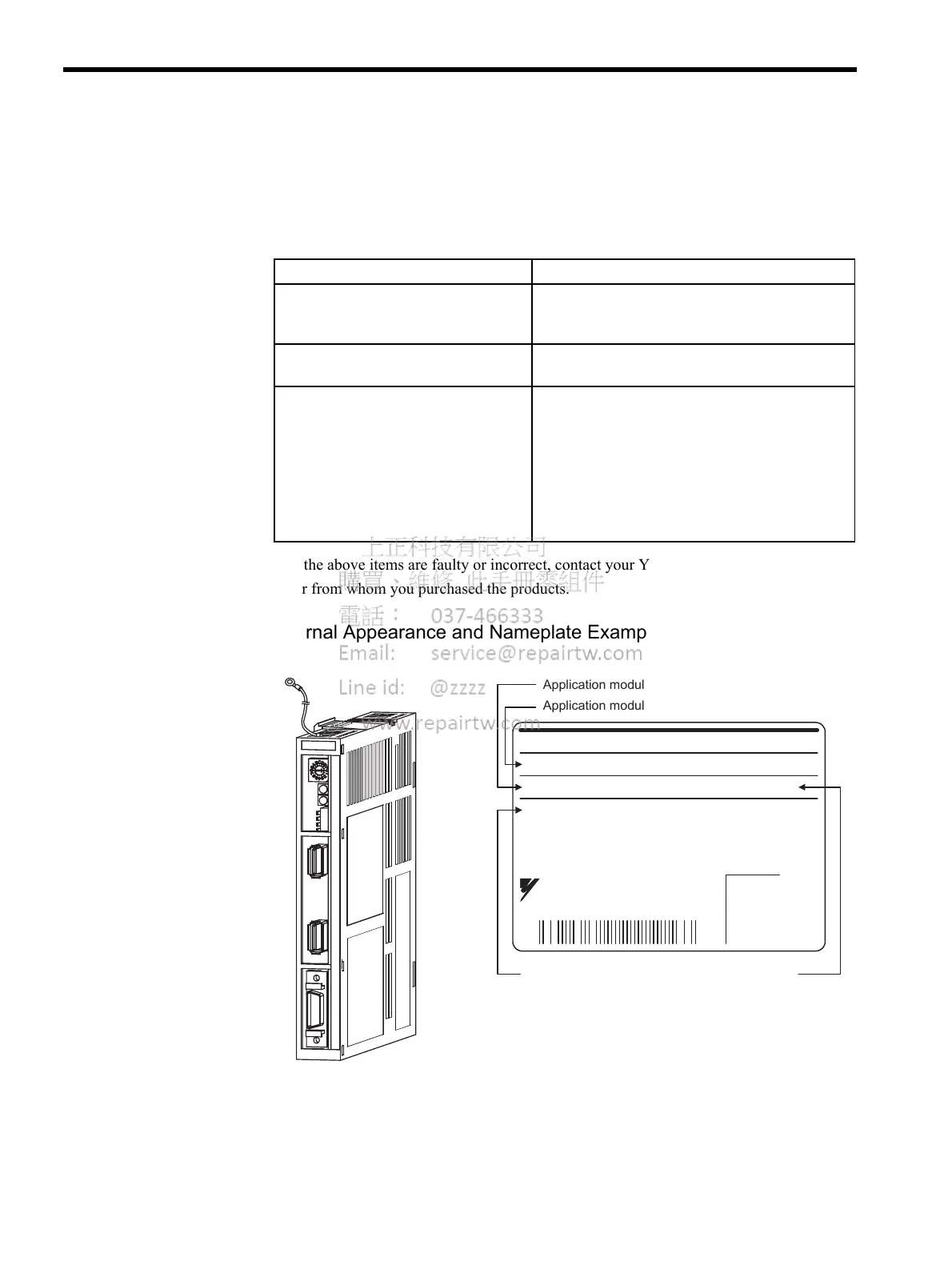

External Appearance and Nameplate Examples
Check Items Comments
Are the delivered products the ones
that were ordered?
Check the model numbers marked on the nameplates
of the NS115. (Refer to the descriptions of model
numbers on the following page.)
Is there any damage? Check the overall appearance, and check for damage
or scratches that may have occurred during shipping.
Can the NS115 be installed on the
SERVOPACK used?
Check the model number given on the SERVOPACK
nameplate and the version seal on the front panel. The
model number must contain “SGDH” and “E” as
shown below to support the NS115.
Model number (MODEL): SGDH-E-
The latter two numbers on the version seal are more
than 33.
Version seal: ∗∗∗33
Fig. 1.2 Nameplate
Fig. 1.1 External Appearance of
the NS115
A
R
NS115
S
W
1
S
W
2
C
N
6
A
C
N
6
B
C
N
4
SERVOPACK
MECHATROLINK I/F UNIT
MODEL JUSP-NS115 VER. 000000
S/N V81003-69
YASKAWA ELECTRIC
MADE IN JAPAN
Serial number
Applicationmodulename
Applicationmodulemodelnumber
Version
