3 Wiring

3.3.4 Interface Circuits

3-10

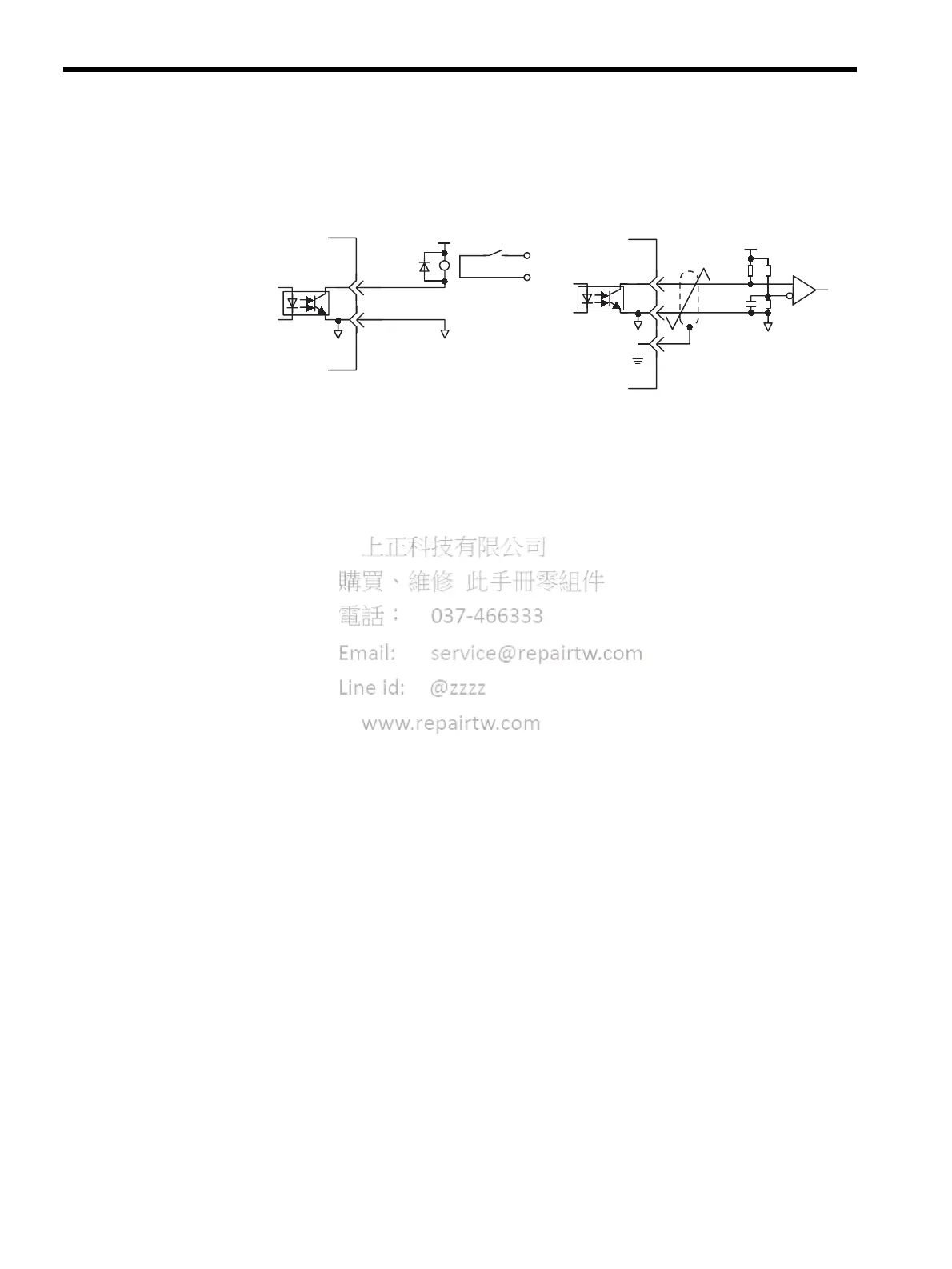

Photocoupler output circuits are used for servo alarm, servo ready, and other sequence

output signal circuits.

Connect a photocoupler output circuit through a relay or line receiver circuit.

Note: The maximum allowable voltage and current capacities for

photocoupler output circuits are as follows:

• Voltage: 30 VDC max.

• Current: 50 mA DC max.

5 to 24 VDC

Relay 5 to 12 VDC

SERVOPACK

end

SERVOPACK

end
