3.1 System Startup
3-31
3

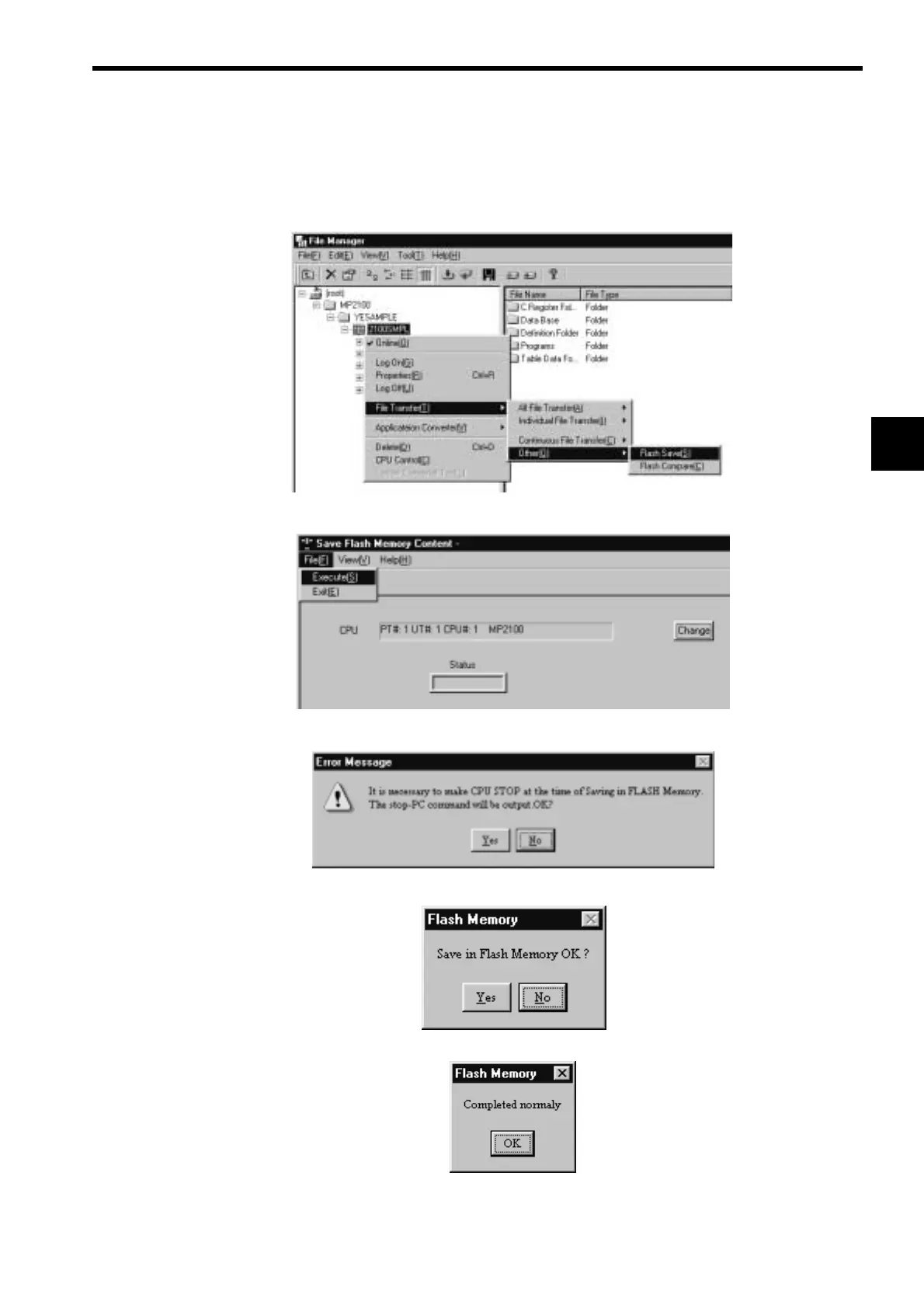

(11) Saving to Flash Memory
Save sample programs that have been transferred individually to the MP2100 to the MP2100 flash memory using
the procedure below.
1. Right-click the 2100SMPL Controller Folder and select File Transfer – Other – Flash Save.
2. The Save Flash Memory Content Window will be displayed. Select File – Execute.
3. A message appears to confirm that the CPU will be stopped. Click the Yes Button.
4. A confirmation message will be displayed. Click the Ye s Button.
5. A message will appear when the save has been completed normally. Click the OK Button.
