5.4 Motor Direction Setting
5-16

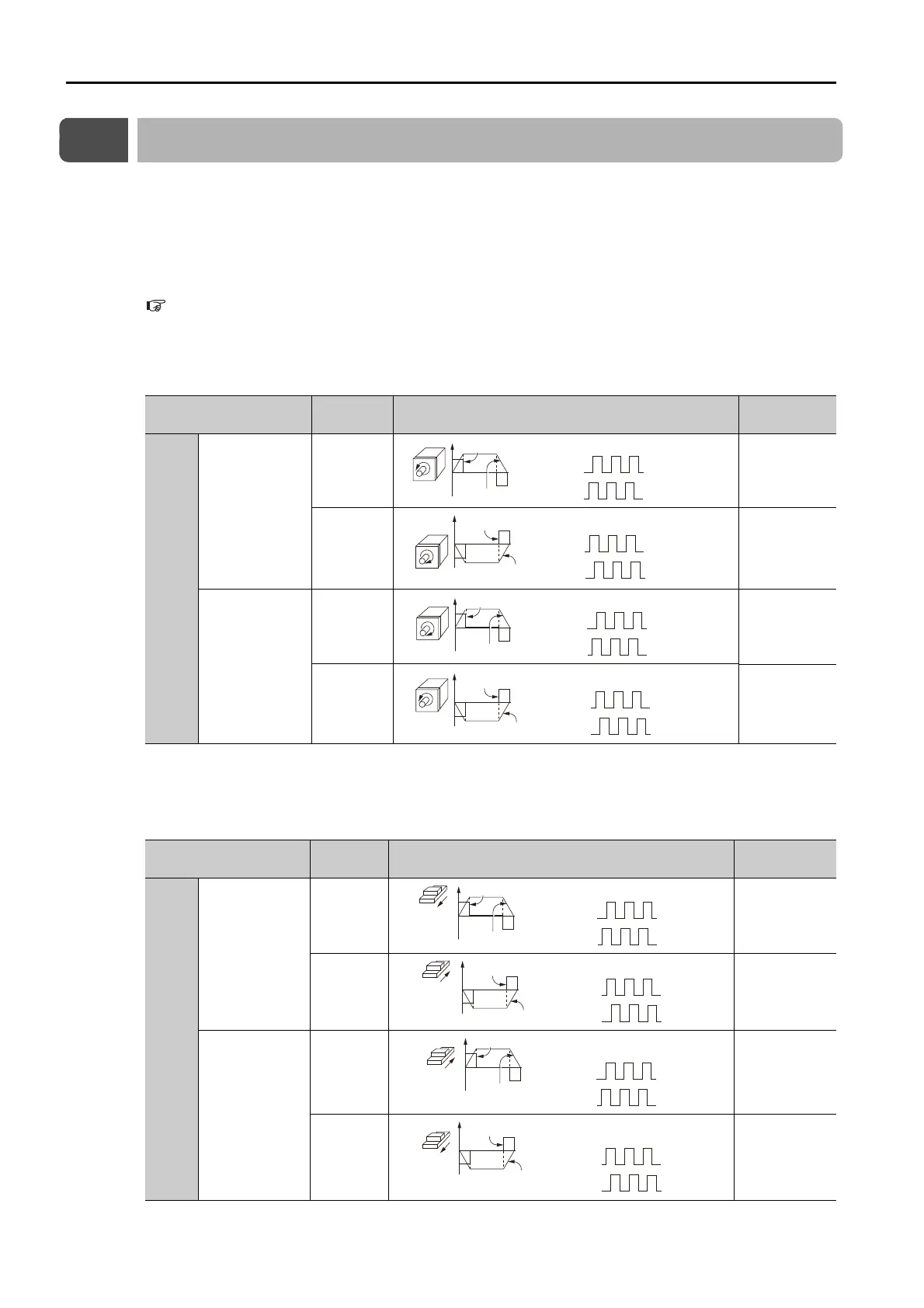

5.4 Motor Direction Setting
You can reverse the direction of Servomotor rotation by changing the setting of Pn000 =
n.X (Direction Selection) without changing the polarity of the speed or position reference.
This causes the rotation direction of the Servomotor to change, but the polarity of the signals,
such as encoder output pulses, output from the SERVOPACK do not change. Set the appropri-
ate direction for your system.
Refer to the following section for details on the encoder divided pulse output.
6.5 Encoder Divided Pulse Output on page 6-9
• Rotary Servomotors
The default setting for forward rotation is counterclockwise (CCW) as viewed from the load end of the Servomotor.
However, for overtravel, the rotation direction is the direction as viewed from the encoder.
Note: The trace waveforms of the SigmaWin+ are shown in the above table for the torque reference and motor speed diagrams. If you
measure them on a measuring instrument, e.g., with an analog monitor, the polarity will be reversed.
• Linear Servomotors
Before you set this parameter, make sure that Pn080 = n.  X  (Motor Phase Sequence Selection) is set correctly.
Note: The trace waveforms of the SigmaWin+ are shown in the above table for the force reference and motor speed diagrams. If you mea-
sure them on a measuring instrument, e.g., with an analog monitor, the polarity will be reversed.
Parameter
Forward/Reverse
Reference
Motor Direction and Encoder Divided Pulse Outputs
Applicable
Overtravel Signal (OT)
Pn000
n.0
Use CCW as
the forward
direction.
(default setting)
Forward
reference
CW-OT (CW
Drive Prohibit
Input) signal
Reverse
reference
CCW-OT
(CCW Drive
Prohibit Input)
signal
n.
1
Use CW as the
forward direc-
tion.
(Reverse Rota-
tion Mode)
Forward
reference
CW-OT (CW
Drive Prohibit
Input) signal
Reverse
reference
CCW-OT
(CCW Drive
Prohibit Input)
signal
Parameter
Forward/Reverse
Reference
Motor Moving Direction and Encoder Divided Pulse
Outputs
Applicable
Overtravel Signal (OT)
Pn000
n.0
Use the direc-
tion in which
the linear
encoder counts
up as the for-
ward direction.
(default setting)
Forward
reference
CW-OT (CW
Drive Prohibit
Input) signal
Reverse
reference
CCW-OT
(CCW Drive
Prohibit Input)
signal
n.
1
Use the direc-
tion in which
the linear
encoder counts
down as the
forward direc-
tion.
Forward
reference
CW-OT (CW
Drive Prohibit
Input) signal
Reverse
reference
CCW-OT
(CCW Drive
Prohibit Input)
signal
Motor speed
Time
Torque reference
CCW
+
Encoder Divided Pulse Outputs
Phase-B lead
PAO
PBO
Torque reference
Motor speed
Time
CW
+
Encoder Divided Pulse Outputs
Phase-A lead
PAO
PBO
Torque reference
Time
Motor speed
CW
+
Encoder Divided Pulse Outputs
Phase-B lead
PAO
PBO
Torque reference
Time
Motor speed
CCW
+
Phase-A lead
Encoder Divided Pulse Outputs
PAO
PBO
Force reference
Motor speed
Time
Moves in the
count-up
direction.
+
Encoder Divided Pulse Outputs
Phase-B lead
PAO
PBO
Moves in the
count-down
direction.
Force reference
Motor speed
Time
+
Encoder Divided Pulse Outputs
Phase-A lead
PAO
PBO
Force reference
Motor speed
Time
Moves in the
count-down
direction.
+
Encoder Divided Pulse Outputs
Phase-B lead
PAO
PBO
Moves in the
count-up
direction.
Force reference
Time
Motor speed
+
Encoder Divided Pulse Outputs
Phase-A lead
PAO
PBO
