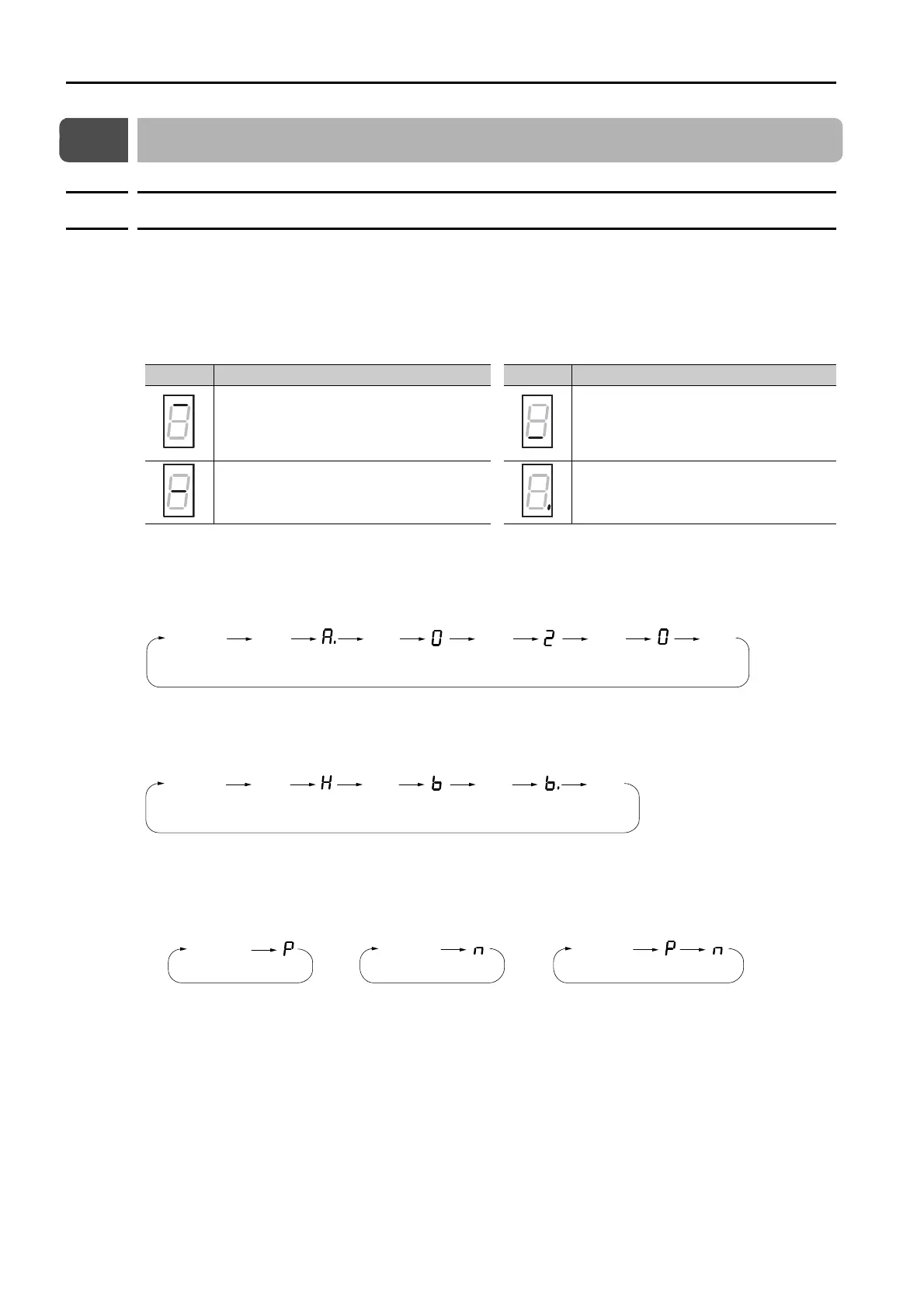

1.5 Interpreting Panel Displays
1.5.1 Panel Displays
1-8
1.5 Interpreting Panel Displays
1.5.1 Panel Displays
You can check the Servo Drive status on the panel display of the SERVOPACK.
Also, if an alarm or warning occurs, the alarm or warning number will be displayed.
Interpreting Status Displays
The status is displayed as described below.
Alarm and Warning Displays
If there is an alarm or warning, the display will change in the following order.
Example: Alarm A.020
Hard Wire Base Block Active Display
If a hard wire base block (HWBB) is active, the display will change in the following order.
Overtravel Display
If overtravel has occurred, the display will change in the following order.
Display Meaning Display Meaning
Rotation Detection Display
Lit if the Servomotor speed is higher than the
setting of Pn502 or Pn581 and not lit if the
speed is lower than the setting. (The default set-
ting is 20 min
-1
or 20 mm/s.)
Reference Input Display
Lit while a reference is being input.
Base Block Display
Lit during the base block state (servo OFF). Not
lit while the servo is ON.
Connected Display
Lit while there is a connection.
Status Display Not lit. Not lit. Not lit.Not lit.Not lit.
Not lit. Not lit. Not lit.Not lit.
Status Display

CCW Overtravel (CCW-OT)
Status Display
CW Overtravel (CW-OT)
Status Display
Status Display
CCW and CW Overtravel
