YASKAWA SGDV-OCA05A

5.15 Resetting the Absolute Encoder
5.15.3 Applicable Tools
5
Basic Functions That Require Setting before Operation
5-47

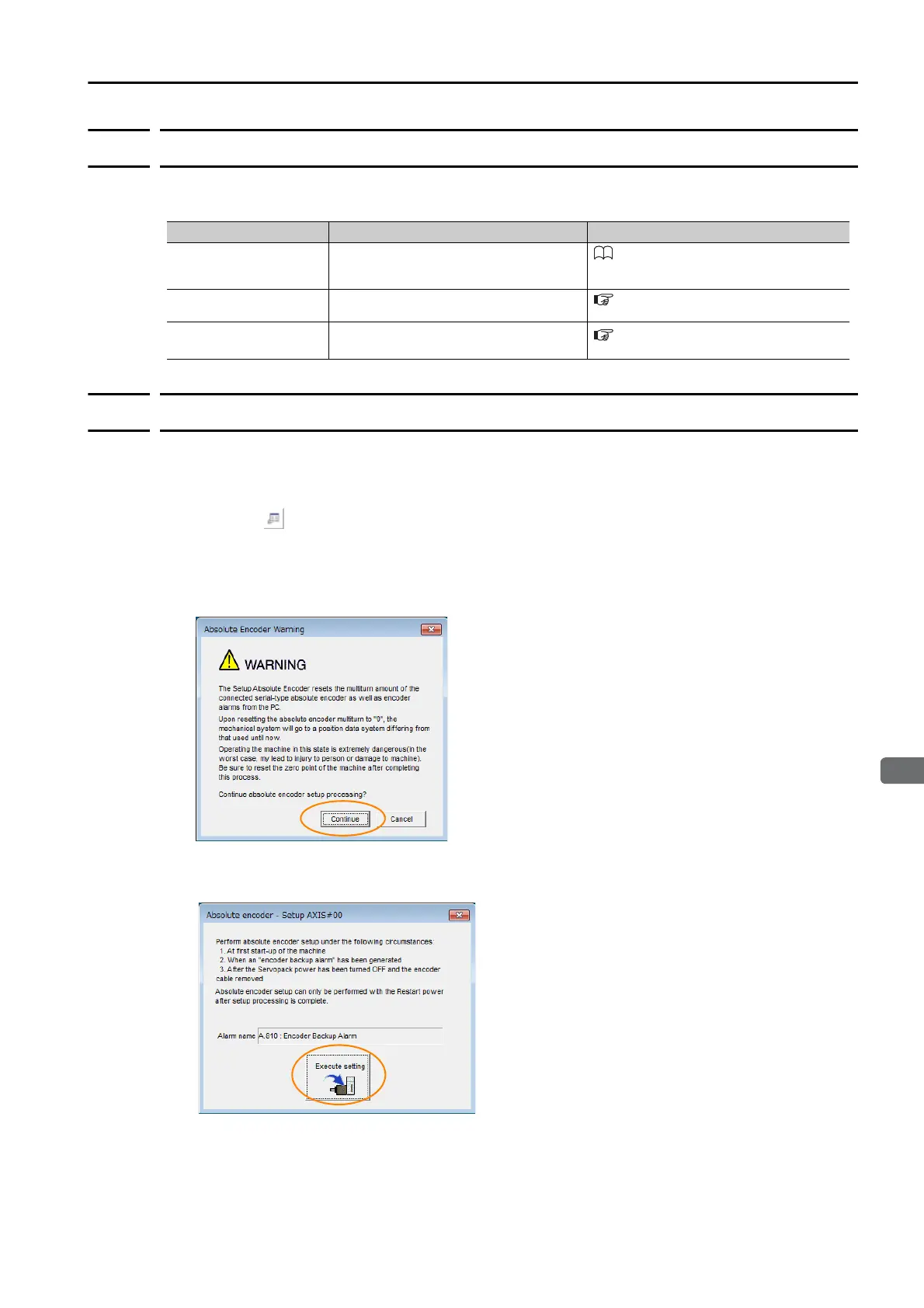

5.15.3 Applicable Tools
The following table lists the tools that you can use to reset the absolute encoder and the appli-
cable tool functions.
5.15.4 Operating Procedure
Use the following procedure to reset the absolute encoder.
1. Confirm that the servo is OFF.
2.
Click the Servo Drive Button in the workspace of the Main Window of the SigmaWin+.
3. Select Absolute Encoder Reset in the Menu Dialog Box.
The Absolute Encoder Reset Dialog Box will be displayed.
4. Click the Continue Button.
Click the Cancel Button to cancel resetting the absolute encoder. The Main Window will return.
5. Click the Execute setting Button.
The current alarm code and name will be displayed in the Alarm name Box.
Tool Function Reference
Digital Operator Fn008
Σ-7-Series Digital Operator Operating
Manual (Manual No.: SIEP S800001
33)
SigmaWin+ Setup - Absolute Encoder Reset
5.15.4 Operating Procedure on page
5-47
DeviceNet
communications
PnBA7 (object number 0x64, attribute
number 253)
Resetting the Absolute Encoder on
page 12-17
