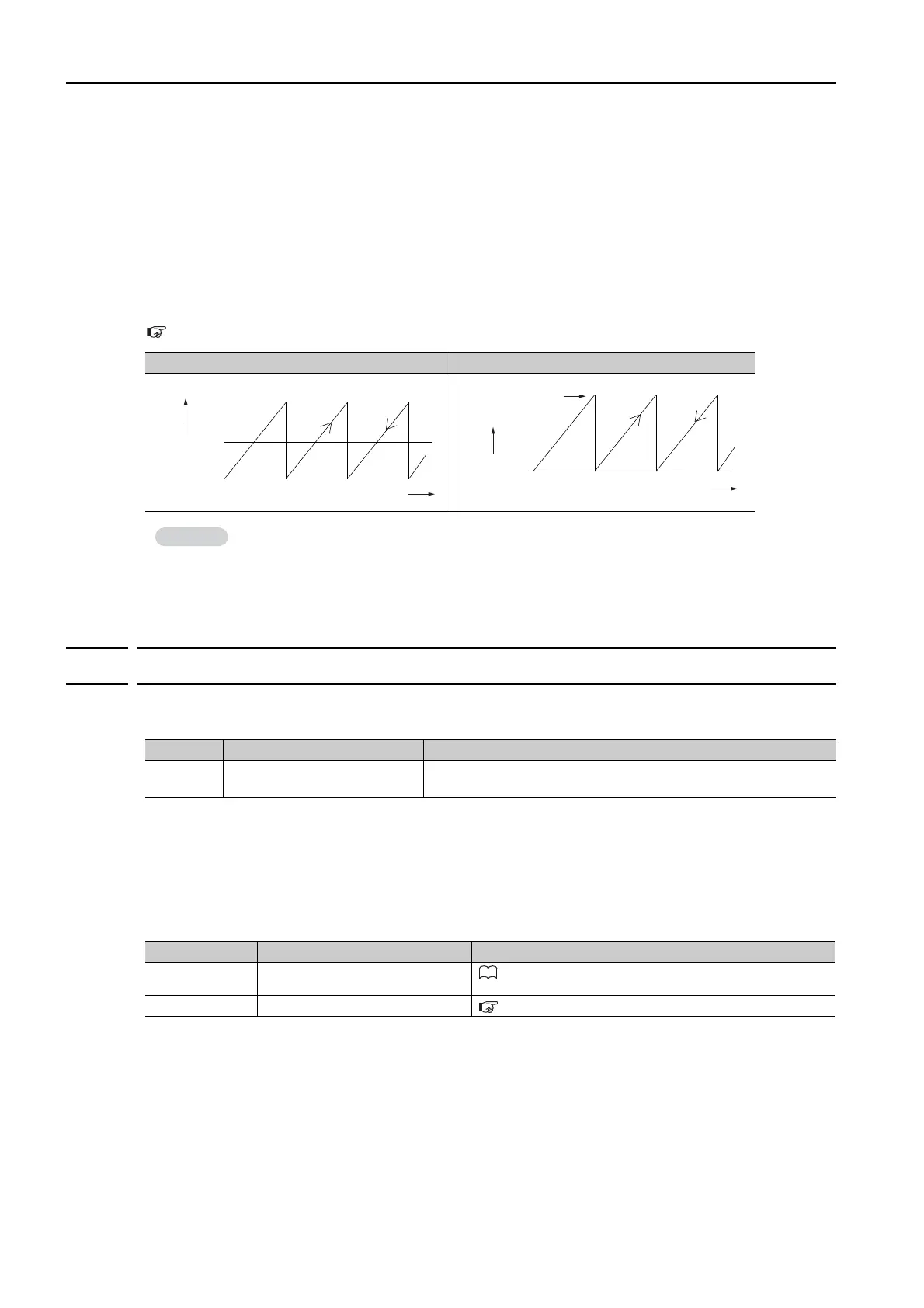

6.8 Absolute Encoders
6.8.3 Multiturn Limit Disagreement Alarm (A.CC0)
6-20
The data will change as shown below when this parameter is set to anything other than the
default setting.
• If the Servomotor operates in the reverse direction when the multiturn data is 0, the multiturn
data will change to the value set in Pn205.
• If the motor operates in the forward direction when the multiturn data is at the value set in
Pn205, the multiturn data will change to 0.
Set Pn205 to one less than the desired multiturn data.
If you change the multiturn limit in Pn205, an A.CC0 alarm (Multiturn Limit Disagreement) will be
displayed because the setting disagrees with the value in the encoder. Refer to the following
section for the procedure to change the multiturn limit settings in the encoder.
6.8.3 Multiturn Limit Disagreement Alarm (A.CC0) on page 6-20
6.8.3
Multiturn Limit Disagreement Alarm (A.CC0)
If you change the multiturn limit in Pn205 (Multiturn Limit), an A.CC0 alarm (Multiturn Limit Dis-
agreement) will be displayed because the setting disagrees with the value in the encoder.
If this alarm is displayed, use the following procedure to change the multiturn limit in the
encoder to the same value as the setting of Pn205.
Applicable Tools
The following table lists the tools that you can use to set the multiturn limit and the applicable
tool functions.
Default Setting Not Default Setting
The multiturn data will always be 0 in the following cases. It is not necessary to reset the
absolute encoder in these cases.
• When you use a single-turn absolute encoder
• When the encoder is set to be used as a single-turn absolute encoder (Pn002 = n.2)
Absolute encoder-related alarms (A.810 and A.820) will not occur.
+32,767
-32,768
0
Number of
rotations
Multiturn data
Forward
Reverse
0
Number of
rotations
Multiturn data
Setting of Pn205
Forward
Reverse
Display Name Meaning
A.CC0 Multiturn Limit Disagreement
Different multiturn limits are set in the encoder and SERVO-
PACK.
Tool Function Operating Procedure Reference
Digital Operator Fn013
Σ-7-Series Digital Operator Operating Manual (Manual
No.: SIEP S800001 33)
SigmaWin+ Setup
−
Multiturn Limit Setting
Operating Procedure on page 6-21
