3.3 Mounting Types and Orientation
3-4
3.3
Mounting Types and Orientation
The SERVOPACKs come in the following mounting types: base-mounted, rack-mounted, and
duct-ventilated types. Regardless of the mounting type, mount the SERVOPACK vertically, as
shown in the following figures.
Also, mount the SERVOPACK so that the front panel is facing toward the operator.
Note: Prepare two to four mounting holes for the SERVOPACK and mount it securely in the mounting holes. (The
number of mounting holes depends on the capacity of the SERVOPACK.)

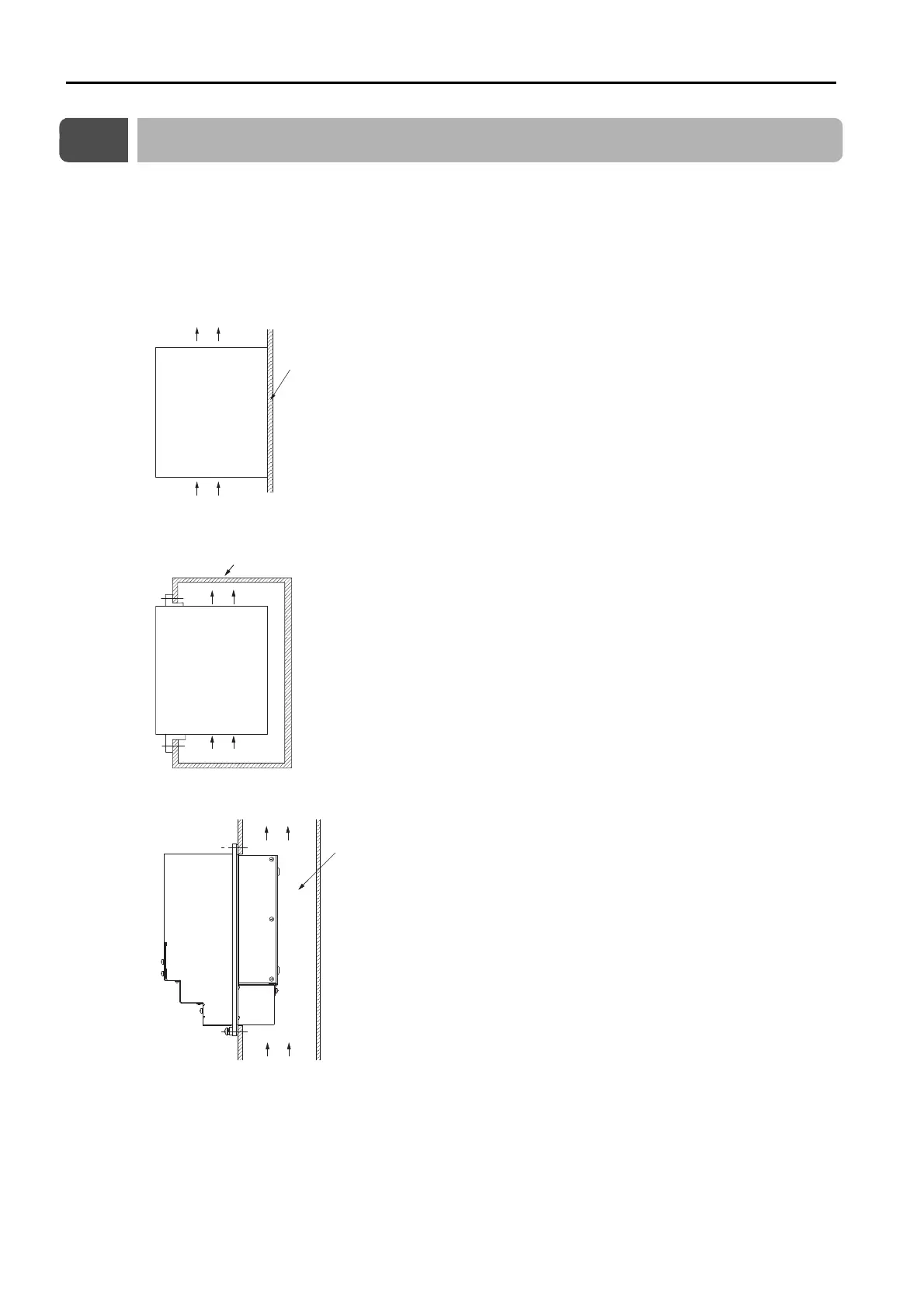

• Base-mounted SERVOPACK
• Rack-mounted SERVOPACK
• Duct-ventilated SERVOPACK
