Administrator’s Guide for SIP-T5 Series Smart Media Phones
502

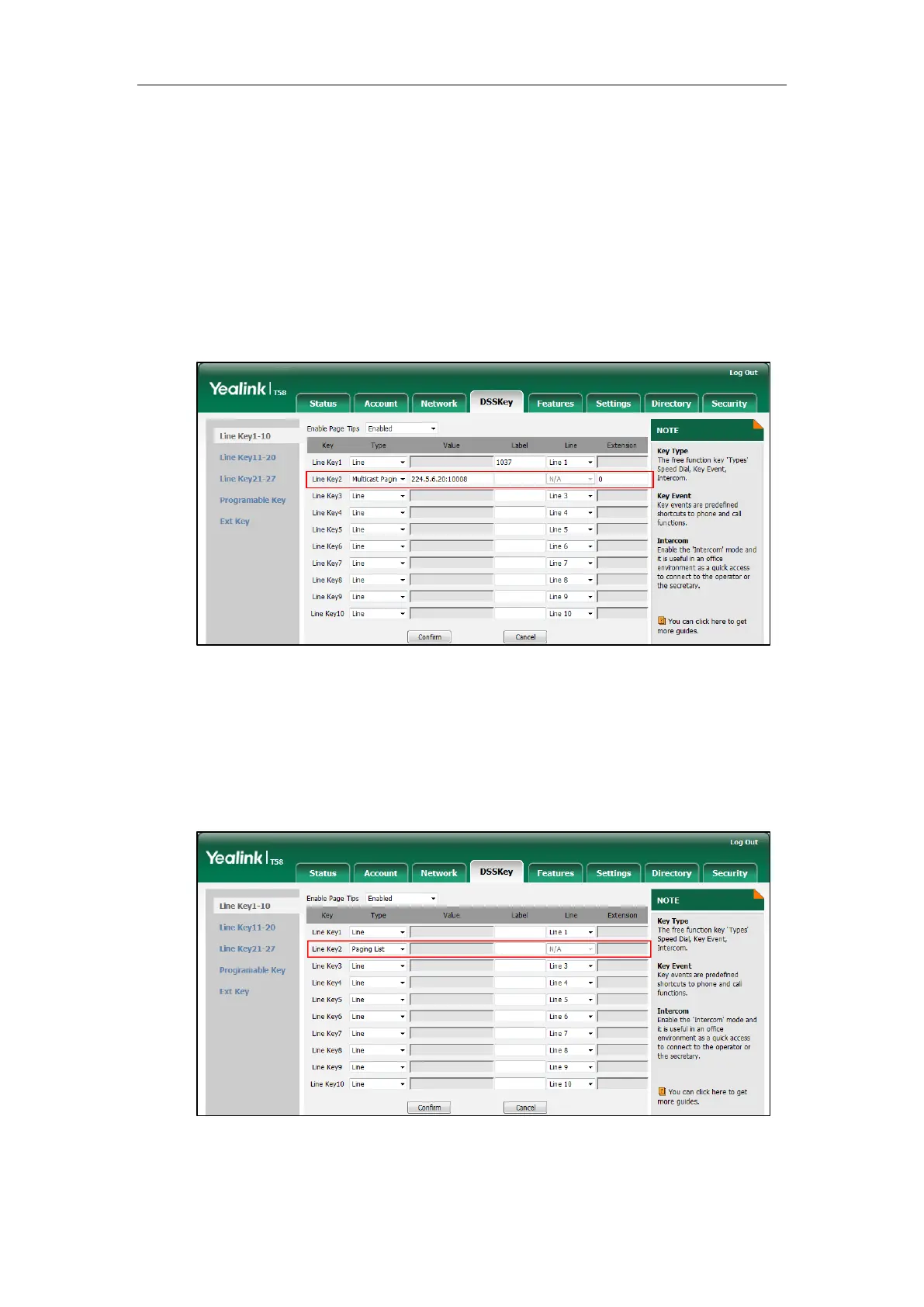

To configure a multicast paging key via web user interface:
1. Click on DSSKey->Line Key (or Ext Key).
2. In the desired DSS key field, select Multicast Paging from the pull-down list of Type.
3. Enter the multicast IP address and port number in the Value field.
The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255.
4. (Optional.) Enter the string that will appear on the touch screen in the Label field.
5. Enter the desired channel in the Extension field.
The valid channel ranges from 0 to 30.
6. Click Confirm to accept the change.
To configure a paging list key via web user interface:
1. Click on DSSKey->Line Key (or Programable Key/Ext Key).
2. In the desired DSS key field, select Paging List from the pull-down list of Type.
3. (Optional.) Enter the string that will appear on the touch screen in the Label field.
4. Click Confirm to accept the change.
