Administrator’s Guide for SIP-T5 Series Smart Media Phones
712
6. Select the desired limit mode from the pull-down list of Append Limit Mode.
7. Click Confirm to accept the change.
A dialog box pops up to prompt “Warning: Some settings you changed take effect when
you restart your machine! Do you want to reboot now?”. The configuration will take effect
after a reboot.
8. Click OK to reboot the phone.
The system log will be exported successfully to the desired FTP/TFTP server after a reboot.
9. Reproduce the issue.
To view the log file on your FTP/TFTP server
:
You can view the system log file in the root directory folder you have configured on the
FTP/TFTP server.

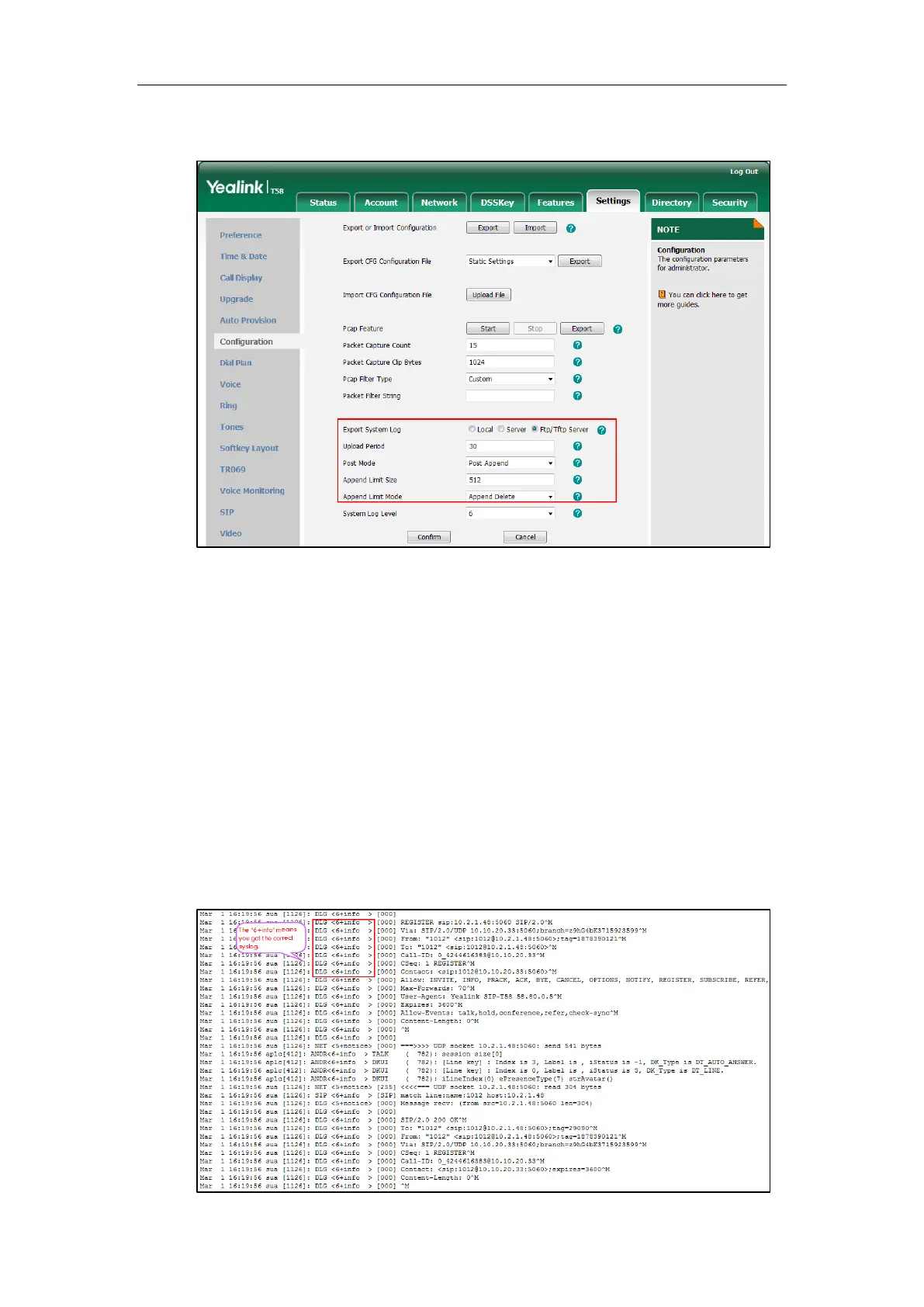

The following figure shows a portion of a <MAC>-boot.log (e.g., 0015659188f2-boot.log):
