3Com Baseline 2928 PWR Plus - Page 156

1-15

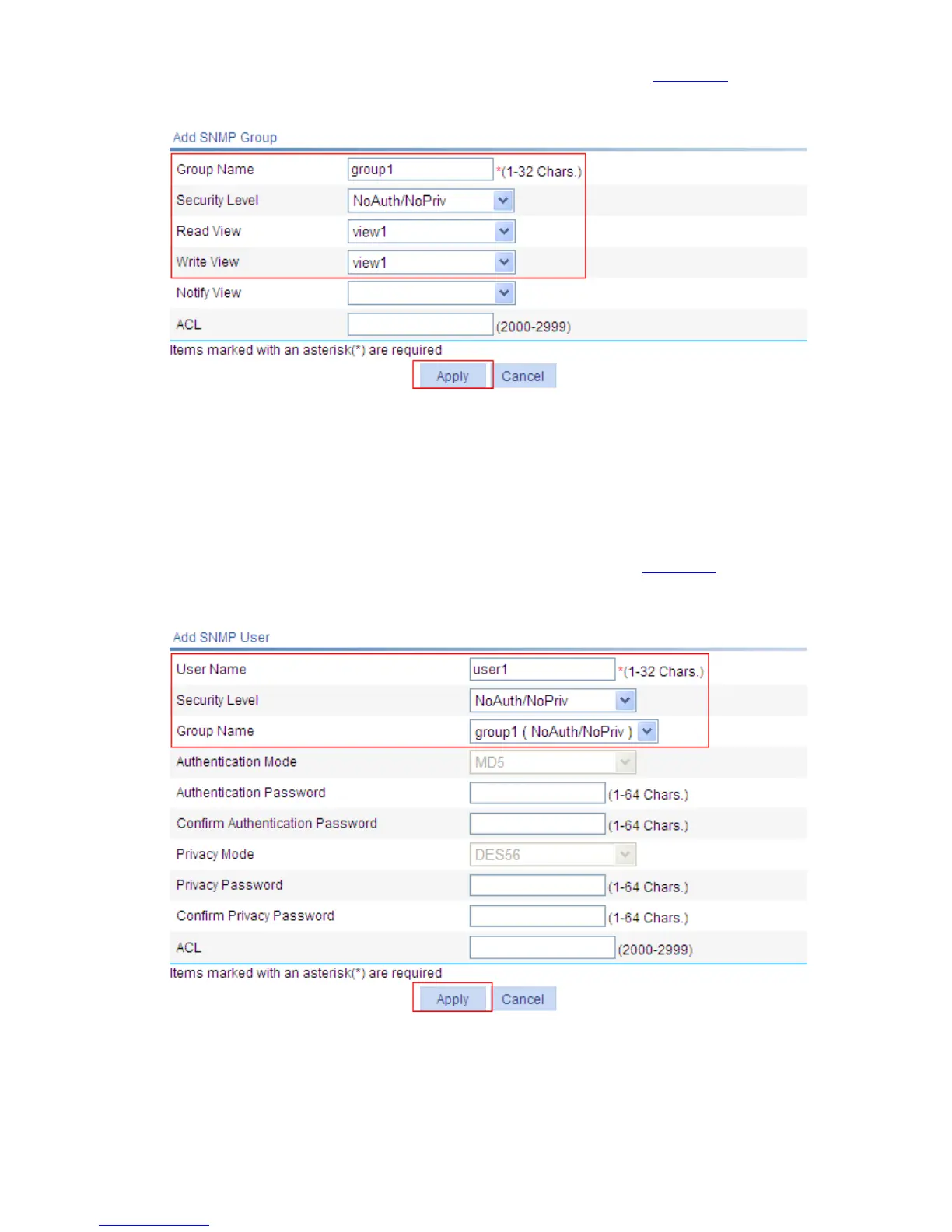

z Click the Group tab and then click Add to enter the page as shown in Figure 1-22.
Figure 1-22 Create an SNMP group
z Type group1 in the text box of Group Name.
z Select view1 from the Read View drop-down box.
z Select view1 from the Write View drop-down box.
z Click Apply.
# Configure an SNMP user
z Click the User tab and then click Add to enter the page as shown in Figure 1-23.
Figure 1-23 Create an SNMP user
z Type user1 in the text box of User Name.
z Select group1 from the Group Name drop-down box.
z Click Apply.
# Enable the agent to send SNMP traps.
