3Com Baseline 2928 PWR Plus - Page 173

1-11

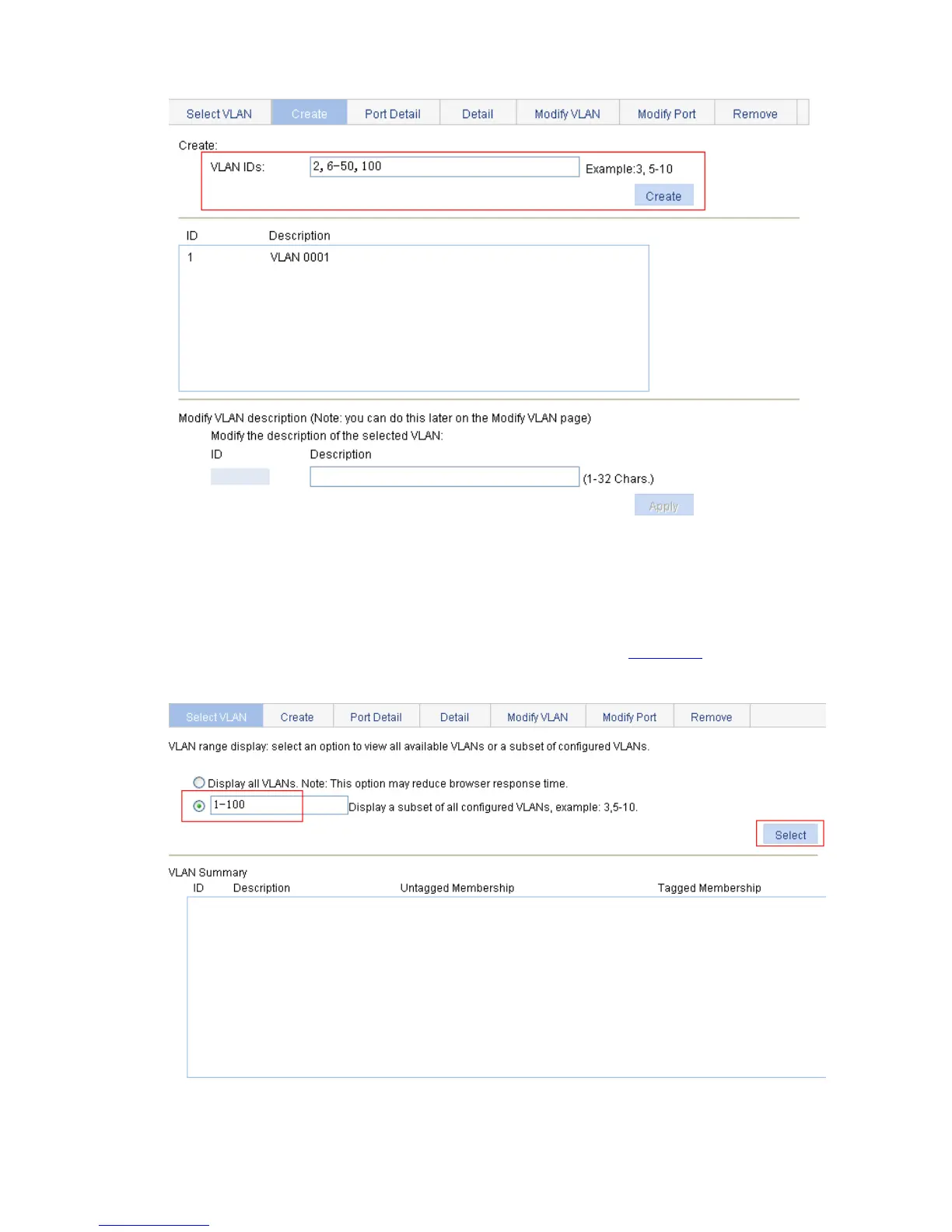

Figure 1-10 Create VLAN 2, VLAN 6 through VLAN 50, and VLAN 100
z Type in VLAN IDs 2, 6-50, 100.
z Click Apply.
# Assign GigabitEthernet 1/0/1 to VLAN 100 as an untagged member.
Click Select VLAN to enter the page for selecting VLANs, as shown in
Figure 1-11.
Figure 1-11 Set a VLAN range
z Select the radio button before Display a subnet of all configured VLANs and type 1-100 in the
text box.
