1-11
z Select Enable in the Voice VLAN security drop-down list. (You can skip this step, because the
voice VLAN security mode is enabled by default)
z Set the voice VLAN aging timer to 30 minutes.
z Click Apply.
# Configure voice VLAN on GigabitEthernet 1/0/1.
z Click the Port Setup tab to enter the page shown in Figure 1-8.

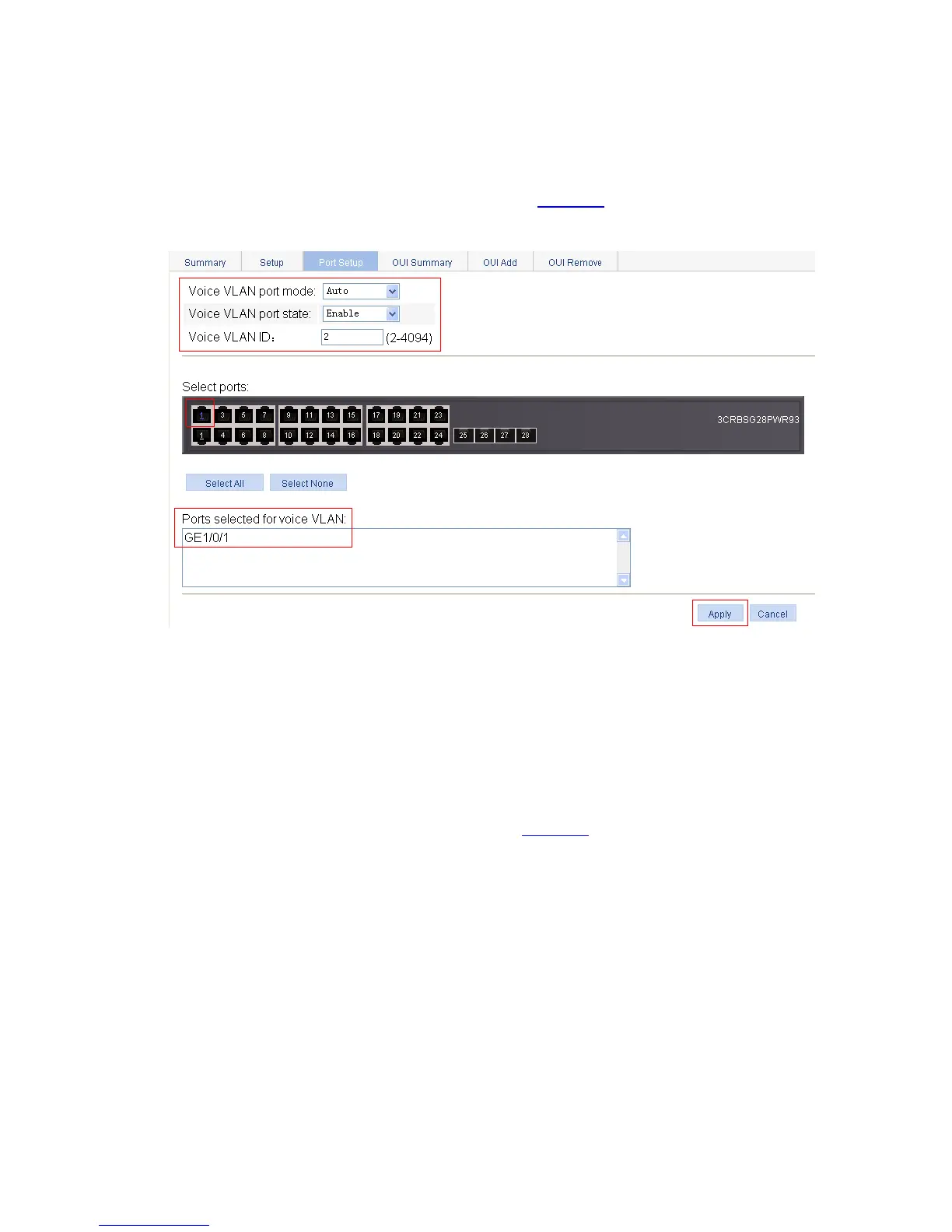

Figure 1-8 Configure voice VLAN on GigabitEthernet 1/0/1
z Select Auto in the Voice VLAN port mode drop-down list.
z Select Enable in the Voice VLAN port state drop-down list.
z Type in voice VLAN ID 2.
z Select GigabitEthernet 1/0/1 on the chassis front panel.
z Click Apply.
# Add OUI addresses to the OUI list.
z Click the OUI Add tab to enter the page shown in Figure 1-9.
