1-25

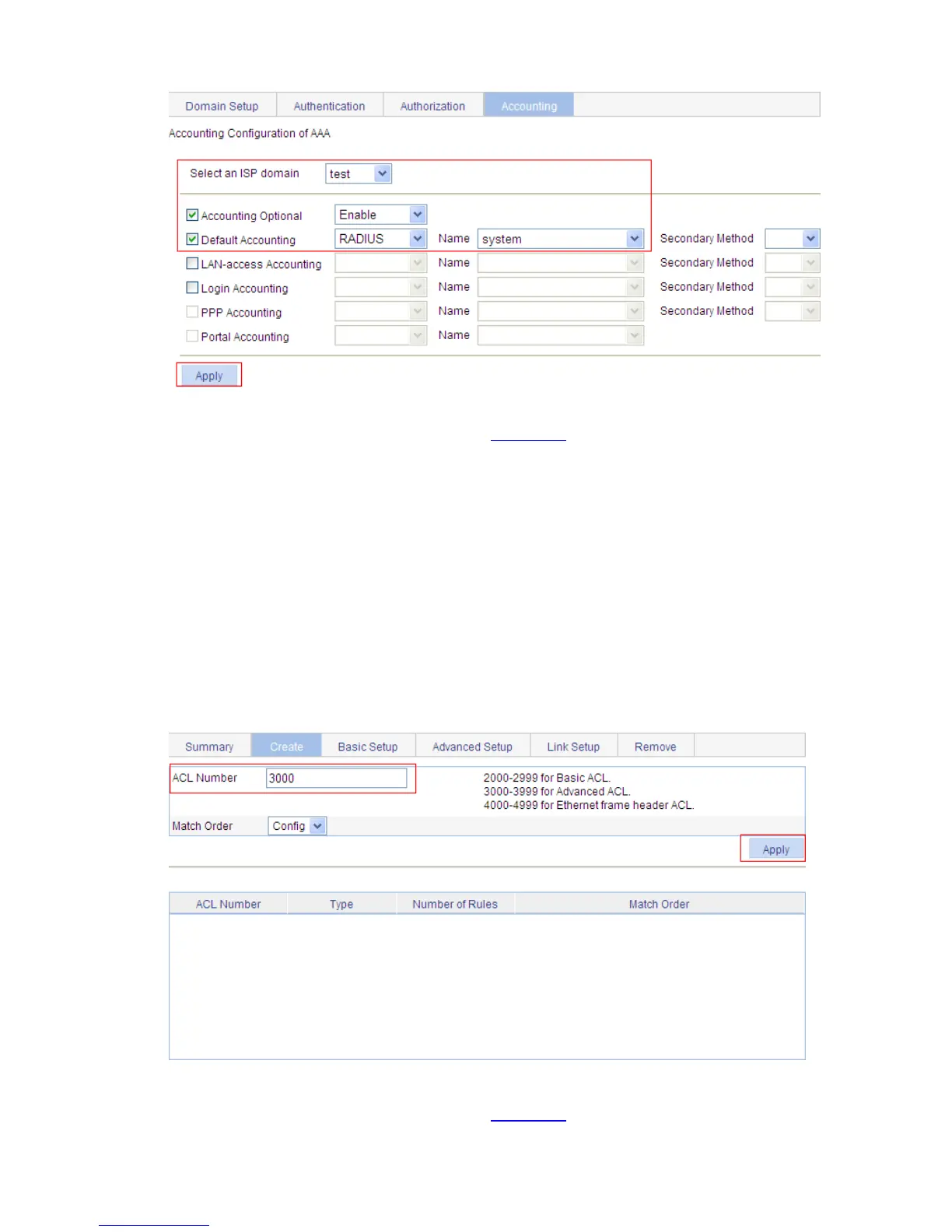

Figure 1-31 Configure the AAA accounting method for the ISP domain
Perform the following configurations, as shown in
Figure 1-31.
z Select the domain name test.
z Select the Accounting Optional checkbox, and then select Enable for this parameter.
z Select the Default Accounting checkbox and then select RADIUS as the accounting mode.
z Select system from the Name drop-down list to use it as the accounting scheme.
z Click Apply. The configuration progress dialog box appears.
z After seeing the prompt of configuration success, click Close to finish the operation.
4) Configure an ACL
# Create ACL 3000 that denies packets with destination IP address 10.0.0.1.
z From the navigation tree, select QoS > ACL IPv4 to enter the IPv4 ACL configuration page, and
then select the Create tab.
Figure 1-32 Create ACL 3000
Perform the following configurations, as shown in
Figure 1-32.
z Enter 3000 as the ACL number.
