ABB ACS880 - Page 43

RT
RT
RT

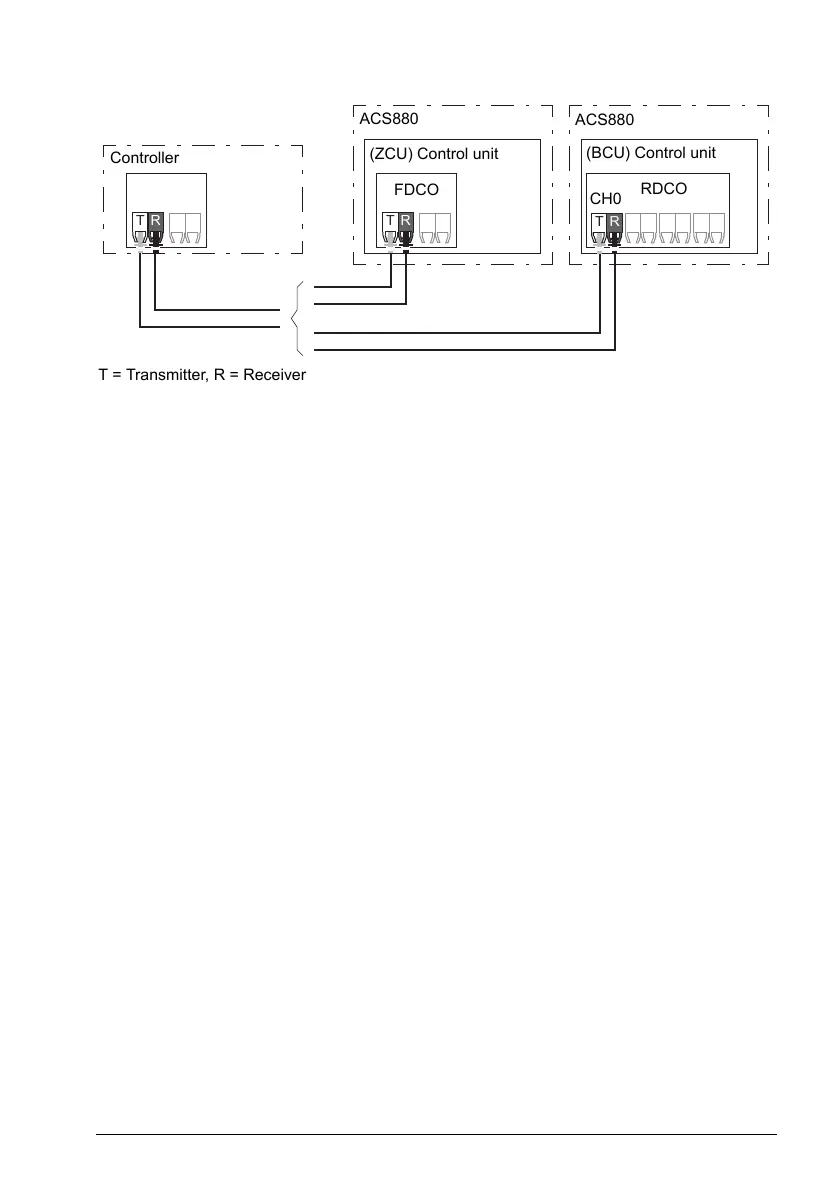

Controller
ACS880
ACS880
(ZCU) Control unit
(BCU) Control unit
FDCO
RDCO
CH0
T = Transmitter, R = Receiver
The external controller can also be wired to the D2D (RS-485) connector using shielded,
twisted-pair cable. The selection of the connection is made by parameter 60.51.
The transfer rate can be selected by parameter 60.56.
Program features 43
