ABB CL Series User Manual

Commissioning
106
1SVC 440 795 M1100

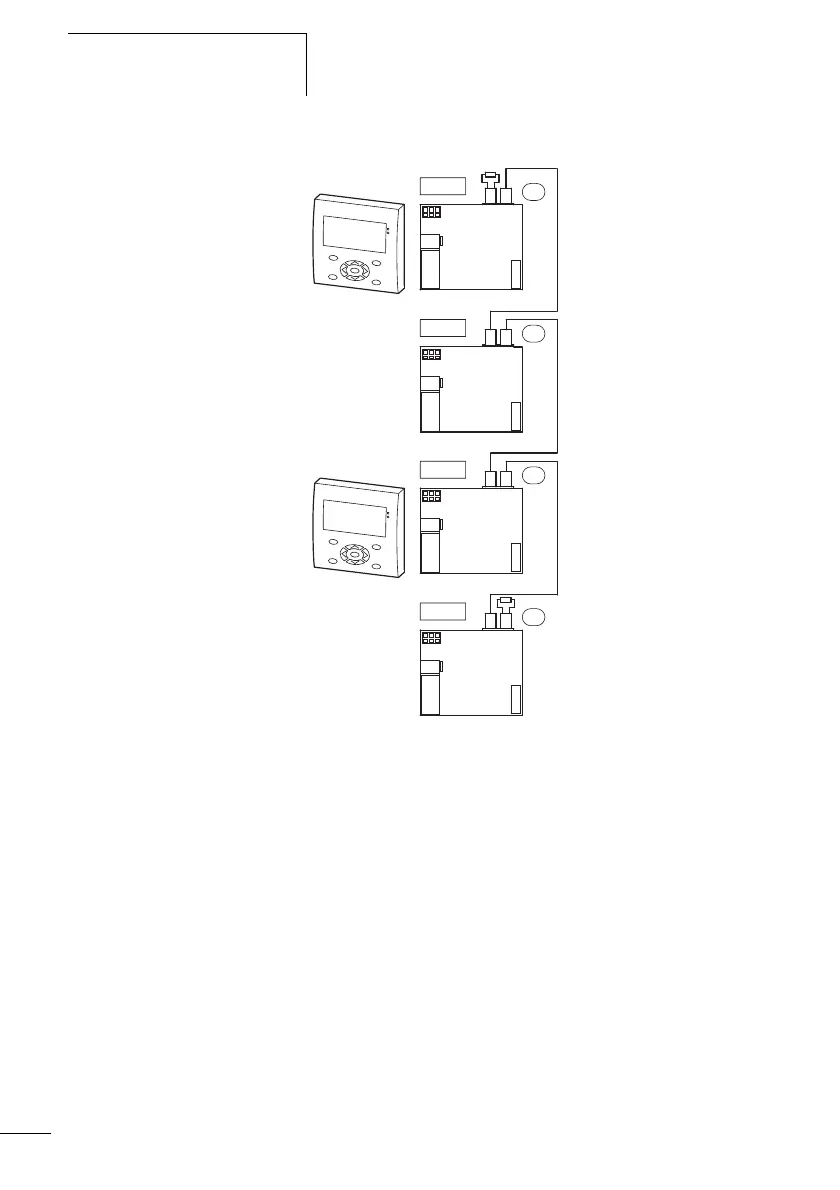

Figure: 76: Terminal mode in the CL-NET with two display
systems
In the above topology, two display systems can be operated
in the CL-NET terminal mode. Each display system device can
run Terminal mode with the other devices.
1
1
2
2
3
3
4
4
