ABB CL Series User Manual

Terminal mode operation
107
1SVC 440 795 M1100

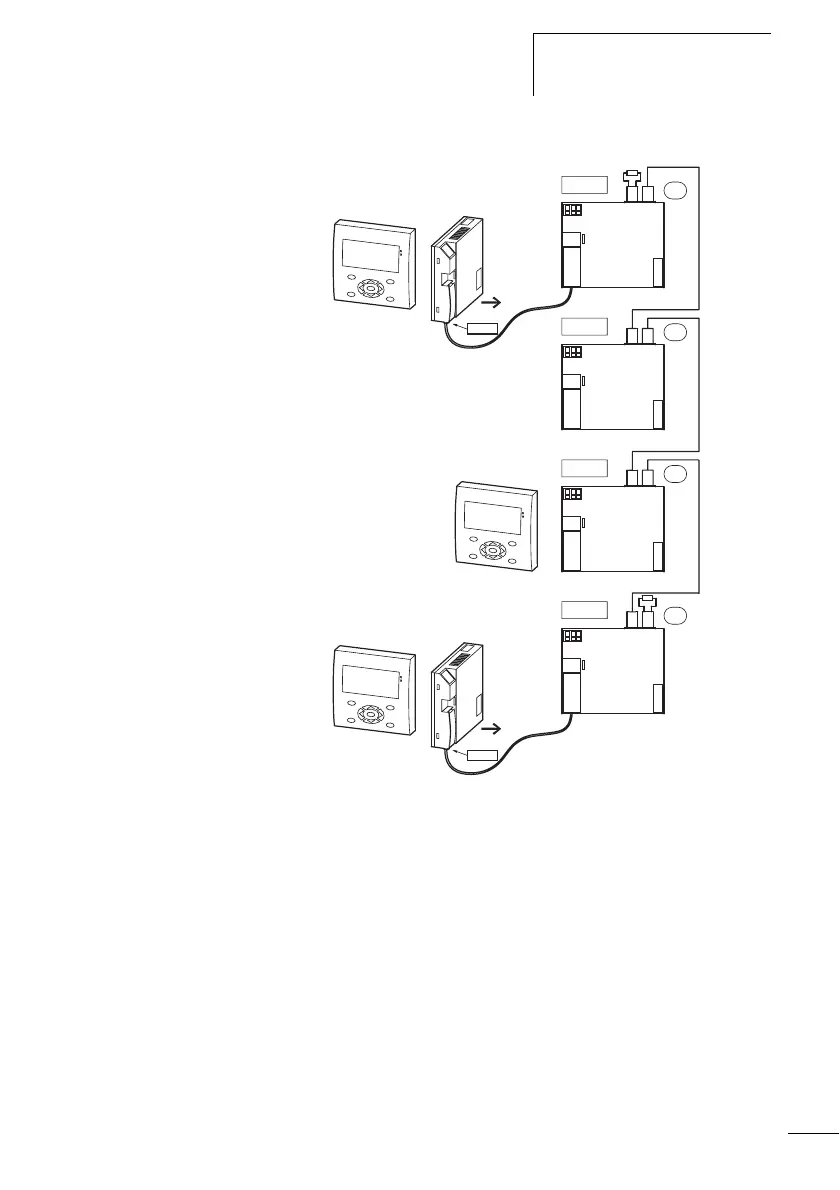

Figure: 77: Terminal mode in CL-NET as well as via two serial
interfaces
The above topology is a combination of CL-NET operation
and serial interface operation. Bear in mind the access rights
of the individual devices in CL-NET and in the corresponding
serial interface.
1
1
2
2
3
3
4
4
POW-Side
POW-Side

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
