ABB CL Series User Manual

Installation
32
1SVC 440 795 M1100

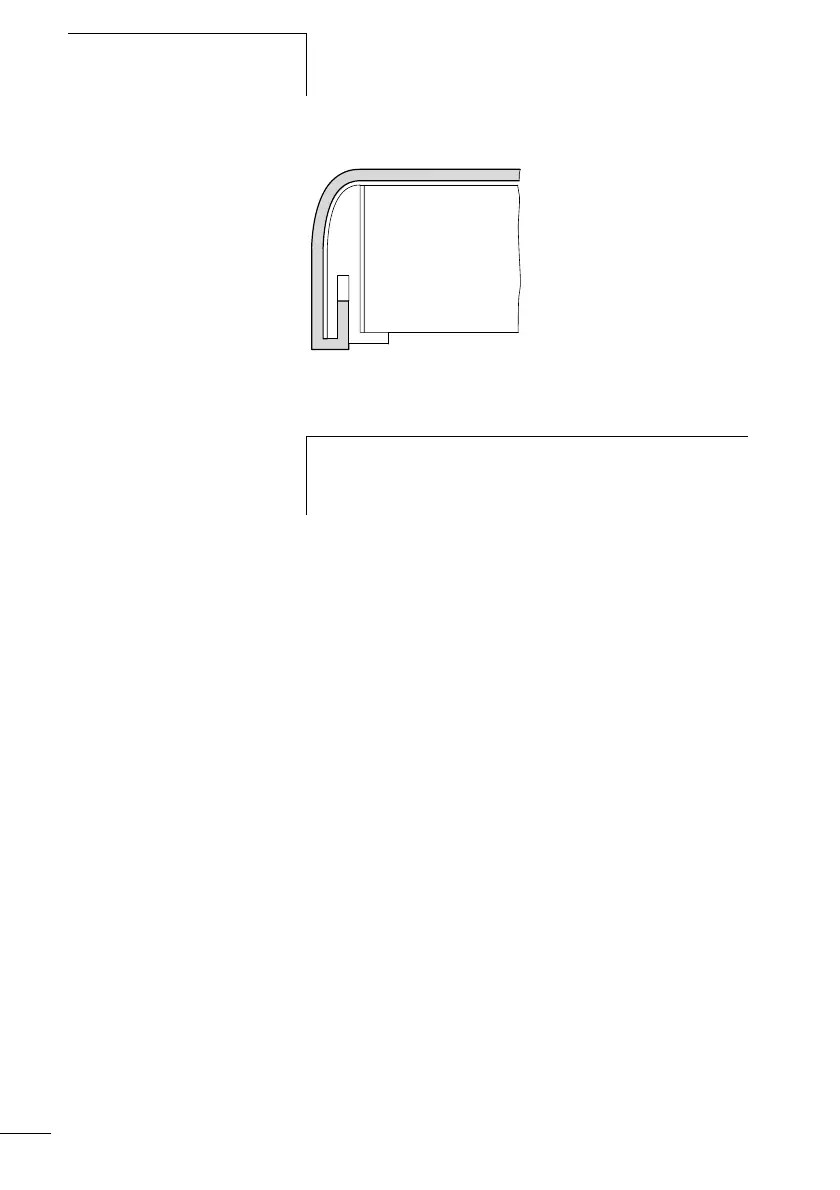

Figure: 6: Correct position of the CL-LAD.FD001 protective
cover
Mounting the protective cover CL-LAD.FD011
The CL-LAD.FD011 protective cover is provided for using the
device in aggressive environments. This protects the display
and the operating unit against mechanical damage or
destruction. Protection to IP65 is maintained.
The protective cover CL-LAD.FD011 can be opened so that
the operating unit can be used.
The protective cover CL-LAD.FD011 can be closed with a
sealing facility to provide protection against unauthorised
operation.
Fit the CL-LAD.FD001 protective cover before mounting the
display module.
h
Remove the display module in order to replace the
CL-LAD.FD001 protective cover. Replace the protective
cover and remount the device.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
