Mounting
33
1SVC 440 795 M1100

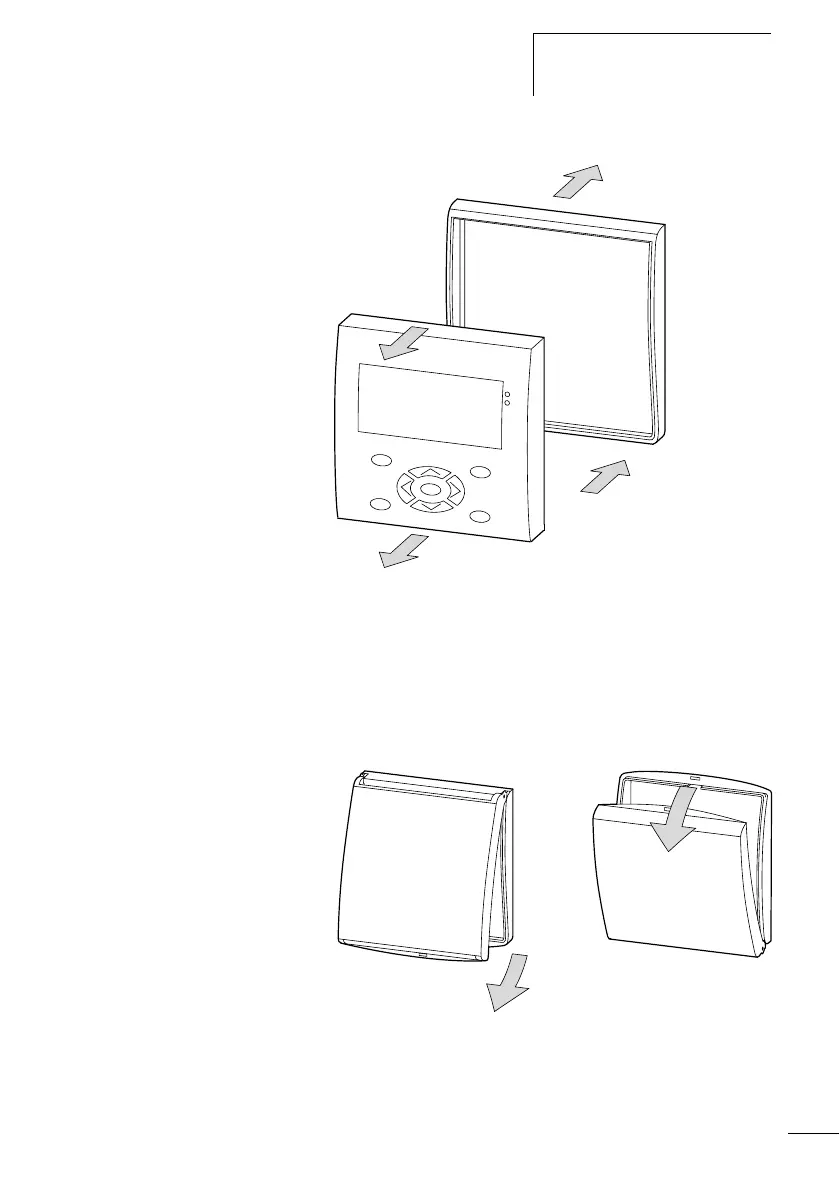

Figure: 7: Removing the front frame
X Remove the front frame as shown in the figure.
The protective cover CL-LAD.FD011 can be mounted in two
different positions. Choose the position that is most suitable
for the application at hand and your requirements.
Figure: 8: Position of the protective cover CL-LAD.FD011
