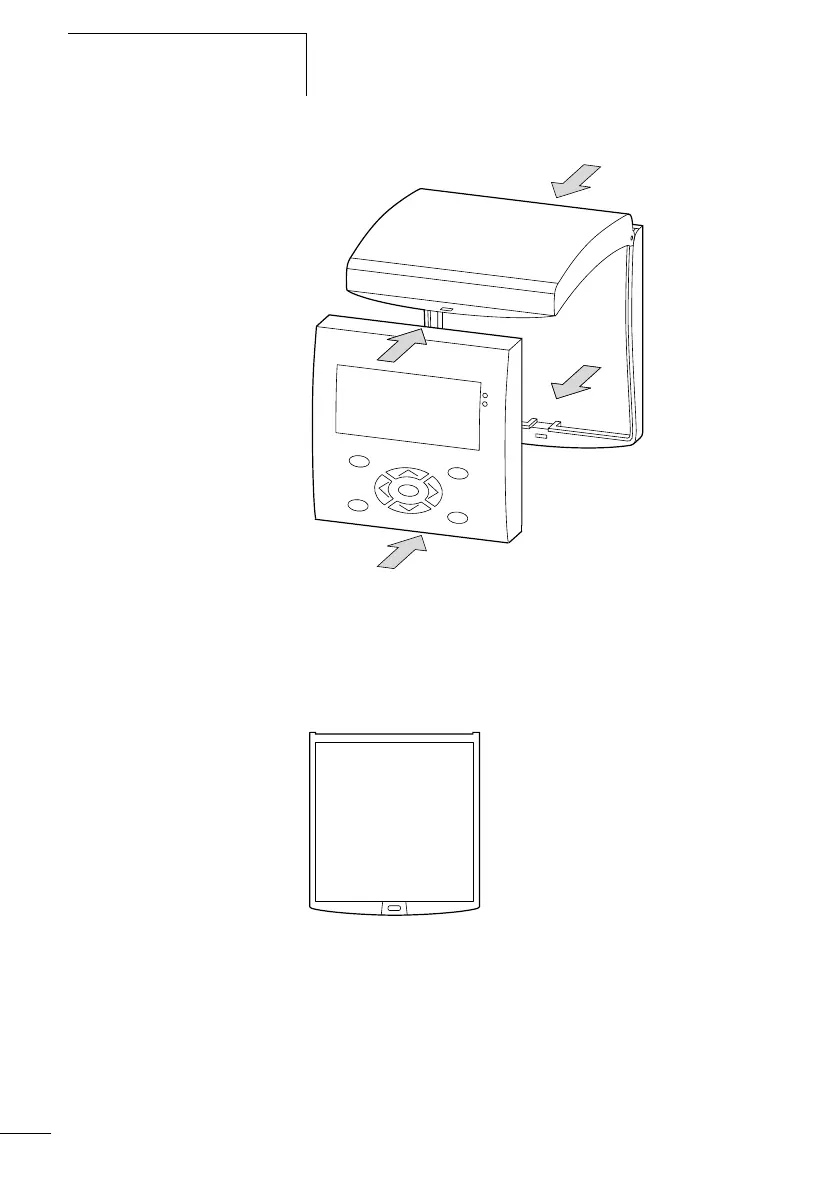

Figure: 9: Mounting the CL-LAD.FD011 protective cover
X Mount the protective cover CL-LAD.FD011 as shown in
the figure.
Sealing the protective cover CL-LAD.FD011
Figure: 10: Sealing the protective cover CL-LAD.FD011
The grip handle of the protective cover is provided with holes
that can be used in any mounting position. You can fit a wire
or similar material through these holes in order to seal the
cover. If the wire is provided with a lead seal, the cover is
sealed. The cover can then only be opened by breaking the
seal or the wire.

ABB CL Series Specifications

General

Manufacturer	ABB
Rated Control Supply Voltage (Us)	24 V DC
Mounting	DIN Rail
Category	Relays
Contact Configuration	SPDT
Coil Voltage	24 V DC
Operating Temperature	-40°C to +70°C
Electrical Life	100 Thousand Cycles
Output	Relay
