Installation
36
1SVC 440 795 M1100

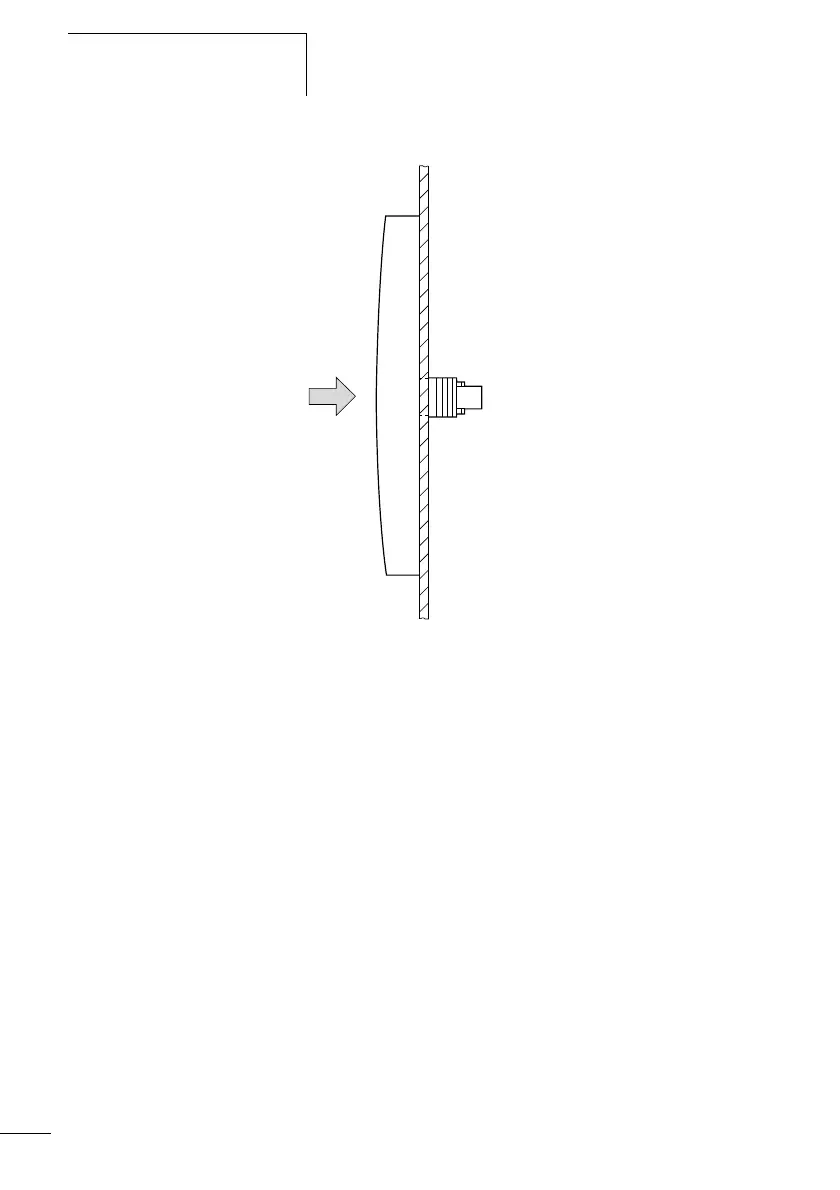

Figure: 12: Mounting display module
The CL-LAD.FD001 or CL-LAD.FD011 protective cover must
be fitted beforehand!
X Fit the display module in the fixing holes provided.
